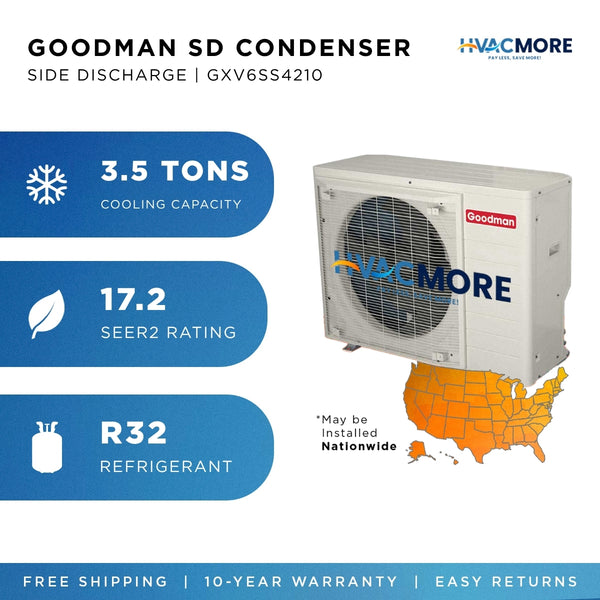

Goodman 3.5 Ton Up to 17.2 SEER2 Variable-Speed Inverter AC Condenser Side Discharge Cooling Only R-32 Southeast & North
SKU: Model: GXV6SS4210
Couldn't load pickup availability
Free Shipping
$ Price Match
Ships in 1-2 Business Days
Delivers in 1-5 Business Days
-
Description
Where the GXV6SA series ends, the GXV6SS series goes further — a 3.5-ton inverter cooling exclusively in this lineup. The Goodman GXV6SS4210 is the first tonnage unique to the GXV6SS series — a 3.5-ton, up to 17.2 SEER2 variable-speed inverter AC condenser built for larger homes in the Southeast and North that need serious cooling capacity from the most advanced platform available. Upgraded to a 1⅛" suction line for the demanding airflow of larger tonnage and featuring front and back sealing service valves for the most flexible field servicing access available in this series.
Why Homeowners and Contractors Choose the GXV6SS4210:
- Up to 17.2 SEER2 efficiency — maximum energy savings for 3.5-ton systems
- 3.5 Ton / 41,000 BTU cooling capacity — ideal for larger homes between 1,800–2,100 sq ft
- Variable-speed inverter swing compressor — Variable / Infinite Stage — continuously modulates for exact comfort, efficiency, and quiet operation at demanding 3.5-ton loads
- Selectable Quiet Mode — as low as 45 dBA — remarkably quiet even at 3.5-ton capacity
- Field-selectable Boost Mode — full inverter output during peak summer demand
- Electronic Expansion Valve (EEV) — precise refrigerant metering for optimized 3.5-ton performance
- Auto-control superheat management
- Side discharge design — flexible installation for constrained spaces
- Custom Ivory White cabinet
- Southeast & North regional designation — exclusively available in this series for 3.5-ton capacity
- Front AND back sealing service valves — upgraded dual-access service valves on 3.5–5 ton units for maximum field servicing flexibility
- Upgraded 1⅛" suction line — handles the higher refrigerant flow demands of 3.5-ton operation
- ComfortNet compatible — smart system integration
- Only two low-voltage wires in communicating mode
- Compatible with Goodman GTST Connected Thermostat
- Proprietary 7-segment LED display with fault code storage
- Proprietary Inside Intelligence diagnostics
- Digitally commutated condenser fan motor (0.36 HP) — upgraded higher-powered fan motor for 3.5–5 ton airflow demands
- High-density compressor sound blanket
- Coil and ambient temperature sensors + suction pressure transducer
- R-32 refrigerant — one-third lower GWP than R-410A
- Factory charged for 15 ft of ⅜" liquid line
- Cooling operation range 0°F to 115°F
- ZAM® steel bottom frame and legs
- Heavy-gauge galvanized-steel Ivory White cabinet — 500-hour salt-spray tested
- Hurricane-ready construction — meets 2023 Florida Building Code
- AHRI Certified and ETL Listed
- Made in the USA
⚠️ Side discharge — review installation manual before purchasing.
⚠️ Communicating system — GTST thermostat required for full functionality.
⚠️ R-32 — compatible indoor unit with RDS required. Not compatible with R-410A.
⚠️ Field-installed bi-flow filter drier required.
⚠️ Suction line adapter — installer must supply ⅞" to 1⅛" adapters for suction line connections on this unit.
Specs:
- Tonnage: 3.5 Ton
- Max Cooling: 41,000 BTU/h
- SEER2: Up to 17.2
- Compressor: Variable-Speed Inverter Swing (Variable / Infinite Stage)
- Refrigerant: R-32
- Expansion Device: EEV
- Fan Motor: Digitally Commutated (0.36 HP)
- Valve Type: Front AND Back Sealing
- Voltage: 208/230V — 1Ph — 60Hz
- MCA: 31.8 Amps
- Max Breaker (MOP): 35 Amps
- Liquid Line: ⅜" O.D.
- Suction Line: 1⅛" O.D.
- Refrigerant Charge: 100 oz
- Cabinet: Custom Ivory White — Side Discharge
- Cooling Range: 0°F to 115°F
- Unit Weight: 163 lbs
- Region: Southeast & North
- Operation: Cooling Only
Warranty: 10-year unit replacement + 10-year parts warranty with online registration within 60 days.
-
