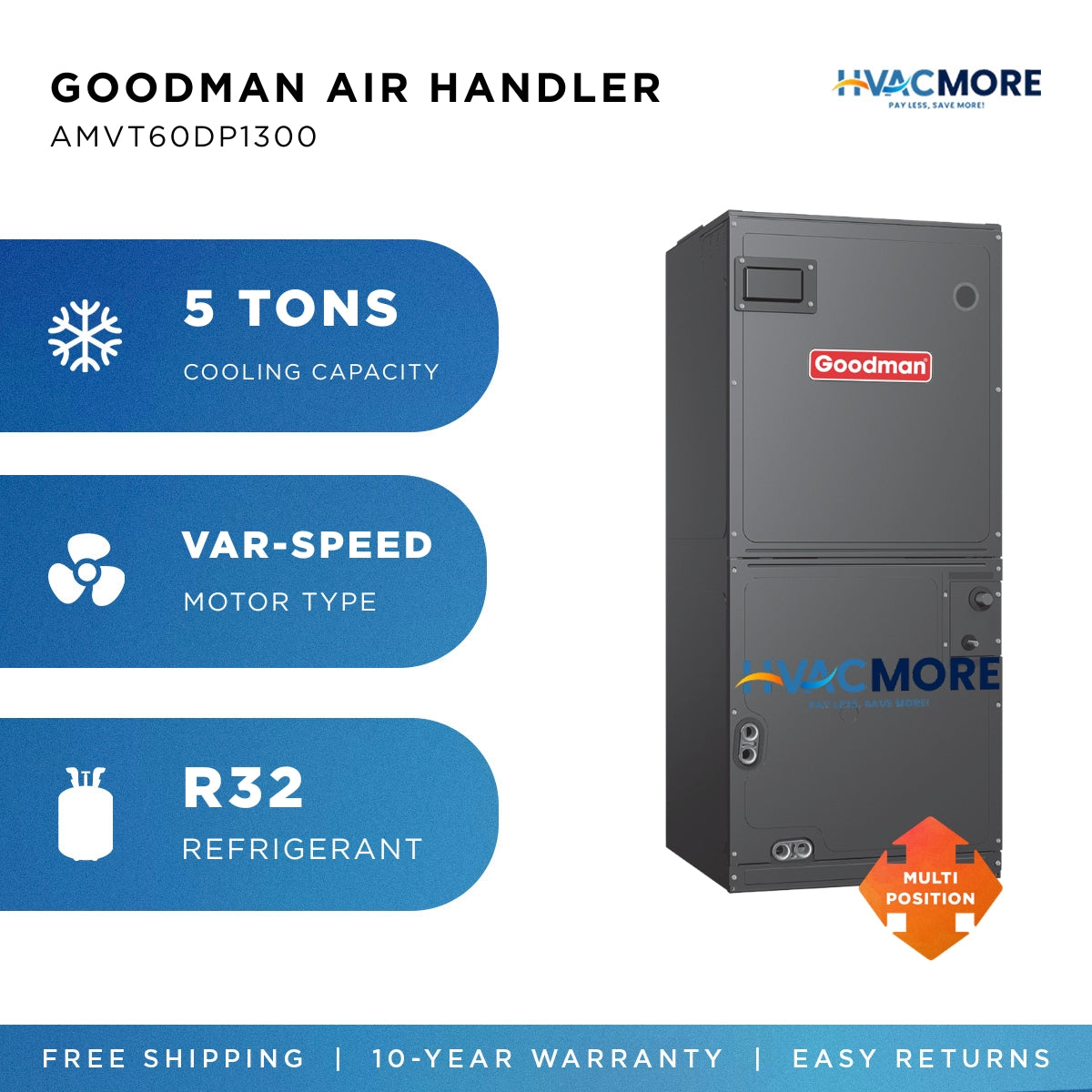

Goodman 5 Ton 24.5" Variable-Speed Multi-Position Air Handler with TXV & ComfortBridge R-32

The largest air handler in the AMVT lineup, the Goodman AMVT60DP1300 delivers 5 tons of variable-speed capacity in a 24.5" cabinet — built for the biggest residential loads or light commercial applications. It carries the same ComfortBridge diagnostics and precise TXV metering as the rest of the AMVT series, scaled up to handle serious airflow demands.

Key features that matter in the field

• Variable-speed ECM blower motor built for high-capacity constant CFM delivery
• ComfortBridge Technology with automatic airflow/tonnage configuration and Bluetooth diagnostics
• Internal factory-installed TXV for precise high-capacity refrigerant metering
• All-aluminum evaporator coil with long-life R-32 sensor
• Adjustable low-CFM fan-only operation for efficient circulation
• Rigid SmartFrame cabinet with repositionable coil mounting track
• Galvanized, embossed cabinet; DecaBDE-free drain pan with secondary drain
• Fault recall of the six most recent faults
• Multi-position: upflow, downflow, or horizontal

Regional readiness and important compatibility notes

• R-32 only — not for use with R-410A systems
• Requires a matched 5-ton R-32 outdoor unit for full warranty and ComfortBridge functionality
• Suited to homes or light commercial spaces in the ~2,500–3,000 sq ft range

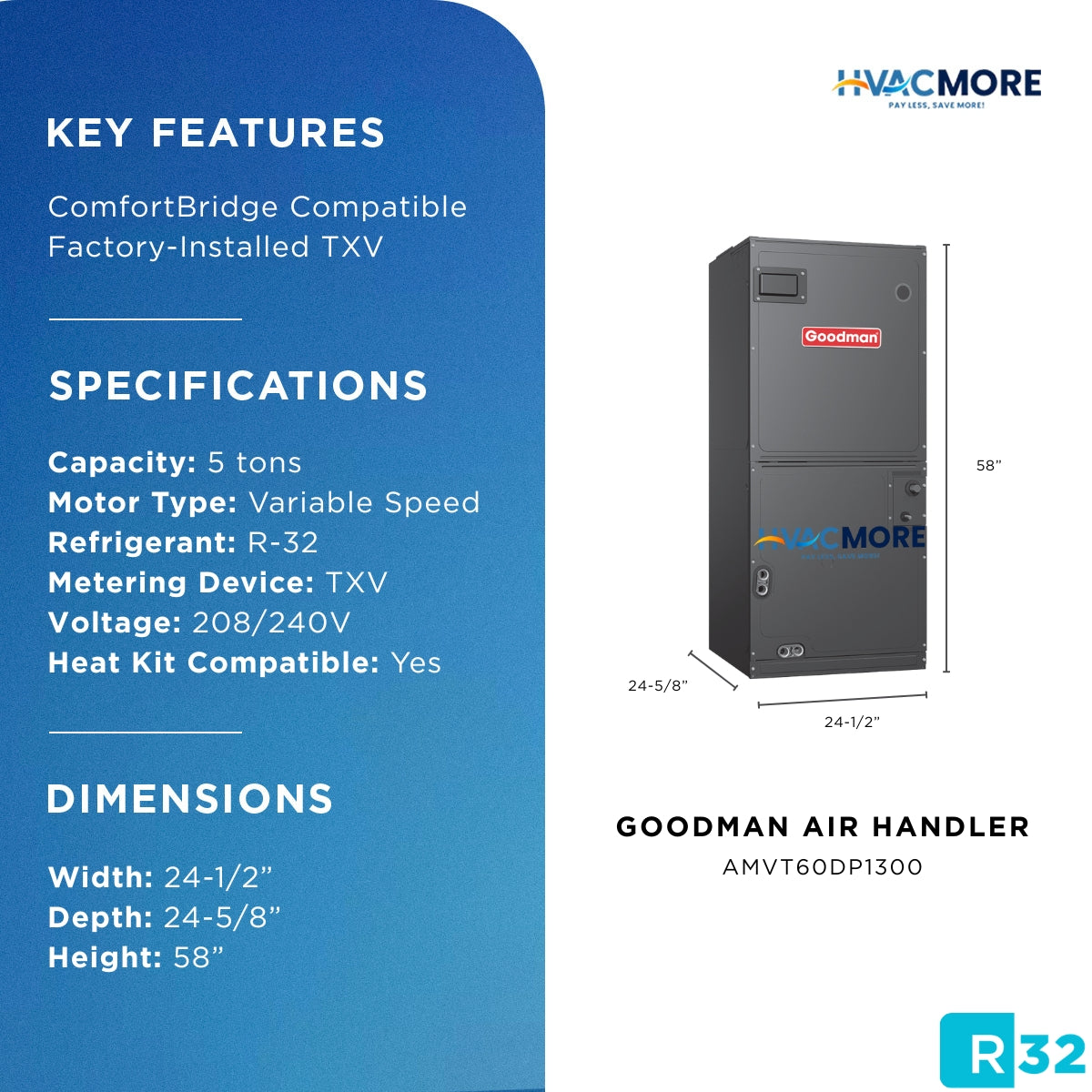

Specs at a glance

• Tonnage: 5 Ton
• Cabinet Width: 24.5"
• Refrigerant: R-32
• Metering Device: Internal TXV
• Motor: Variable-Speed ECM
• Line Connections: 3/8" liquid, 3/4" suction
• Warranty: 10-year limited parts warranty with registration within 60 days
• AHRI Certified, ETL Listed

Why this matters for you When the job calls for maximum capacity, the AMVT60DP1300 gives you variable-speed comfort at scale — steady humidity control and quieter operation even at 5 tons, in a cabinet built for the largest furnace and air handler platforms.
