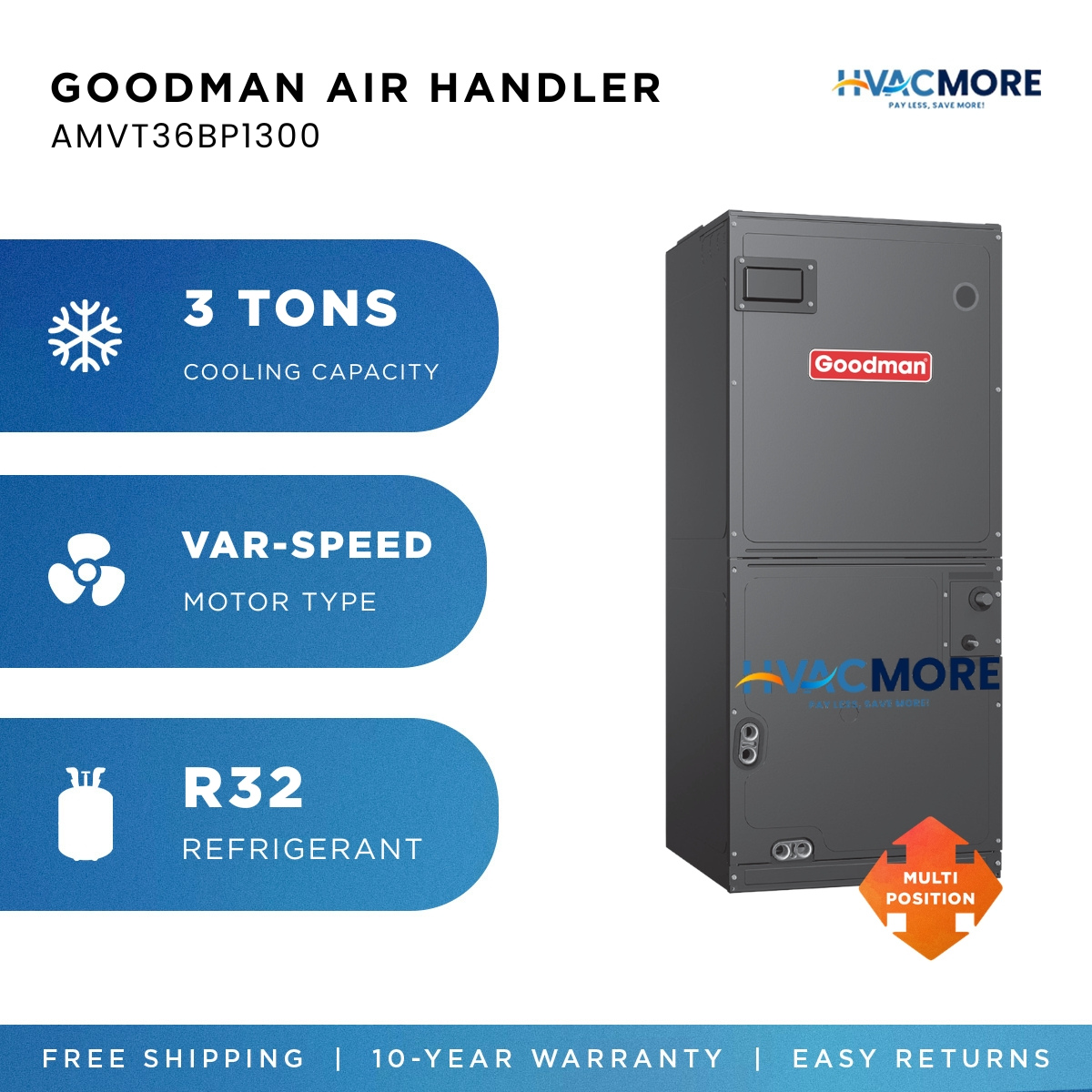

Goodman 3 Ton 17.5" Variable-Speed Multi-Position Air Handler with TXV & ComfortBridge R-32

The Goodman AMVT36BP1300 brings variable-speed performance to one of the most common residential sizing calls — 3 tons — in a space-saving 17.5" cabinet. It's built for techs who want to offer the comfort benefits of variable-speed airflow without needing a wider mechanical closet to fit it.

Key features that matter in the field

• Variable-speed ECM blower motor maintains constant CFM across static pressure changes
• ComfortBridge Technology with automatic airflow/tonnage configuration and Bluetooth diagnostics
• Internal factory-installed TXV for precise cooling and heat pump metering
• All-aluminum evaporator coil with factory-installed R-32 sensor
• Adjustable low-CFM fan-only operation
• Rigid SmartFrame cabinet with repositionable coil mounting track
• Galvanized, embossed cabinet with DecaBDE-free, low-retention drain pan and secondary drain
• Fault recall of the six most recent faults
• Multi-position: upflow, downflow, or horizontal

Regional readiness and important compatibility notes

• R-32 only — not for use with R-410A systems
• Pair with a matched R-32 outdoor unit for full warranty coverage and ComfortBridge functionality
• Suited to homes in the ~1,500–1,800 sq ft range

Specs at a glance

• Tonnage: 3 Ton
• Cabinet Width: 17.5"
• Refrigerant: R-32
• Metering Device: Internal TXV
• Motor: Variable-Speed ECM
• Line Connections: 3/8" liquid, 3/4" suction
• Warranty: 10-year limited parts warranty with registration within 60 days
• AHRI Certified, ETL Listed

Why this matters for you A 3-ton coil is the most common call in the field, and the AMVT36BP1300 lets you deliver variable-speed comfort on that job without needing to widen the mechanical closet to make it fit.
