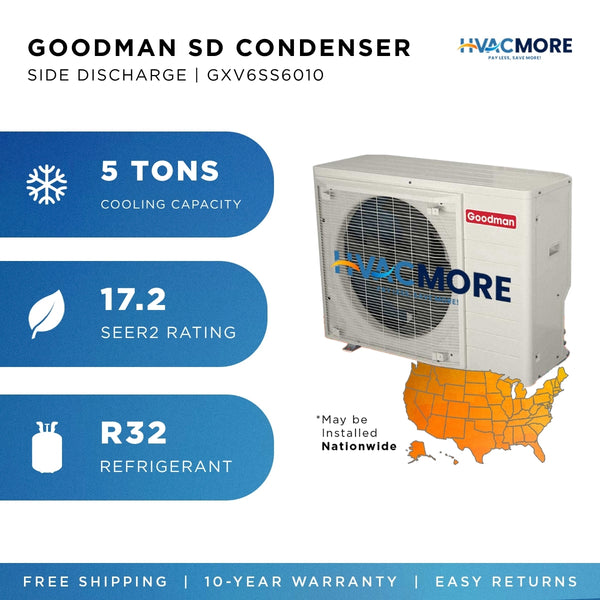

Goodman 5 Ton Up to 17.2 SEER2 Variable-Speed Inverter Side Discharge R-32 Southeast & North

Model: GXV6SS6010

$3,486.00
$3,486.00
Sale Sold out
Free Shipping Free Shipping
$ Price Match $ Price Match
Ships in 1-2 Business Days Ships in 1-2 Business Days
Delivers in 1-5 Business Days Delivers in 1-5 Business Days
View full details

  • The flagship of the GXV6SS lineup — maximum inverter for the largest homes in the Southeast and North. The Goodman GXV6SS6010 is a 5-ton, up to 17.2 SEER2 variable-speed inverter delivering 53,500 BTU/h of output — the most powerful unit in the entire GXV6S series. With the upgraded 0.36 HP digitally commutated fan motor, dual front-and-back sealing service valves, 1⅛" suction line, and 118 oz refrigerant charge for longer line sets — this unit is engineered to handle the highest residential and light commercial cooling demands with the intelligence of true variable-speed operation. No other single-stage or two-stage 5-ton condenser in the Goodman lineup comes close to this level of cooling sophistication.

    Why Homeowners and Contractors Choose the GXV6SS6010:

    • Up to 17.2 SEER2 efficiency — Goodman's highest efficiency rating even at 5-ton capacity
    • 5 Ton / 53,500 BTU cooling capacity — the most powerful unit in the GXV6SS lineup, ideal for large homes and light commercial spaces up to 2,500–3,000 sq ft
    • Variable-speed inverter swing compressor — Variable / Infinite Stage — continuously modulates for precise cooling control at the most demanding 5-ton residential loads
    • Selectable Quiet Mode — as low as 45 dBA — extraordinary quiet performance for a 5-ton unit
    • Field-selectable Boost Mode — maximum inverter compressor speed for peak summer demand
    • Electronic Expansion Valve (EEV) — precise refrigerant metering across all 5-ton operating conditions
    • Auto-control superheat management — intelligent charge management for demanding 5-ton installations
    • Side discharge design — unique side-air discharge for flexible installation even in large-capacity applications
    • Custom Ivory White cabinet — premium distinction from standard gray condensers
    • Southeast & North regional designation — the only 5-ton inverter side-discharge AC condenser available in this Goodman regional series
    • Front AND back sealing service valves — dual-access service valves for maximum field servicing flexibility on this high-capacity unit
    • Upgraded 1⅛" suction line — engineered for the high refrigerant flow demands of 5-ton operation
    • Largest refrigerant charge in the series — 118 oz — optimized for longer line sets at 5-ton capacity
    • ComfortNet compatible — full smart system integration across the largest installations
    • Only two low-voltage wires in communicating mode — simplified installation wiring
    • Compatible with Goodman GTST Connected Thermostat — full smart home control and remote access
    • Proprietary 7-segment LED display with fault code storage — fast, efficient service on large-capacity systems
    • Proprietary Inside Intelligence diagnostics — proactive monitoring critical for high-demand 5-ton applications
    • Digitally commutated condenser fan motor (0.36 HP) — high-powered motor delivering efficient, quiet 5-ton airflow
    • High-density compressor sound blanket — noise reduction even at maximum 5-ton output
    • Coil and ambient temperature sensors + suction pressure transducer — comprehensive system monitoring and protection
    • R-32 refrigerant — eco-friendly with one-third lower GWP than R-410A
    • Factory charged for 15 ft of ⅜" liquid line — ready to install
    • Cooling operation range 0°F to 115°F
    • ZAM® high corrosion-resistant steel bottom frame and legs — maximum long-term durability
    • Heavy-gauge galvanized-steel Ivory White cabinet — 500-hour salt-spray tested
    • Hurricane-ready construction — meets 2023 Florida Building Code requirements when properly anchored
    • Cooling only — pairs with compatible R-32 indoor unit with RDS
    • AHRI Certified and ETL Listed
    • Made in the USA

    ⚠️ Side discharge design — air discharges from the side. Review installation manual for clearance requirements before purchasing.

    ⚠️ Communicating system — requires compatible communicating indoor equipment and GTST thermostat for full functionality.

    ⚠️ R-32 refrigerant requires compatible indoor equipment with factory-installed RDS. Not compatible with R-410A.

    ⚠️ Field-installed bi-flow filter drier required — must be installed by your contractor in the field.

    ⚠️ Suction line adapter required — installer must supply ⅞" to 1⅛" adapters for suction line connections.

    Specs:

    • Tonnage: 5 Ton
    • Max Cooling: 53,500 BTU/h
    • SEER2: Up to 17.2
    • Compressor: Variable-Speed Inverter Swing (Variable / Infinite Stage)
    • Refrigerant: R-32
    • Expansion Device: EEV
    • Fan Motor: Digitally Commutated (0.36 HP)
    • Valve Type: Front AND Back Sealing
    • Voltage: 208/230V — 1Ph — 60Hz
    • MCA: 37.5 Amps
    • Max Breaker (MOP): 40 Amps
    • Liquid Line: ⅜" O.D.
    • Suction Line: 1⅛" O.D.
    • Refrigerant Charge: 118 oz
    • Cabinet: Custom Ivory White — Side Discharge
    • Cooling Range: 0°F to 115°F
    • Unit Weight: 174 lbs
    • Region: Southeast & North
    • Operation: Cooling Only

    Warranty: 10-year unit replacement + 10-year parts warranty with online registration within 60 days.
