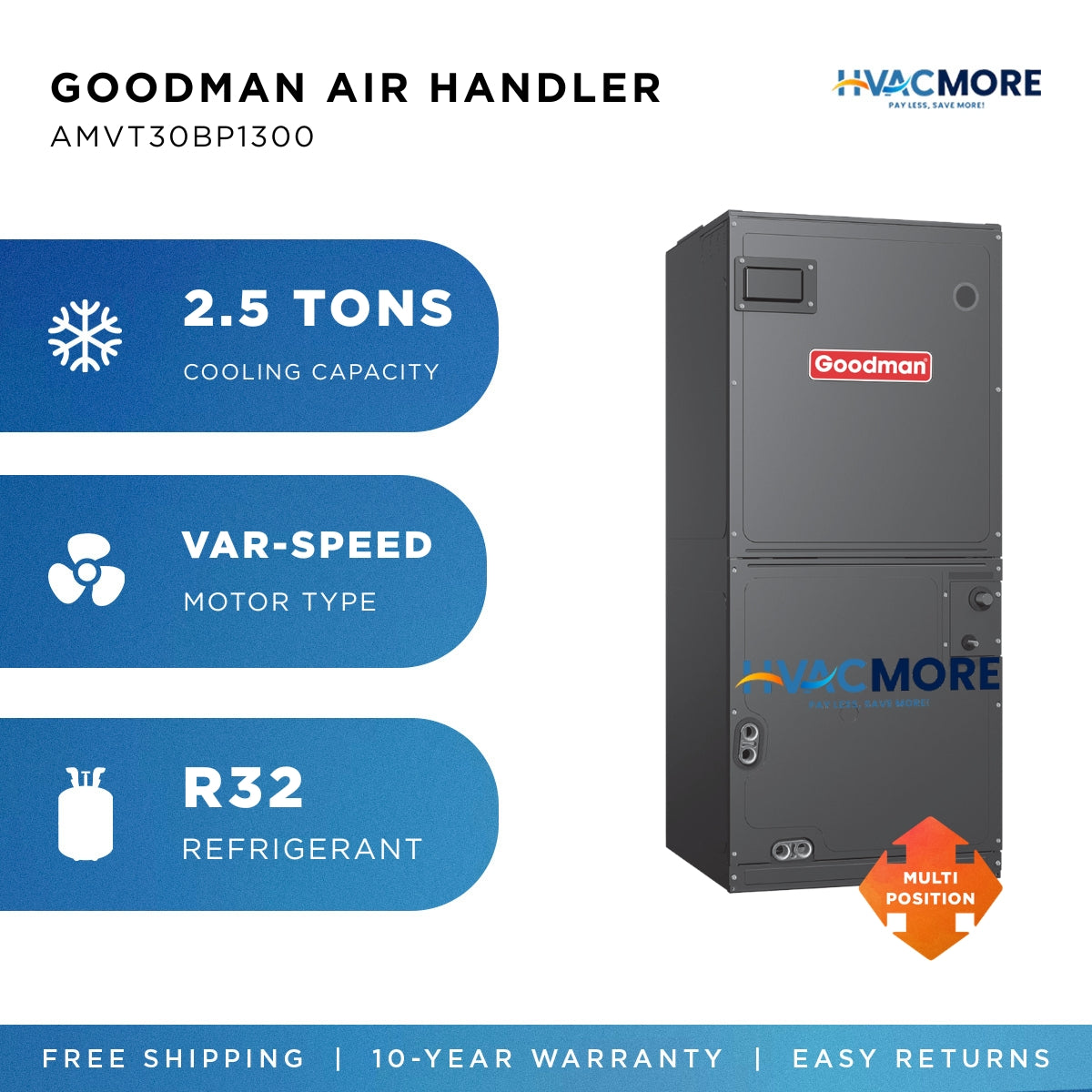

Goodman 2.5 Ton 17.5" Variable-Speed Multi-Position Air Handler with TXV & ComfortBridge R-32

The Goodman AMVT30BP1300 steps up to 2.5 tons of capacity while keeping the same narrow 17.5" cabinet, making it a strong fit for mid-size homes where mechanical space is still tight. Its variable-speed ECM motor and ComfortBridge technology work together to hold consistent airflow and humidity control across changing load conditions — a noticeable upgrade over single-speed equipment.

Key features that matter in the field

• Variable-speed ECM blower motor for constant CFM regardless of static pressure changes
• ComfortBridge Technology with auto-configuration and Bluetooth CoolCloud diagnostics
• Internal factory-installed TXV for accurate refrigerant metering
• All-aluminum evaporator coil with long-life R-32 sensor
• Adjustable low-CFM fan-only mode for efficient continuous airflow
• Rigid SmartFrame cabinet with quick-reposition coil mounting track
• Corrosion-resistant, leather-grain-embossed cabinet; DecaBDE-free drain pan with secondary drain
• Fault recall of the six most recent faults
• Multi-position: upflow, downflow, or horizontal

Regional readiness and important compatibility notes

• R-32 only — incompatible with R-410A equipment
• Match with a same-tonnage R-32 outdoor unit for full warranty and ComfortBridge functionality
• Communicating features require a compatible thermostat
• Generally suited to homes in the ~1,200–1,500 sq ft range

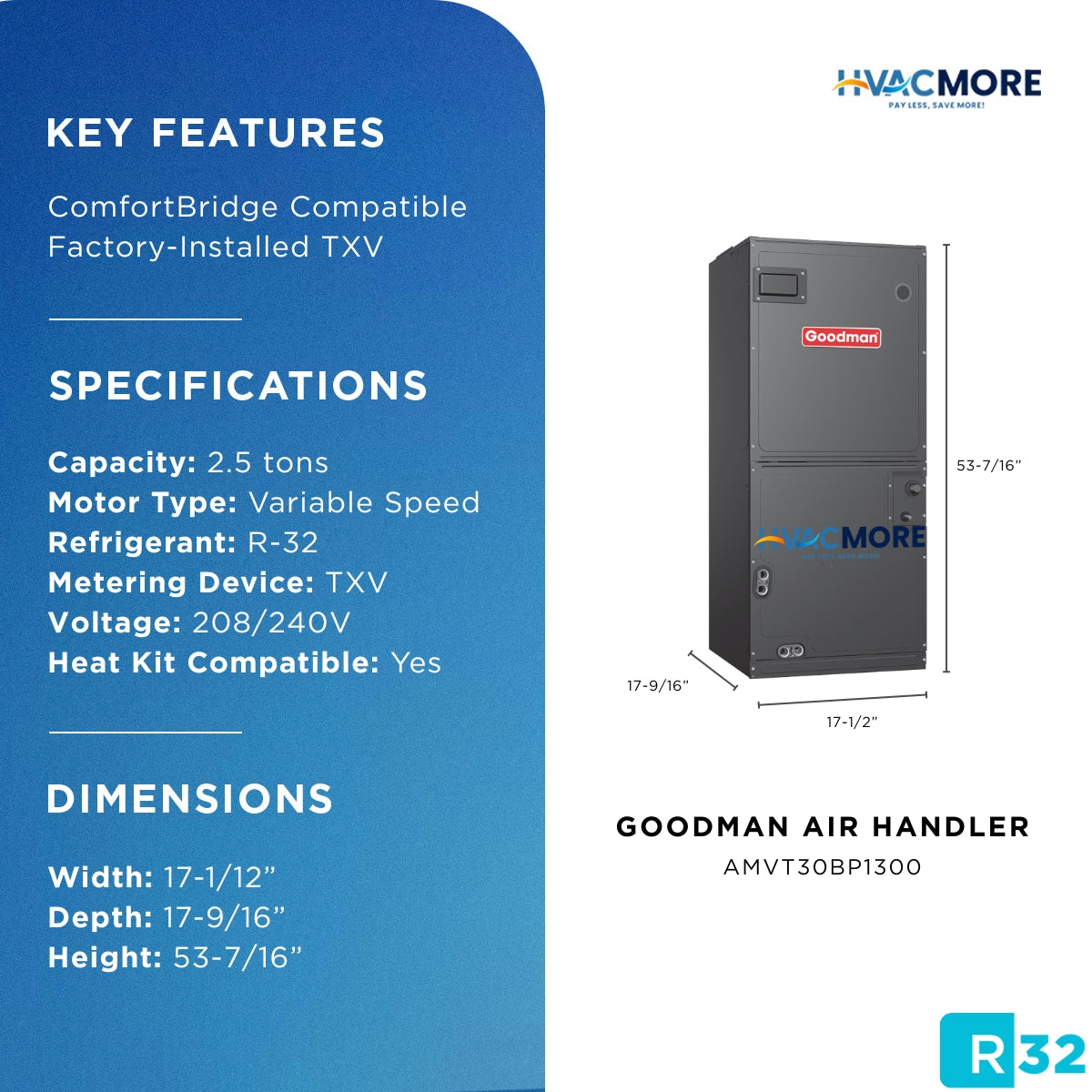

Specs at a glance

• Tonnage: 2.5 Ton
• Cabinet Width: 17.5"
• Refrigerant: R-32
• Metering Device: Internal TXV
• Motor: Variable-Speed ECM
• Line Connections: 3/8" liquid, 3/4" suction
• Warranty: 10-year limited parts warranty with registration within 60 days
• AHRI Certified, ETL Listed

Why this matters for you When a 2-ton air handler falls just short and a 3-ton is more than the space calls for, the AMVT30BP1300 fills that gap without giving up variable-speed comfort or the compact cabinet your install requires.
