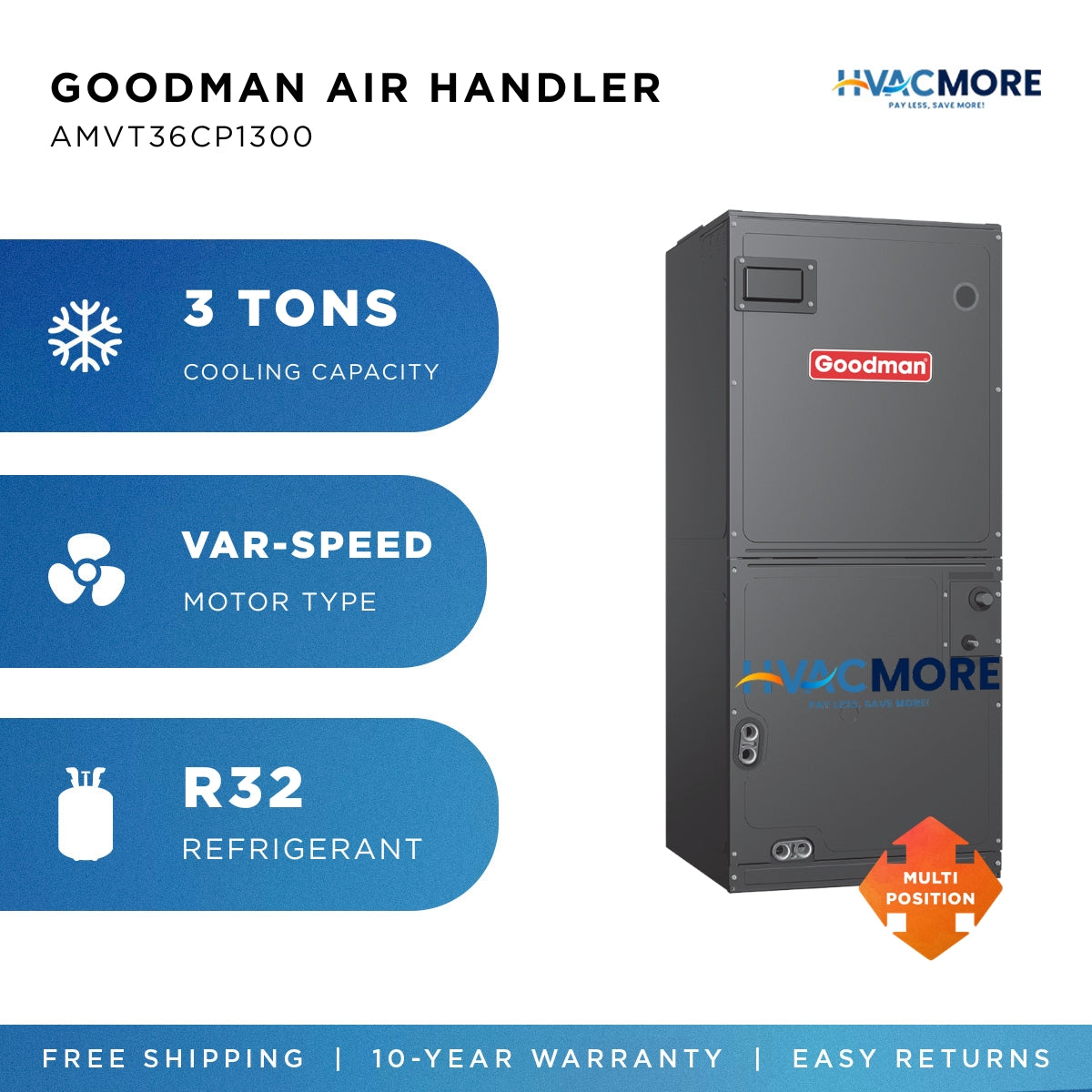

Goodman 3 Ton 21" Variable-Speed Multi-Position Air Handler with TXV & ComfortBridge R-32

The Goodman AMVT36CP1300 offers the same 3-ton variable-speed performance as the BP1300 model in a wider 21" cabinet, for installs where the existing furnace or air handler platform is already sized for a broader frame.

Key features that matter in the field

• Variable-speed ECM blower motor for constant CFM independent of duct static pressure
• ComfortBridge Technology with auto-configuration and CoolCloud Bluetooth diagnostics
• Internal factory-installed TXV for precise refrigerant control
• All-aluminum evaporator coil, R-32 optimized with a factory-installed sensor
• Adjustable low-CFM fan-only mode for efficient circulation
• Rigid SmartFrame cabinet with quick-reposition coil track
• Corrosion-resistant embossed cabinet; DecaBDE-free drain pan with secondary drain
• Fault recall of the six most recent faults
• Multi-position: upflow, downflow, or horizontal

Regional readiness and important compatibility notes

• R-32 only — incompatible with R-410A equipment
• Requires a matched R-32 outdoor unit for full warranty and communicating functionality
• Suited to homes in the ~1,500–1,800 sq ft range

Specs at a glance

• Tonnage: 3 Ton
• Cabinet Width: 21"
• Refrigerant: R-32
• Metering Device: Internal TXV
• Motor: Variable-Speed ECM
• Line Connections: 3/8" liquid, 3/4" suction
• Warranty: 10-year limited parts warranty with registration within 60 days
• AHRI Certified, ETL Listed

Why this matters for you When your furnace or air handler platform calls for a 21" cabinet and your load calc lands at 3 tons, the AMVT36CP1300 gets you there without a cabinet mismatch — full variable-speed comfort, no compromise on fit.
