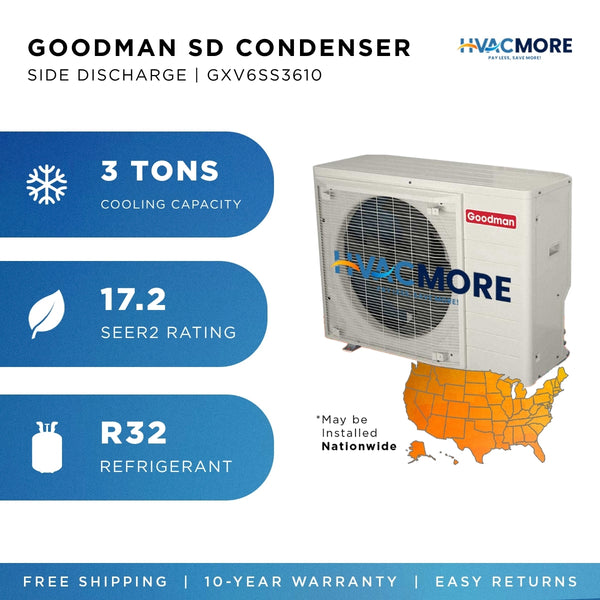

Goodman 3 Ton Up to 17.2 SEER2 Variable-Speed Inverter AC Condenser Side Discharge Cooling Only R-32 Southeast & North
SKU: Model: GXV6SS3610
Couldn't load pickup availability
Free Shipping
$ Price Match
Ships in 1-2 Business Days
Delivers in 1-5 Business Days
-
Description
Advanced inverter cooling for medium to large homes — 3-ton precision in a premium side-discharge package. The Goodman GXV6SS3610 delivers 3-ton, up to 17.2 SEER2 variable-speed cooling with an inverter swing compressor that responds instantly to changing cooling demands. While conventional 3-ton condensers blast on at full power and cycle off repeatedly, this unit finds the perfect speed for every moment — delivering more even temperatures, better dehumidification, and dramatically quieter operation all summer long.
Why Homeowners and Contractors Choose the GXV6SS3610:
- Up to 17.2 SEER2 efficiency — maximum energy savings for 3-ton systems
- 3 Ton / 34,200 BTU cooling capacity — ideal for medium to large homes between 1,500–1,800 sq ft
- Variable-speed inverter swing compressor — Variable / Infinite Stage — continuously modulates for exact comfort, efficiency, and quiet operation
- Selectable Quiet Mode — as low as 45 dBA — remarkable for a 3-ton condenser
- Field-selectable Boost Mode — maximum output for peak demand
- Electronic Expansion Valve (EEV) — precise refrigerant management
- Auto-control superheat management
- Side discharge design — flexible installation for constrained spaces
- Custom Ivory White cabinet
- Southeast & North regional designation
- ComfortNet compatible — smart system integration
- Only two low-voltage wires in communicating mode
- Compatible with Goodman GTST Connected Thermostat
- Proprietary 7-segment LED display with fault code storage
- Proprietary Inside Intelligence diagnostics
- Digitally commutated condenser fan motor (0.20 HP)
- High-density compressor sound blanket
- Coil and ambient temperature sensors + suction pressure transducer
- Front-sealing service valves with easy-access gauge ports
- R-32 refrigerant — one-third lower GWP than R-410A
- Factory charged for 15 ft of ⅜" liquid line
- Cooling operation range 0°F to 115°F
- ZAM® steel bottom frame and legs
- Heavy-gauge galvanized-steel Ivory White cabinet — 500-hour salt-spray tested
- Hurricane-ready construction — meets 2023 Florida Building Code
- AHRI Certified and ETL Listed
- Made in the USA
⚠️ Side discharge — review installation manual. Communicating system — GTST thermostat required. R-32 — compatible indoor unit with RDS required. Field-installed bi-flow filter drier required.
Specs:
- Tonnage: 3 Ton
- Max Cooling: 34,200 BTU/h
- SEER2: Up to 17.2
- Compressor: Variable-Speed Inverter Swing (Variable / Infinite Stage)
- Refrigerant: R-32
- Expansion Device: EEV
- Fan Motor: Digitally Commutated (0.20 HP)
- Voltage: 208/230V — 1Ph — 60Hz
- MCA: 22.4 Amps
- Max Breaker (MOP): 25 Amps
- Liquid Line: ⅜" O.D.
- Suction Line: ⅞" O.D.
- Refrigerant Charge: 83 oz
- Cabinet: Custom Ivory White — Side Discharge
- Cooling Range: 0°F to 115°F
- Unit Weight: 133 lbs
- Region: Southeast & North
- Operation: Cooling Only
Warranty: 10-year unit replacement + 10-year parts warranty with online registration within 60 days.
-
