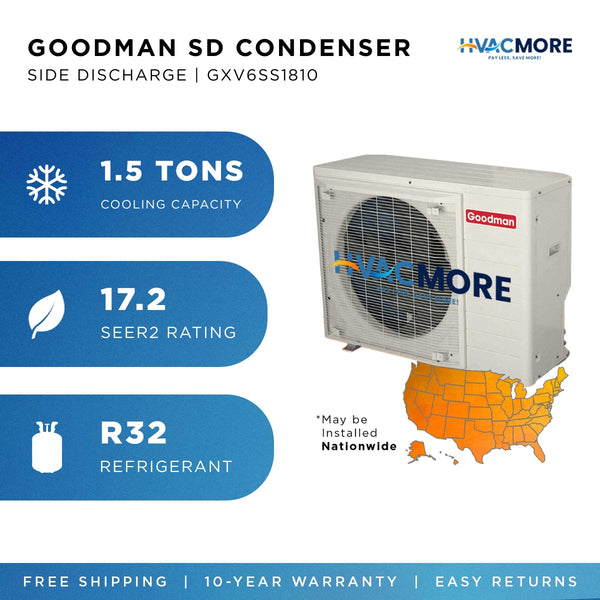

Goodman 1.5 Ton Up to 17.2 SEER2 Variable-Speed Inverter AC Condenser Side Discharge Cooling Only R-32 Southeast & North

Model: GXV6SS1810

$2,223.00
$2,223.00
Sale Sold out
In Stock Get by —
FastTrack Order by 6PM ET, ships —
Free freight shipping on orders $150+
Free Shipping Free Shipping
$ Price Match $ Price Match
Ships in 1-2 Business Days Ships in 1-2 Business Days
Delivers in 1-5 Business Days Delivers in 1-5 Business Days
View full details

  • The most technologically advanced 1.5-ton AC Goodman makes — now available in the full Southeast and North range. The Goodman GXV6SS1810 is a 1.5-ton, variable-speed inverter-driven side-discharge AC condenser that delivers up to 17.2 SEER2 efficiency with whisper-quiet operation as low as 45 dBA. Identical in technology to the GXV6SA1810 but with a regional designation for the Southeast and North — making it the premium inverter choice for small homes across the widest possible US market coverage in this series. The inverter swing compressor never simply turns on and off — it continuously and precisely modulates cooling output to match your home's exact demand, eliminating the temperature swings, noise, and wasted energy of conventional condensers.

    Why Homeowners and Contractors Choose the GXV6SS1810:

    • Up to 17.2 SEER2 efficiency — Goodman's highest efficiency AC rating, delivering maximum savings every cooling season
    • 1.5 Ton / 17,100 BTU cooling capacity — ideal for small homes, condos, and apartments between 750–1,000 sq ft
    • Variable-speed inverter swing compressor — Variable / Infinite Stage — continuously modulates between minimum and maximum output for exact temperature control, maximum efficiency, and minimum noise
    • Selectable Quiet Mode — up to 3 sound levels, as low as 45 dBA — among the quietest 1.5-ton AC condensers available
    • Field-selectable Boost Mode — maximum compressor speed during peak demand
    • Electronic Expansion Valve (EEV) — precise refrigerant metering for optimized efficiency across all conditions
    • Auto-control superheat management — intelligent charge management simplifies commissioning and servicing
    • Side discharge design — side-air discharge for flexible installation in constrained spaces where top-discharge units won't fit
    • Custom Ivory White cabinet — distinctive premium appearance
    • Southeast & North regional designation — approved for installation across the widest Southeast and Northern US market coverage in the GXV6S series
    • ComfortNet compatible — full smart system integration with Goodman communicating equipment
    • Only two low-voltage wires to outdoor unit in communicating mode — simplified installation wiring
    • Compatible with Goodman GTST Connected Thermostat — smart home control and remote access
    • Proprietary 7-segment LED display with fault code storage — faster, cheaper service calls
    • Proprietary Inside Intelligence diagnostics — proactive system health monitoring
    • Digitally commutated condenser fan motor — quieter, more efficient, longer-lasting than PSC motors
    • High-density compressor sound blanket — additional noise dampening
    • Coil and ambient temperature sensors + suction pressure transducer — advanced real-time monitoring and protection
    • Front-sealing service valves with easy-access gauge ports — faster installation and servicing
    • R-32 refrigerant — eco-friendly with one-third lower GWP than R-410A
    • Factory charged for 15 ft of ⅜" liquid line — ready to install right out of the box
    • Cooling operation range 0°F to 115°F — wider ambient range than most standard condensers
    • ZAM® high corrosion-resistant unpainted steel bottom frame and legs — maximum long-term durability
    • Heavy-gauge galvanized-steel cabinet with Ivory White powder-coat finish — 500-hour salt-spray tested
    • Hurricane-ready construction — meets 2023 Florida Building Code requirements when properly anchored
    • Cooling only — pairs with compatible R-32 indoor unit with RDS
    • AHRI Certified and ETL Listed
    • Made in the USA

    ⚠️ Side discharge design — air discharges from the side. Review installation manual for clearance requirements before purchasing.

    ⚠️ Communicating system — requires compatible communicating indoor equipment and GTST thermostat for full functionality.

    ⚠️ R-32 refrigerant requires compatible indoor equipment with factory-installed RDS. Not compatible with R-410A.

    ⚠️ Field-installed bi-flow filter drier required — not factory pre-installed. Must be installed by your contractor.

    ⚠️ Suction line adapter — installer must supply ⅞" to 1⅛" adapters for applicable tonnage connections.

    Specs:

    • Tonnage: 1.5 Ton
    • Max Cooling: 17,100 BTU/h
    • SEER2: Up to 17.2
    • Compressor: Variable-Speed Inverter Swing (Variable / Infinite Stage)
    • Refrigerant: R-32
    • Expansion Device: EEV
    • Fan Motor: Digitally Commutated (0.09 HP)
    • Voltage: 208/230V — 1Ph — 60Hz
    • MCA: 12.8 Amps
    • Max Breaker (MOP): 15 Amps
    • Liquid Line: ⅜" O.D.
    • Suction Line: ¾" O.D.
    • Refrigerant Charge: 74 oz
    • Cabinet: Custom Ivory White — Side Discharge
    • Cooling Range: 0°F to 115°F
    • Unit Weight: 119 lbs
    • Region: Southeast & North
    • Operation: Cooling Only

    Warranty: 10-year unit replacement limited warranty (good for as long as you own your home) + 10-year parts warranty with online registration within 60 days.
