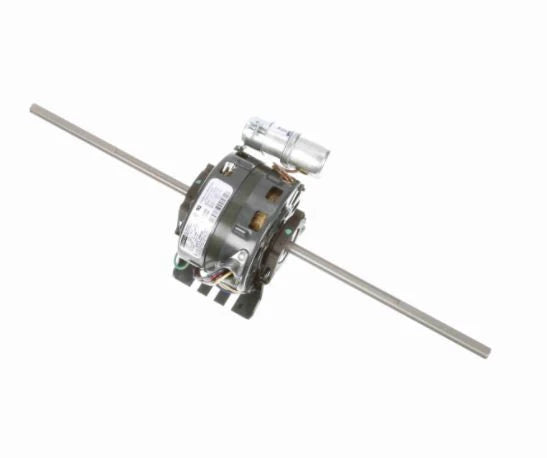

Fasco D1055A 3-Speed 1375 RPM 1/12 HP Motor (115/127V)
SKU:Item: 4753850 | Model: D1055
Couldn't load pickup availability
Free Shipping
$ Price Match
Ships in 1-2 Business Days
Delivers in 1-5 Business Days
-
Description
Item: 4753850
Fasco D1055A 3-Speed 1375 RPM 1/12 HP Motor (115/127V)
The Fasco D1055A is an OEM direct replacement motor designed for HVAC and industrial applications requiring a reliable, three-speed motor. It operates at 1375 RPM with a 1/12 horsepower rating and is suitable for use in systems compatible with 115 to 127 volts.
Key Specifications
- Horsepower: 1/12 HP
- RPM: 1375
- Voltage: 115-127 V
- Amperage: 1.4 A
- Enclosure: PSC (Permanent Split Capacitor)
- Frame / Diameter: 42 Frame / 5" Diameter
- Shaft Dimensions: 9-1/8" length x 1/2" diameter, double flat
- Rotation: CWSE (Clockwise Shaft End)
- Bearings: Sleeve Bearings
Product Features & Fitment
This motor features a resilient base for vibration reduction and continuous duty operation. It includes a thermally protected design with sleeve bearings and 71" leads for easy wiring. The motor requires a 6 MFD-370 VAC capacitor, which is supplied with the unit. The shaft length and mounting dimensions (C-Dimension 21.77") ensure compatibility with direct replacement applications. Cross references include 5KCP29BK8383S and 5KCP29BK790S.
-
