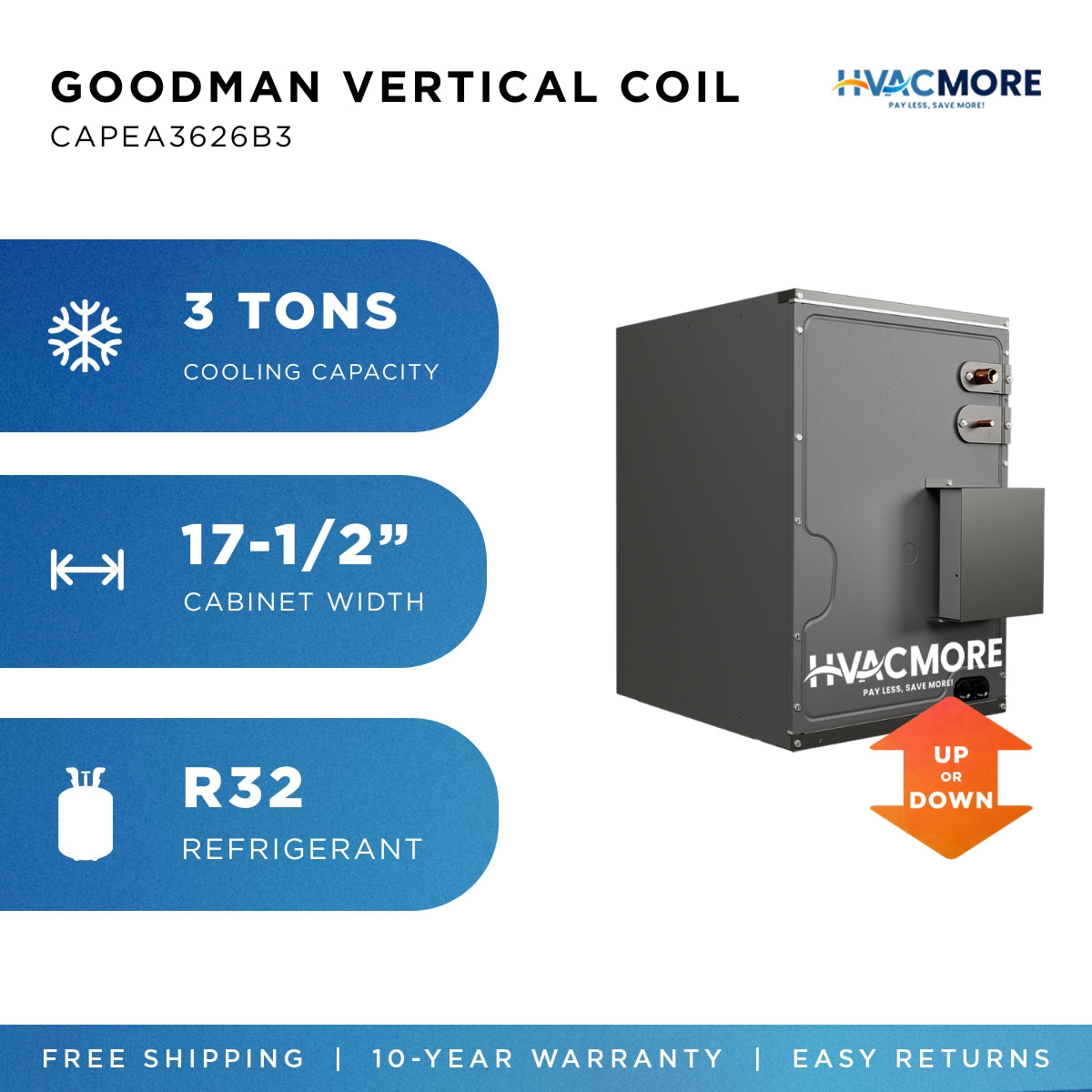

Goodman 3 Ton 17.5" Cased Upflow/Downflow Evaporator Coil EEV R-32 - CAPEA3626B3

The Goodman CAPEA3626B3 is a workhorse 3-ton coil built into a narrow 17.5" cabinet, making it one of the more space-efficient options for homes in the 1,500–1,800 sq ft range. It's engineered for the same precision and durability found across the CAPEA lineup, giving techs a dependable go-to for common mid-size replacements.

Key features that matter in the field

• Factory-installed EEV for accurate refrigerant metering in cooling and heat pump applications
• All-aluminum coil with sine fins and grooved tubing, optimized for R-32
• Daikin One+ smart thermostat compatibility
• Foil-faced insulation and galvanized, leather-grain-embossed cabinet resist corrosion and condensation
• DecaBDE-free, low-retention thermoplastic drain pan with secondary drain connection
• Single front access panel; 21" depth simplifies attic and closet installs
• Fault recall of the six most recent faults

Regional readiness and important compatibility notes

• R-32 only — not for use with R-410A systems
• Requires a matched R-32 outdoor condenser/heat pump and Goodman Furnace Integration Kit (Model 0230K00044)
• Typically suited to homes in the ~1,500–1,800 sq ft range

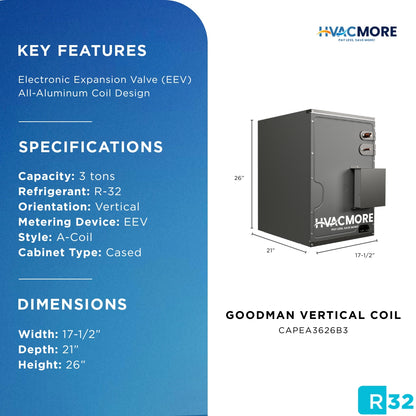

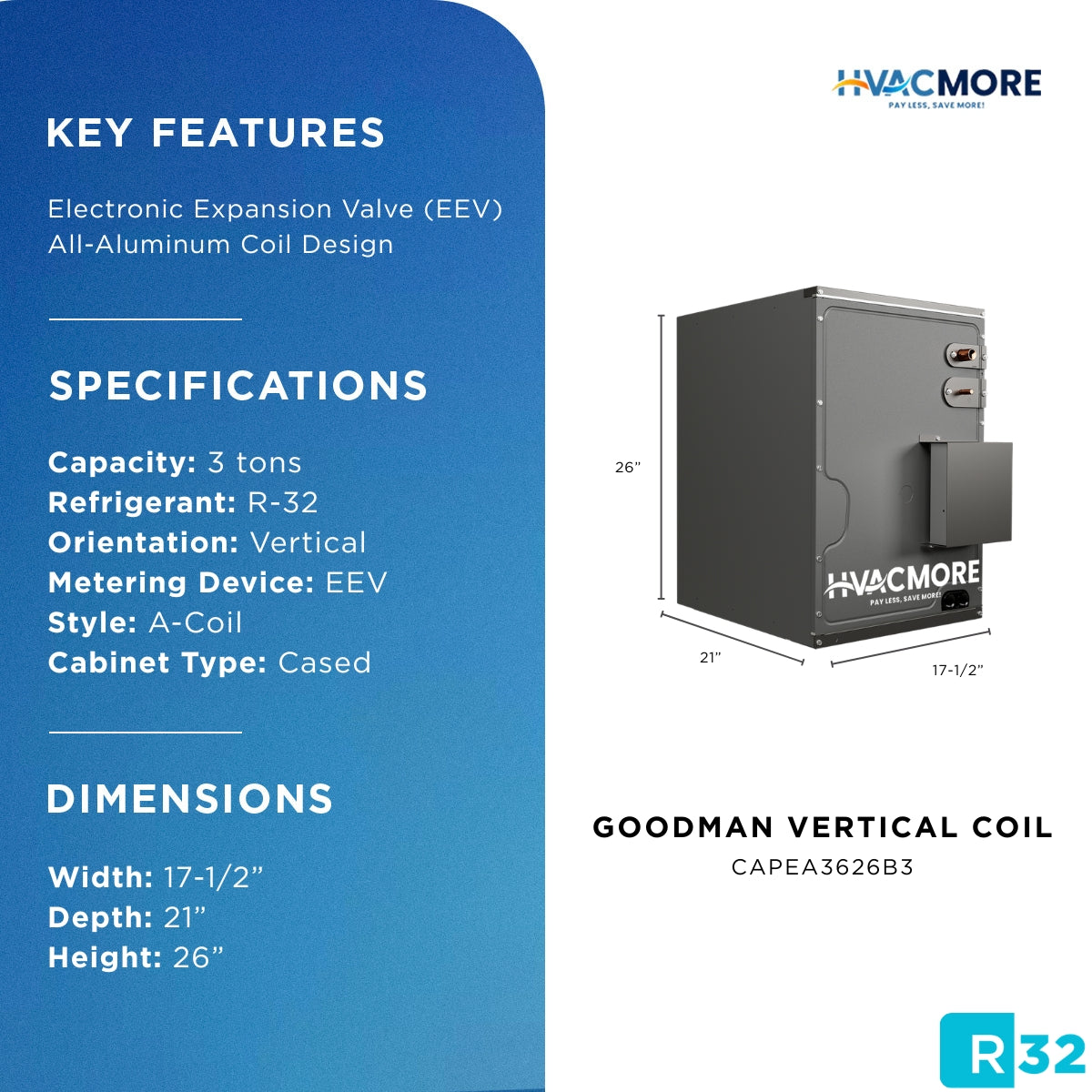

Specs at a glance

• Tonnage: 3 Ton
• Cabinet Dimensions (W x D x H): 17.5" x 21" x 26"
• Refrigerant: R-32
• Metering Device: Internal EEV
• Line Connections: 5/16" or 3/8" liquid, 3/4" or 7/8" suction
• Ship Weight: 54 lbs
• Warranty: 10-year limited parts warranty with registration within 60 days
• AHRI Certified, ETL Listed

Why this matters for you A 3-ton coil is one of the most common calls in residential HVAC, and the CAPEA3626B3 delivers that capacity in a cabinet narrow enough to fit standard closet installs. It's the coil you can spec with confidence on the majority of mid-size replacement jobs.
