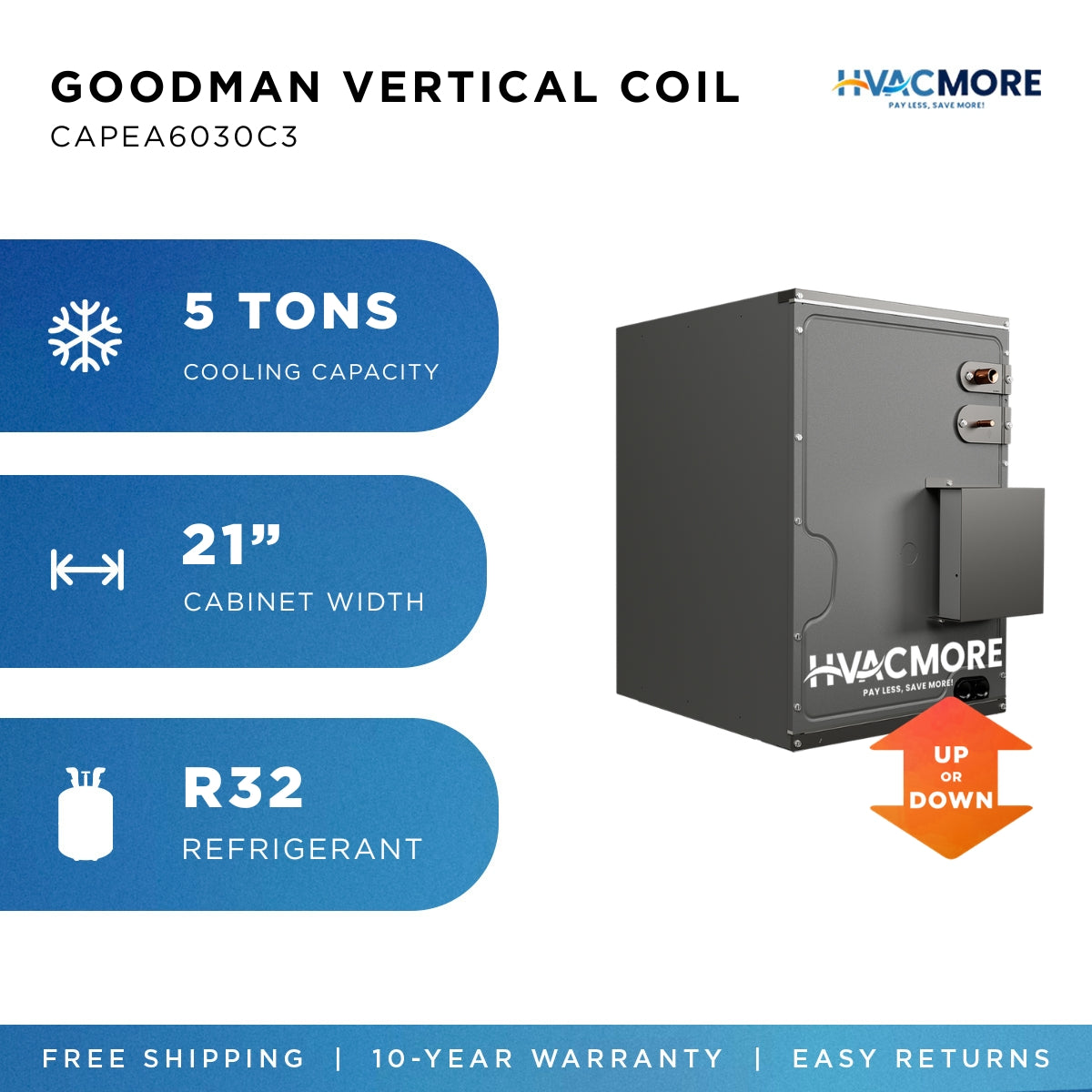

Goodman 5 Ton 21" Cased Upflow/Downflow Evaporator Coil EEV R-32 - CAPEA6030C3

Built for larger residential or light commercial applications, the Goodman CAPEA6030C3 provides 5 tons of cooling capacity in a 21" cabinet. It's sized to handle the higher airflow and refrigerant charge that 5-ton systems demand, without giving up any of the reliability found across the CAPEA line.

Key features that matter in the field

• Factory-installed EEV built for high-capacity refrigerant metering in cooling and heat pump modes
• All-aluminum coil with R-32 optimized circuits, manifolds, and long-life sensor
• Daikin One+ compatible for communicating diagnostics
• Galvanized, embossed cabinet with foil-faced insulation resists condensation
• Rust-resistant, DecaBDE-free thermoplastic drain pan with secondary drain connection
• Single front access panel; 21" depth for easier service access
• Fault recall of the six most recent faults

Regional readiness and important compatibility notes

• R-32 only — not compatible with R-410A systems
• Requires a matched R-32 outdoor unit and Goodman Furnace Integration Kit (Model 0230K00044)
• Best suited to homes or light commercial spaces in the ~2,500–3,000 sq ft range

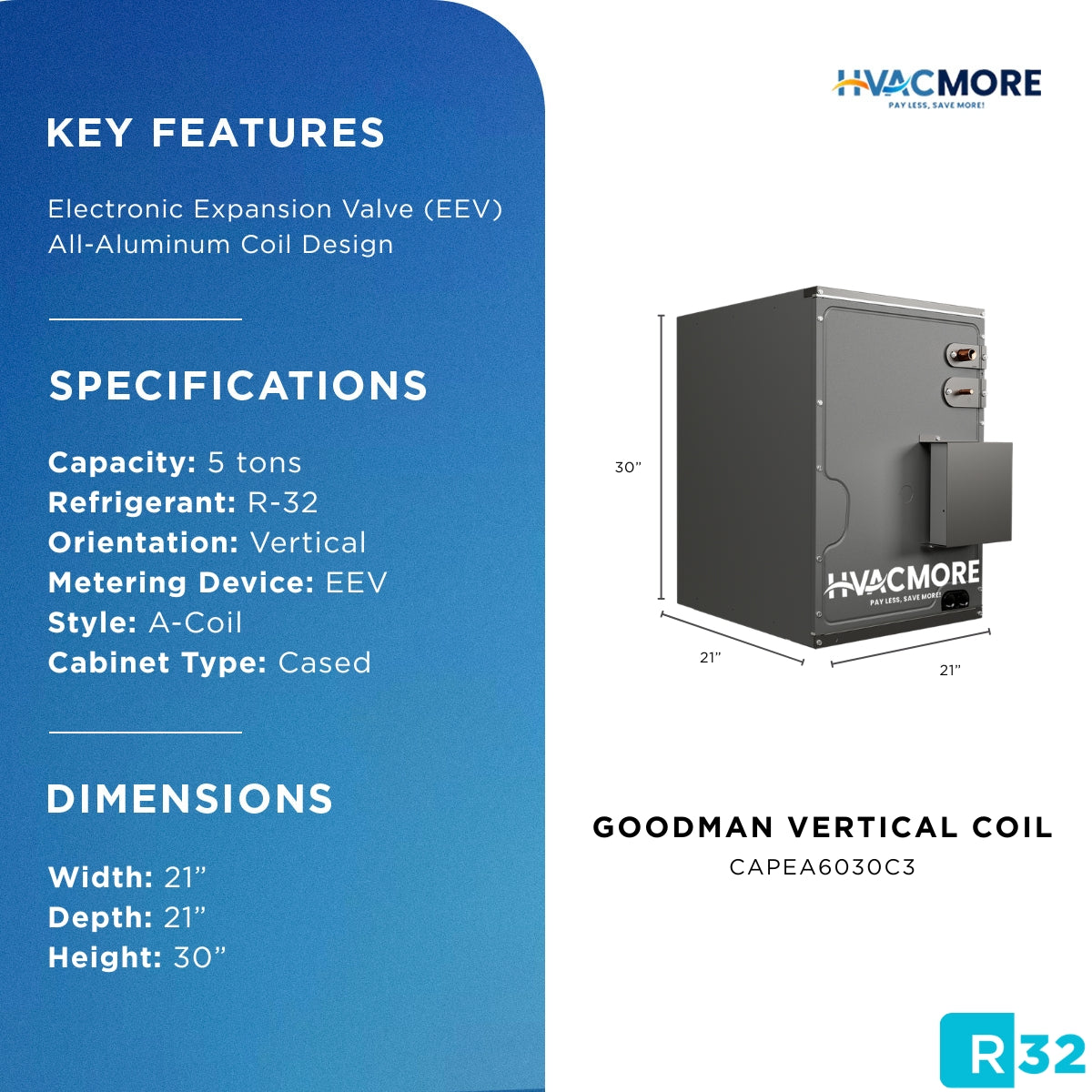

Specs at a glance

• Tonnage: 5 Ton
• Cabinet Dimensions (W x D x H): 21" x 21" x 30"
• Refrigerant: R-32
• Metering Device: Internal EEV
• Line Connections: 3/8" liquid, 7/8" or 1⅛" suction
• Ship Weight: 75 lbs
• Warranty: 10-year limited parts warranty with registration within 60 days
• AHRI Certified, ETL Listed

Why this matters for you Five-ton jobs demand coils that can move a lot of refrigerant without losing metering accuracy, and the CAPEA6030C3 is built for that scale. It's the coil to spec for larger homes or light commercial spaces that need serious capacity in a standard 21" cabinet.
