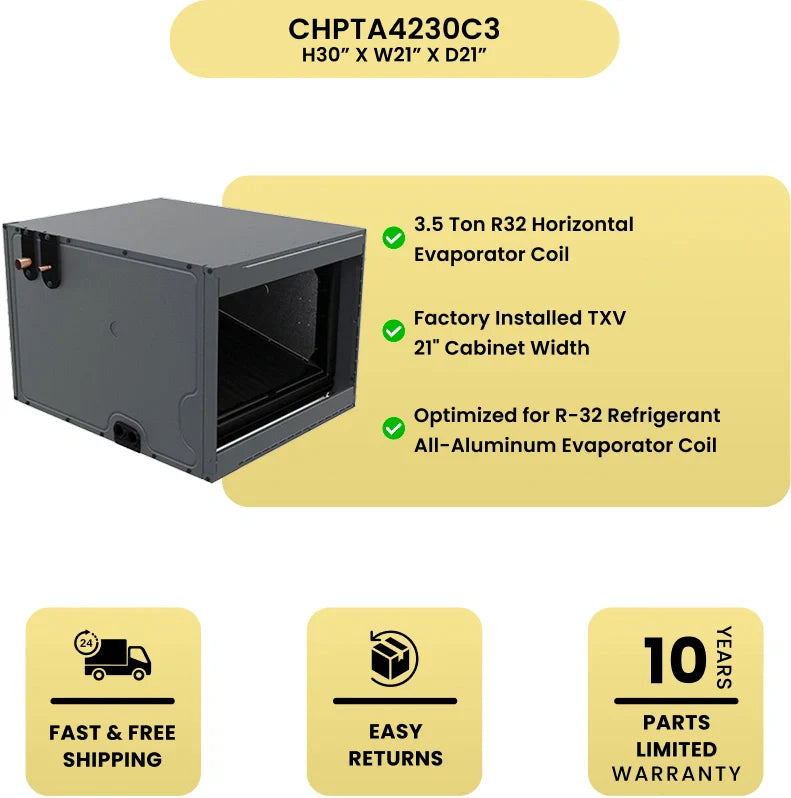

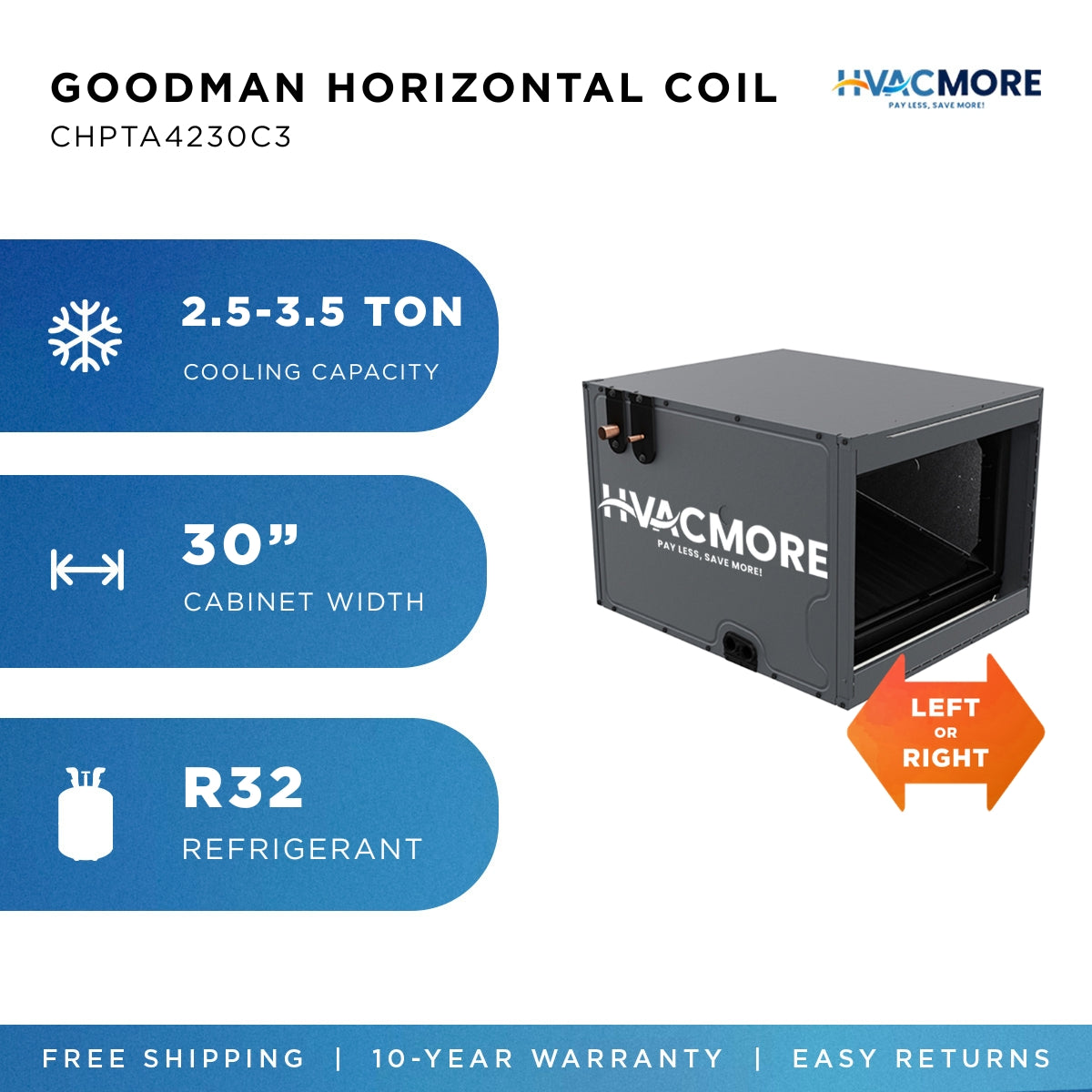

Goodman 3.5 Ton R32 Horizontal Evaporator Coil - CHPTA4230C3

The Goodman CHPTA4230C3 is one of the most versatile coils in the CHPTA lineup, compatible with 2.5 to 3.5 ton systems. Whether you're installing in a medium or large home, this coil's wide tonnage range and factory TXV make it a flexible and efficient choice.

Key Features:

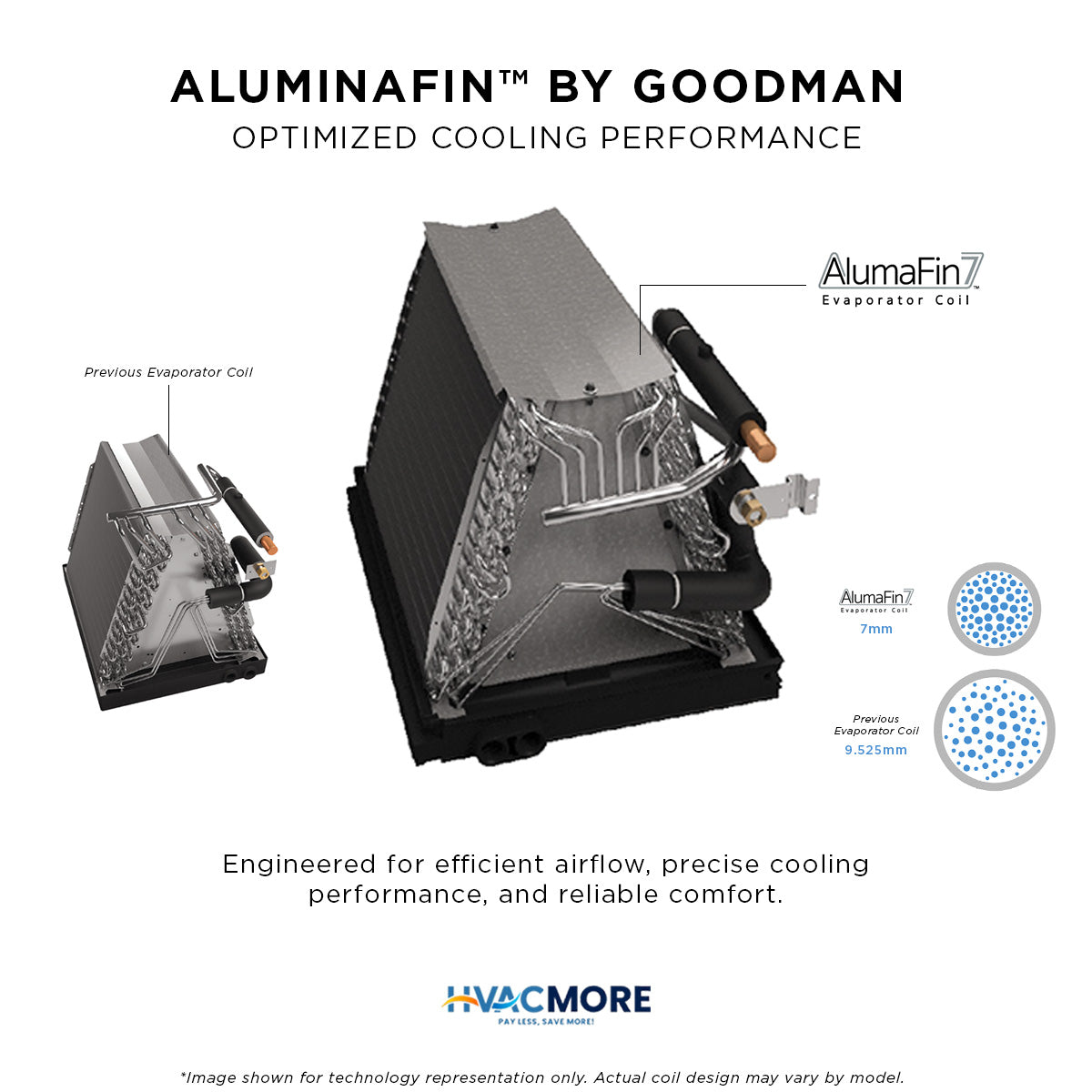

• All-aluminum construction for superior corrosion resistance and long-lasting durability
• Factory-installed TXV for precise refrigerant flow and improved efficiency
• Wide compatibility — fits 2.5, 3, and 3.5 ton systems
• Optimized for R-32 refrigerant — eco-friendly with lower global warming potential
• Horizontal installation design — ideal for attic and crawlspace applications
• 21" depth for easier attic access
• Foil-faced insulation minimizes cabinet condensation
• Rust-resistant thermoplastic drain pan with secondary drain connections
• AHRI Certified and ETL Listed

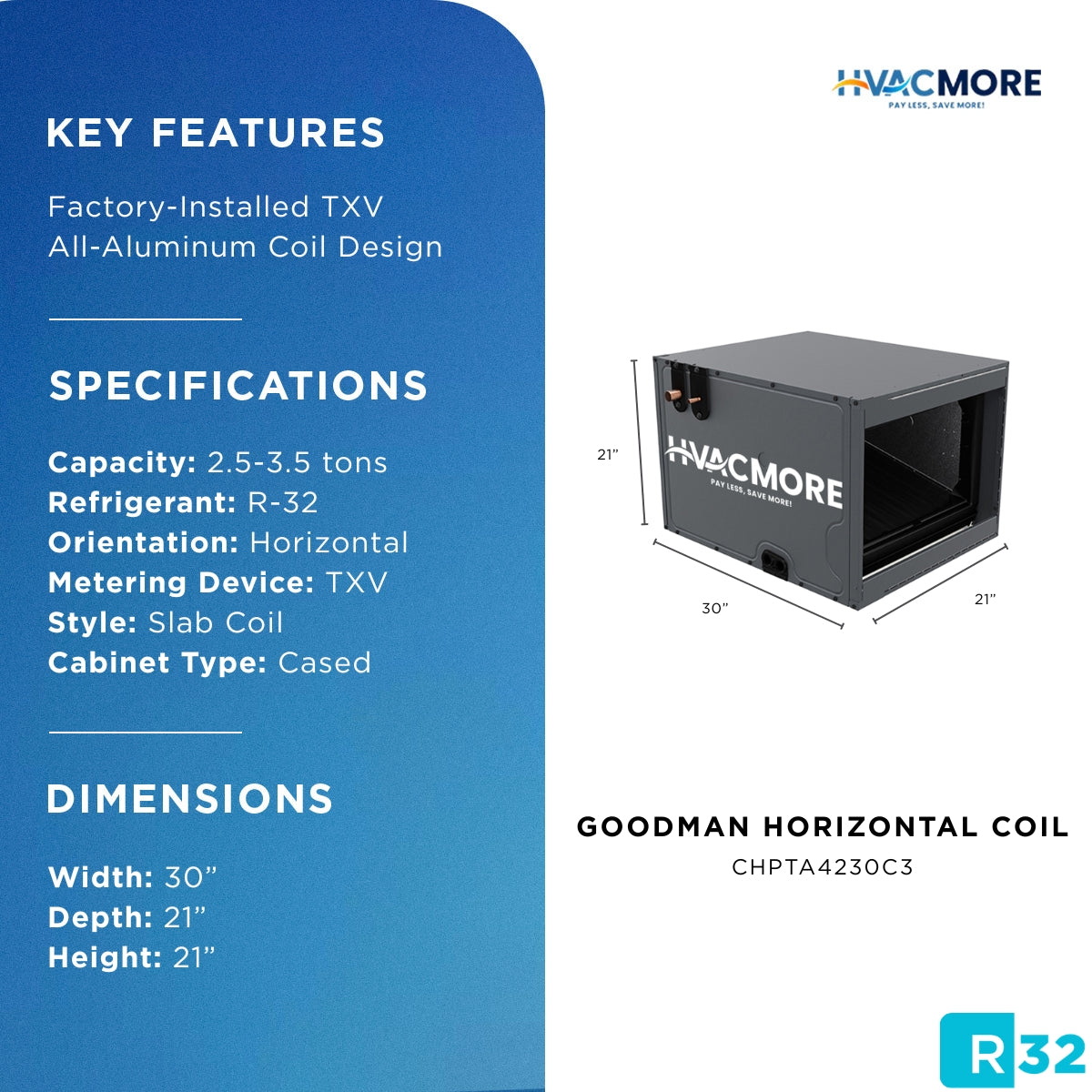

Specs:

• Tonnage: 2.5 - 3.5 Ton (30,000 - 42,000 BTU)
• Cabinet Size: 30"W x 21"D x 21"H
• Refrigerant: R-32
• Metering Device: Factory TXV
• Orientation: Horizontal

Compatibility: Pairs with Goodman R-32 condensers and heat pumps. Requires a compatible condenser and furnace or blower — sold separately.

Warranty: 10-year limited parts warranty when registered within 60 days of installation.
