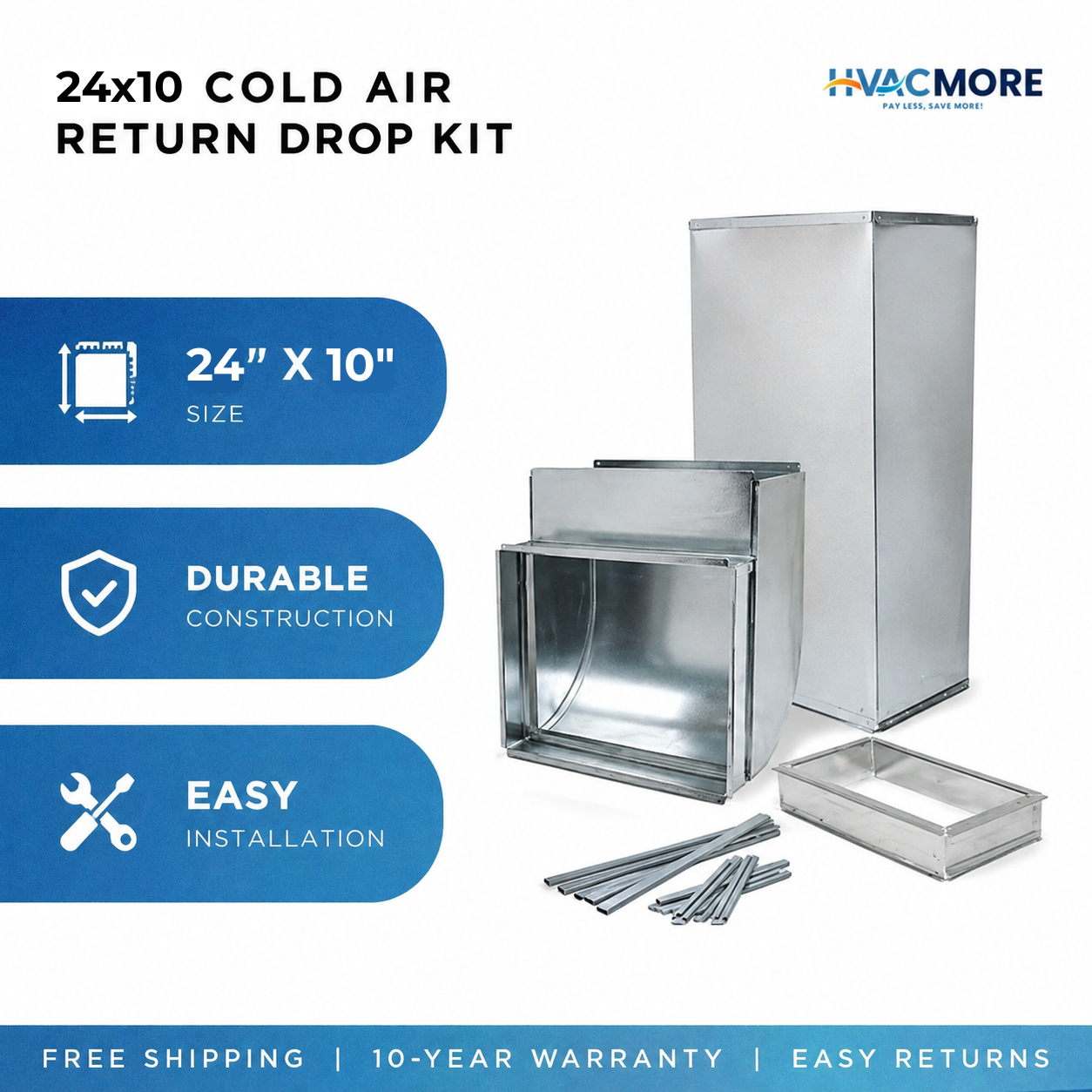

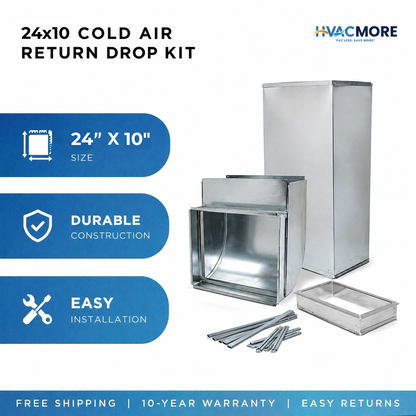

High Efficiency 24X10 Cold Air Return Drop Duct Kit

Engineered for stable 24 x 10 inch cold air return pathways, this drop duct kit maintains consistent airflow velocity while reducing static pressure loss across your residential or light commercial HVAC system.

Direct Drop Configuration

The rectangular duct sections create a clean vertical drop from ceiling penetrations or bulkhead soffits down to standard return register elevations. This straight layout removes the need for custom fabricated angles, which commonly cause turbulence, dust accumulation, and increased blower noise.

System Efficiency and Compatibility

A smooth interior profile supports laminar flow patterns, allowing your air handler to draw air evenly without creating negative pressure pockets in conditioned rooms. When integrated with correctly sized filters and sealed supply trunks, the assembly helps maintain balanced indoor climate control and reduces short-cycling events during peak heating or cooling loads.

Key Specifications and Setup Notes

• Dimensions: 24 inches by 10 inches connection opening
• Orientation: Vertical drop design for straightforward bulkhead-to-register routing
• Assembly: Interlocking flange joints with included fasteners keep connections sealed
• Verification: Match total free area to your equipment’s airflow requirements before final installation

Measure your rough-in cavity and confirm register depth before placement. Align flanges squarely, drive all screws flush, and inspect seams for gaps that could pull unconditioned attic or crawlspace air into the return stream. Properly seated, this kit integrates directly into existing 24 x 10 return networks without modifying adjacent duct branches or structural framing.
