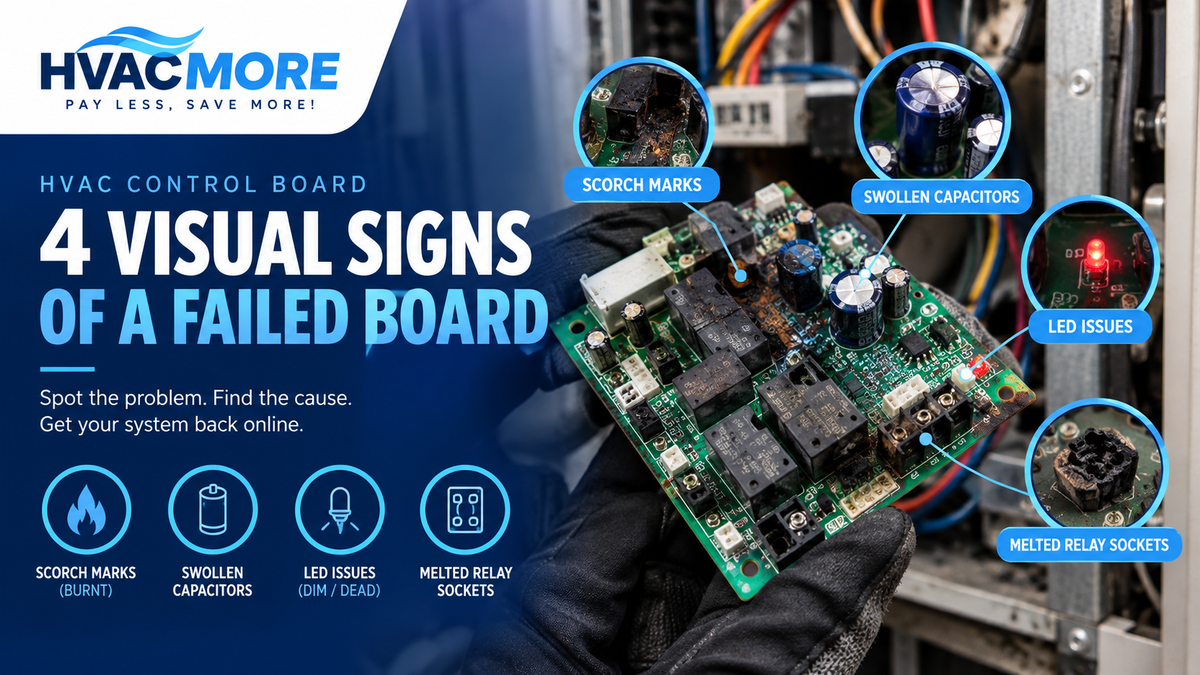

HVAC Control Board Visual Diagnosis Guide: Burnt, Flashing, and Damaged Boards in 2026



A failed HVAC control board usually tells you what killed it with your eyes. Four visual signatures explain the overwhelming majority of board failures: scorch marks on the traces or relay sockets, swollen electrolytic capacitors, a dim, flickering, or dead LED, and burned or melted relay sockets. Each signature points to a different root cause and a different OEM replacement, and each one tells you whether the board failure was the primary problem or a symptom of a shorted downstream component.

The quick answer: scorch marks around a relay = short in whatever that relay drives (gas valve, inducer, blower, contactor). Swollen capacitors = aged board, replace proactively. Dead LED with 24 VAC input confirmed = board is dead. Melted relay socket = overcurrent event, test the downstream load for shorts before installing a replacement or you will burn the new board too.

Why visual diagnosis works on HVAC control boards

HVAC control boards are relatively simple circuit boards — a handful of relays, a few electrolytic capacitors, a microcontroller or dedicated logic, and copper traces carrying 24 VAC and 115 VAC between them. Unlike complex consumer electronics, HVAC boards fail in predictable, visible ways because they handle real power at their relays and because they live in hot, humid, or dusty environments.

A tech with 20 years of furnace calls can usually diagnose a board in under 60 seconds by looking at it. The scorch pattern tells them which circuit shorted. The capacitor shape tells them whether the board is tired or hit. The LED behavior tells them whether the board even knows it is powered. Learning the four visual signatures turns the diagnosis from “probably the board” to “the board, and here is why, and here is what to fix upstream before the replacement goes in.”

For brand-specific flash code interpretation, see the York Furnace Flash Codes guide. For the full six-step furnace diagnosis sequence, see the Furnace Diagnosis Chat-Style guide. For AC-specific board diagnosis, see the AC Diagnosis Chat-Style guide.

Signature 1: Burnt — scorch marks, carbon trails, or black residue

What you are looking at: brown or black carbon marks around a relay socket, a terminal strip, or along a copper trace on the board. In severe cases, the trace itself may be lifted off the fiberglass substrate, bubbled, or vaporized.

What it means: an overcurrent event forced more amperage through the trace or relay contacts than the component could handle. The current overcame the solder, melted the trace copper, carbonized the fiberglass, and produced the scorch pattern you see.

Root causes, in order of frequency:

• Shorted downstream component. A gas valve with a shorted coil pulls locked-rotor amperage through the gas-valve relay. A seized inducer motor does the same through the inducer relay. A shorted blower pulls through the blower relay or the EAC terminal. The relay heats, the trace melts, scorch marks appear around the socket.
• Loose terminal connection. A wire that is loose on the gas-valve, inducer, or blower screw terminal arcs under load. The arc generates heat, carbonizes the plastic terminal block, and spreads to the adjacent traces.
• Voltage surge or lightning. A nearby strike or utility surge spikes above the board's protection threshold, flashes across a trace, and leaves a carbon trail. These are usually catastrophic — multiple components damaged, the microcontroller often dead too.
• Over-voltage from a failed transformer. A low-voltage transformer that fails short-to-primary can dump 60 VAC or higher into a 24V circuit, overloading everything downstream including the board.

What to do:

1. Photograph the scorch pattern. Where it is tells you which circuit shorted.
2. Test the downstream component. Ohm the gas valve coil (should read tens of ohms, not a short). Ohm the inducer or blower motor windings. Ohm the ignitor if the ignitor relay is scorched.
3. Measure the low-voltage transformer output: 24 to 28 VAC. Over 32 VAC is a failed transformer and the transformer must be replaced before any new board goes in.
4. Order the OEM replacement board matched to the equipment model number.
5. Install the new board, retighten every low-voltage and high-voltage terminal, and verify operation through a full ignition or cooling cycle.

A burnt board without root-cause remediation is a $300 replacement that lasts about 20 minutes. Always find the short first.

Signature 2: Flashing — LED fault codes and dim or dead indicators

What you are looking at: the diagnostic LED on the board, usually a single red or green indicator mounted on the edge of the board or visible through a sight glass in the cabinet door.

The LED has four possible states, each with a different meaning:

State A: Steady slow blink (approximately 1 Hz)

Meaning: normal operation on most OEM boards. The slow heartbeat tells you the board is powered, the microcontroller is running, and no faults are latched.

Action: none. The board is healthy. If the equipment is not operating, the fault is likely upstream in the thermostat or in the 24V wiring.

State B: Repeating flash pattern with pauses (fault code)

Meaning: the board is reporting a specific fault. Count the flashes between pauses and cross-reference against the legend sticker inside the cabinet door. Common patterns across most OEM brands:

• 2 flashes — pressure switch stuck
• 3 flashes — pressure switch open with inducer running
• 4 flashes — limit or rollout open
• 5 flashes — flame sensed with no call
• 6 flashes — ignition failure
• 7 flashes — gas valve circuit fault
• 9 flashes — reversed polarity or missing ground

Action: the flash code points to an upstream failure, not the board itself. Diagnose the circuit the code names before considering board replacement. See the Furnace Diagnosis Chat-Style guide for the full flash-code-to-component sequence.

State C: Dim, flickering, or erratic LED

Meaning: the board's microcontroller is running on marginal voltage, typically from an aged or failing on-board regulator or from a transformer feeding below 20 VAC. The LED's power supply cannot maintain steady drive.

Action: measure 24 VAC at the board's R-and-C input terminals. Below 22 VAC is a transformer or low-voltage wiring issue; replace or repair upstream. Above 22 VAC with a dim LED is a dying board — order the OEM replacement.

State D: Completely dead LED

Meaning: either no power is reaching the board, or the board is dead. Confirm with a voltage measurement.

Action: measure 24 VAC at the board's input terminals. No voltage means the transformer or the 115 VAC supply to the transformer has failed; trace upstream. 24 VAC present at the input with a dead LED and no board response to a thermostat call is a confirmed dead board — order the OEM replacement.

Signature 3: Damaged — swollen capacitors, leaking electrolyte, or physical damage

What you are looking at: the small cylindrical electrolytic capacitors on the board, usually 2 to 8 of them, mounted upright with a cross-shaped vent stamped into the top of each can. On a healthy board, every capacitor top is flat.

Failure signs:

• Domed or bulging top. The cross-vent has pushed up because internal pressure built from electrolyte decomposition. The capacitor has failed or is about to.
• Visible rupture or crack. The capacitor can vented through the cross-slot and sprayed electrolyte. Done.
• Brown, white, or crystalline residue around the base. Dried electrolyte that leaked from the capacitor's bottom seal. The capacitor is finished and may have corroded the solder joints and nearby traces.
• Physical damage from impact or vibration. A capacitor leaning sideways or snapped off its leads from mishandling, pest activity, or long-term vibration from a nearby inducer or blower.

What it means: electrolytic capacitors degrade with heat and age. A capacitor's lifespan roughly halves for every 10°C of ambient temperature above its rated max. Boards mounted in hot attics or near burner compartments age their capacitors fastest. Once a cap has swollen, its capacitance has dropped and its ESR (equivalent series resistance) has risen — the board's power supply or timing circuits start behaving erratically.

Symptoms a homeowner notices before anyone opens the board:

• Intermittent no-starts that clear after cycling power at the breaker
• Random lockouts with no clear flash code pattern
• LED behavior that looks slightly off — a half-dim blink, inconsistent flash intervals, or flickering during operation
• Equipment that works fine on cool days and fails on hot days, or vice versa (temperature-dependent capacitance drift)

What to do:

1. If the board is 10+ years old and shows any swelling, order the OEM replacement proactively. A board with aged capacitors fails completely at the worst possible time — a cold snap in January or a heat wave in July.
2. Do not attempt to replace individual capacitors unless the equipment is discontinued and no OEM board exists. The labor exceeds the cost of a new board, and the repair has no warranty.
3. After replacement, check the mounting environment. If the board is in an attic or an unventilated mechanical room running above 100°F for extended periods, the new board will age faster too. Improve ventilation if possible.

Signature 4: Melted or burned relay socket

What you are looking at: one of the small plastic relay sockets on the board, typically a square or rectangular black plastic housing with pins visible from above. On a healthy board, the plastic is intact and the pin solder joints are shiny.

Failure signs:

• Melted, distorted, or sagging plastic housing on the relay socket
• Scorch marks concentrated around a single relay rather than spread across the board
• Visible disconnection of the relay from the board (relay has lifted or fallen out of the socket)
• Burned solder joints on the pins beneath the relay (visible from the back of the board if accessible)

What it means: the specific circuit this relay drives experienced an overcurrent event long enough to melt the socket plastic. Common patterns:

• Blower relay melted → blower motor is drawing locked-rotor or shorted-winding current. Ohm the blower windings.
• Inducer relay melted → inducer motor is drawing excessive current. Ohm the inducer.
• Gas valve relay melted → gas valve coil is shorted or a wire pinch is grounding the gas-valve circuit.
• Humidifier or EAC relay melted → accessory downstream is drawing more than the relay's rating; often an improperly selected humidifier solenoid.

What to do:

1. Identify the downstream component on the melted relay. The board's silkscreen labels (BLW, IND, GV, HUM, EAC) point to the circuit.
   HVAC Control Board Visual Diagnosis Guide: Burnt, Flashing, and Damaged Boards in 2026
2. Ohm the downstream component for shorts to ground and for winding resistance against the spec.
3. Replace or repair the shorted component before installing a new board.
4. Order the OEM replacement board. A melted socket cannot be reliably repaired — the plastic deformation changes the pin contact geometry even if the solder joints are reflowed.
5. After installation, cycle the equipment through a full operating sequence and feel the new relay area for abnormal heat.

Visual diagnosis chart: signature to root cause to OEM part

The four signatures and their most likely causes:

Visual signature	Most likely root cause	What to replace
Scorch marks around a specific relay	Shorted downstream component (gas valve, inducer, blower)	OEM board + the shorted component
Scorch marks across multiple areas	Voltage surge, lightning, or failed transformer	OEM board + 24V transformer; consider surge protector
Swollen or leaking capacitors	Age and heat exposure (10+ years typical)	OEM board (full replacement, not individual caps)
Dim, flickering, or dead LED (24 VAC input present)	Internal board failure (regulator, microcontroller)	OEM board
Melted relay socket	Overcurrent through the specific relay (shorted load)	OEM board + the shorted downstream load
Clear flash code pattern, otherwise undamaged	Fault upstream (not the board)	The component the code names, not the board

Replace vs repair decision tree

For every HVAC control board failure in the field today, the decision is:

1. Is the board on a current-production system? If yes, replace with the OEM board. Component-level repair is not economical. Skip to step 4.
2. If no OEM board is available (discontinued equipment), check whether a quality universal (White-Rodgers, Honeywell, ICM) cross-references the original. For single-stage non-communicating systems, a universal usually works.
3. If no universal cross-references and the equipment is irreplaceable (specialty commercial, antique, hard-to-match configuration), component-level repair by a qualified electronics tech is the last option. Cost is usually $150 to $400 in labor plus parts.
4. Before installing the replacement: ohm every downstream component the suspect circuit drives, verify the low-voltage transformer output is 24 to 28 VAC, tighten every terminal connection, and inspect the thermostat wiring for shorts to ground or to each other.
5. After installation: cycle the system through a full operating sequence, read the LED to confirm normal operation, feel the board for abnormal heat after 15 minutes of runtime, and check the installation site for excessive heat or humidity that would shorten the new board's life.

Worked example: Furnace board with scorch marks around the gas-valve relay

Call: 10-year-old furnace, intermittent no-ignition faults, finally locked out completely with a 7-flash code (gas valve circuit fault).

Visual inspection: opened the burner door with power off. Control board showed clear brown scorch marks around the gas-valve relay (silkscreened GV on the board). No other scorching visible. Capacitors flat and normal. LED dead (consistent with locked-out state after multiple failed trials).

Root cause investigation: ohmed the gas valve coil between its two 24V terminals. Reading: 0.3 ohms. Spec for a healthy residential gas valve coil: 40 to 90 ohms. The valve coil had shorted internally. Every time the board commanded the valve open, the near-short pulled excessive current through the GV relay, generating heat and the scorch pattern.

Parts ordered:

• OEM gas valve matched to the furnace model ($180)
• OEM control board matched to the furnace model ($220)

Installation sequence: replaced the gas valve first, retested with the old board disconnected (confirmed the new valve coil read 65 ohms, within spec). Replaced the control board, verified every terminal was tight, powered up. LED showed normal slow blink. Thermostat called for heat, inducer ran, pressure switch closed, 24 VAC appeared cleanly at the gas valve terminals, burner lit on the first try. Full ignition sequence completed in 42 seconds.

Why both parts were needed: installing only the new board would have left the shorted valve coil to burn the new board within one or two cycles. Installing only the new valve would have left the board with permanent damage from the overcurrent event, risking intermittent failures in the near future. Fixing the root cause (valve) and replacing the collateral damage (board) is the only reliable path.

Total time: 90 minutes. Total parts cost: $400. Had the diagnosis been “just the board,” the repair would have failed within hours and the second visit would have doubled the labor.

Common control board diagnosis mistakes

Replacing the board without checking downstream for shorts. Scorch marks on a board are a symptom, not a cause. Replacing the board without ohming the gas valve, inducer, blower, or ignitor that the scorched relay drives will burn the new board on the first or second cycle. Always identify and fix the short first.

Interpreting a flash code as a board failure. A clean flash code pattern is the board doing its job — reporting a fault upstream. Replacing the board when the code says “6 flashes = ignition failure” wastes the price of the board; the failure is the ignitor, flame sensor, or gas valve, not the board.

Assuming a dead LED means a dead board. A dead LED can also mean no 24 VAC is reaching the board — a tripped service switch, a blown fuse on the board or in the air handler, or a failed low-voltage transformer. Always measure 24 VAC at the board's R-and-C input before declaring the board dead.

Replacing individual capacitors on an HVAC board. Component-level repair labor exceeds the cost of a new OEM board in nearly every case. The repair carries no warranty. For current-production equipment, always replace the whole board.

Installing a universal board on a communicating or inverter system. Universal boards cannot handle serial communication protocols (Carrier Infinity, Lennox iComfort), modulating gas valve PWM, variable-speed ECM blower drive, or inverter compressor control. OEM is required.

Skipping the retightening pass after installation. A loose 24V terminal on the new board arcs under load, which heats the terminal, which carbonizes the plastic, which starts the scorch cycle all over again. Spend 60 seconds with a screwdriver after installation.

Not installing a surge protector after a surge-caused failure. If the failure traced to a lightning event or utility surge, the next surge will kill the new board too. A whole-house surge protector at the main panel is $200 to $400 installed and extends every electronic in the house, not just HVAC.

Frequently asked questions

How can I tell if my HVAC control board is bad? Four visual tells: scorch marks around a relay or trace, swollen/leaking electrolytic capacitors, dim or dead LED with 24 VAC input confirmed, or melted relay sockets. Any one is a confirmed board failure. Without visible damage, confirm by measuring 24 VAC output on the correct call terminal during the correct operating stage.

What causes an HVAC control board to burn out? Shorted downstream component (gas valve, inducer, blower, ignitor), voltage surge or lightning, failed transformer feeding over-voltage, or long-term heat exposure that aged the capacitors.

What do swollen capacitors on a control board mean? Internal electrolyte decomposition from heat and age. Capacitance drops, ESR rises, board behaves erratically. Order the OEM replacement before complete failure.

Is a flashing LED a failure code or normal operation? A slow steady 1-Hz blink is usually normal. A repeating pattern with pauses is a fault code pointing to an upstream component. A dim, flickering, or dead LED (with 24 VAC input confirmed) is a dead board.

Can I repair a damaged HVAC control board instead of replacing it? In nearly all cases, no — the labor exceeds the cost of a new OEM board, and the repair carries no warranty. Replace with OEM.

Why did my new HVAC control board burn out shortly after installation? The original root cause (shorted downstream component, failed transformer, loose terminal) was not fixed before the new board went in. Ohm everything downstream before installing a replacement.

Should I use a universal control board or an OEM board? OEM for inverter-driven systems, ECM blowers, communicating thermostats, two-stage or modulating gas valves, or anything under parts warranty. Quality universals are acceptable on single-stage non-communicating systems.

What does a melted or burned relay socket mean? Overcurrent through the specific circuit that relay drives. Test the downstream load for shorts before installing a replacement board.

How long does an HVAC control board last? 10 to 20 years under normal conditions. Capacitors age first, around year 10 to 15. Hot attics and surge-prone locations shorten lifespan; conditioned mechanical rooms and surge-protected supplies extend it.

Does HVACMORE sell OEM control boards for every HVAC brand? Yes — Goodman, Lennox, York, Trane, Carrier, Rheem, Amana, Bryant, Payne, plus quality universal boards for single-stage non-communicating systems. Call 855-575-4822 with the equipment model, serial, and the board's OEM number for fitment confirmation.

Buying from HVACMORE

HVACMORE stocks OEM control boards for every major residential HVAC brand — Goodman, Lennox, York, Trane, Carrier, Rheem, Amana, Bryant, Payne — plus the quality universals (White-Rodgers, Honeywell, ICM) that cross-reference most single-stage non-communicating systems. From $90 universal furnace boards to $700 OEM inverter-driven AC boards, every part is cross-referenced against your equipment model and serial before the order ships.

What ordering OEM control boards from HVACMORE gets you:

• Fitment verified against your equipment model and serial before the order ships
• OEM part number cross-check for supersessions and renumbered SKUs
• Universal vs OEM guidance — the parts team will tell you honestly whether a universal is appropriate for your system or whether OEM is required
• Free shipping on eligible orders over $500
• Price match if you find the same OEM part number cheaper elsewhere
• Original manufacturer parts warranty preserved when the unit is in-warranty and the replacement is OEM
• 60-Day Money Back Guarantee
• 30-Day Hassle-Free Returns with no restocking fees

Not sure which board your diagnosis points to? Text or email photos of the equipment data plate and the failed board to the HVACMORE parts team, or call 855-575-4822 — US-based, Monday to Friday 8am–9pm ET, weekends included. Two photos and the visual signature (burnt, swollen caps, dead LED, melted socket) is all the counter needs to pull the right SKU.

The bottom line

A failed HVAC control board usually shows you exactly what killed it. Scorch marks mean a short downstream. Swollen capacitors mean age caught up. A dead LED with 24 VAC input confirmed means the board is finished. A melted relay socket means overcurrent through a specific circuit that must be fixed before the new board goes in. The visual diagnosis takes a flashlight, a camera, and five minutes. The repair is the OEM board plus whatever caused the failure in the first place — and skipping the root-cause fix is the single most common way a $300 board replacement becomes a $600 one. Photograph the board, identify the signature, call HVACMORE at 855-575-4822 with the equipment model and the board's OEM number, and get the right part the first time.
