• Goodman 3.5 Ton 13.6 SEER2 R-32 Air Conditioner + 100,000 BTU 80% AFUE Single-Stage Gas Furnace System - Horizontal

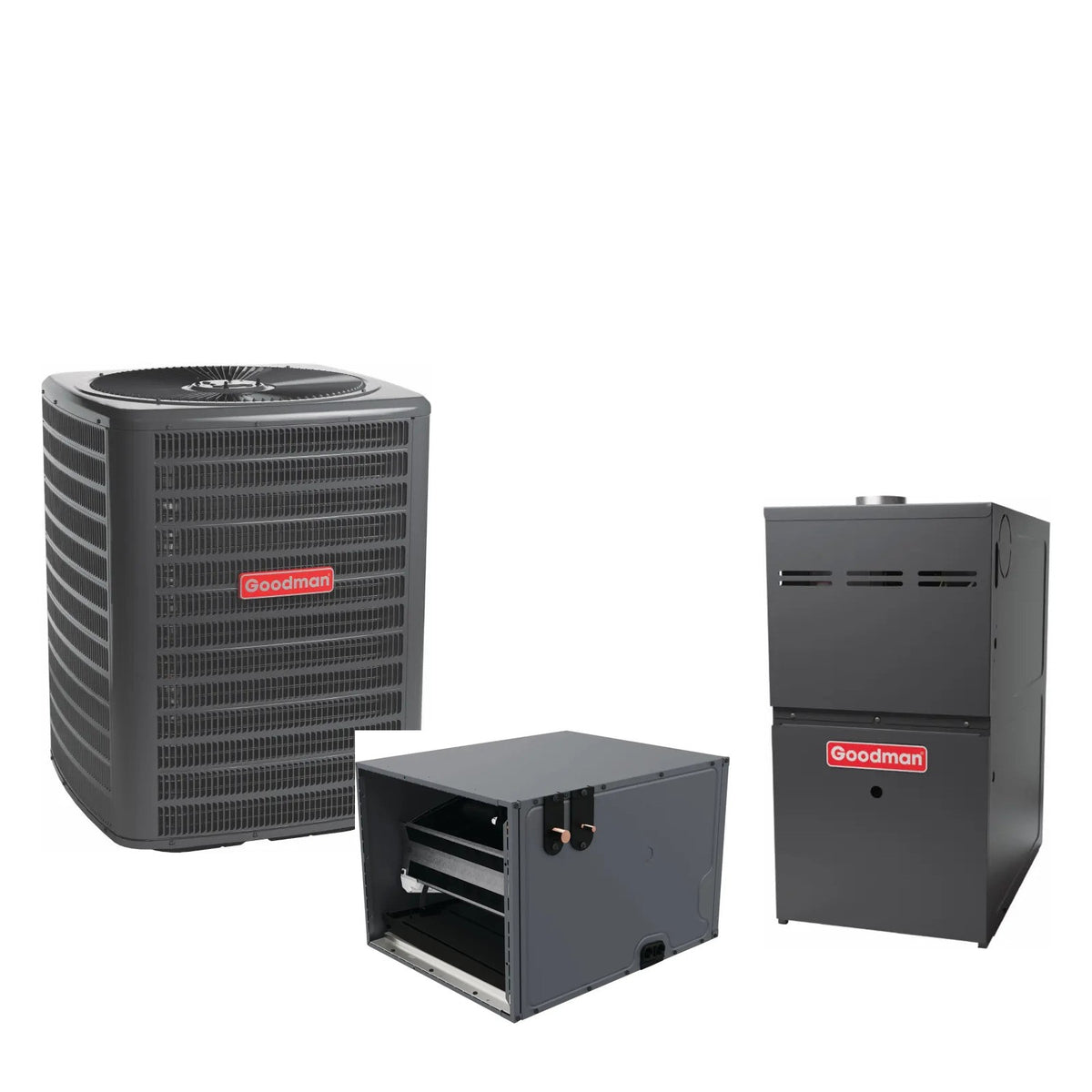

  • Goodman GLXS3BN4210 + CHPTA4230C3 + GR9S801005CN matched system
  • Goodman cond GLXS3BN4210
  • Goodman coil CHPTA4230C3
  • Goodman furn GR9S801005CN
  • Goodman 10 Year Warranty information label
  • Northern States Energy Guide 13.4 SEER2
  • Goodman Made in the USA
  • Goodman assembly line
1 9
In stock Ships in 1-2 business days

Goodman High Efficiency 3.5 Ton AC With 100K BTU Furnace

Model: GLXS3BN4210 / CHPTA4230C3 / GR9S801005CN

$4,753.00
$4,753.00
Sale Sold out
Free Shipping Free Shipping
$ Price Match $ Price Match
Ships in 1-2 Business Days Ships in 1-2 Business Days
Delivers in 1-5 Business Days Delivers in 1-5 Business Days
View full details

  • This factory-matched Goodman combination delivers reliable indoor climate control by pairing a 3.5 Ton outdoor condenser with a 100,000 BTU horizontal gas furnace and cased evaporator coil, eliminating guesswork for property owners replacing legacy HVAC systems or completing new construction projects.

    The GLXS3BN4210 condenser operates internally on R-32 refrigerant with a single-stage scroll compressor, achieving 13.6 SEER2 cooling efficiency while complying with EPA environmental mandates. The CHPTA4230C3 cabinet secures a factory-installed TXV and routes conditioned air horizontally, matching standard residential duct layouts and simplifying retrofit installations.

    Interior heating relies on the GR9S801005CN furnace, which modulates combustion at a single stage but drives a multi-speed ECM blower to align airflow precisely with thermostat call. This step-variable delivery minimizes temperature stratification and operational noise. An aluminized-steel tubular heat exchanger pairs with a self-diagnostic control board for straightforward maintenance, while high- and low-pressure switches combined with a factory filter drier protect the compressor against moisture and pressure spikes.

    System Specifications & Features

    • Cooling Rating: 3.5 Tons (42,000 BTU) at 13.6 SEER2
    • Heating Performance: 100,000 BTU input delivering 80% AFUE
    • Refrigerant Platform: R-32 with optional LP conversion capability
    • Hardware Layout: Horizontal cased coil and furnace assembly
    • Build Quality: Copper tube / aluminum fin condenser, powder-coated louvered cabinet, designed and assembled in the USA

    Register your professional installation within sixty days to activate the ten-year parts limited warranty. Each unit leaves the manufacturing line AHRI-certified, guaranteeing verified seasonal performance without requiring field balancing or manual component matching.

  • Free Shipping on All HVAC Orders Plus a 10-Year Warranty

    Warranty

    Enjoy a 10-year limited parts warranty when you register your unit within 60 days of installation. A properly certified professional must complete the installation in compliance with city, state, and federal laws.
