• Goodman 3.5 Ton 13.4 SEER2 R-32 Air Conditioner + 80,000 BTU 96% AFUE Single-Stage Gas Furnace System - Horizontal

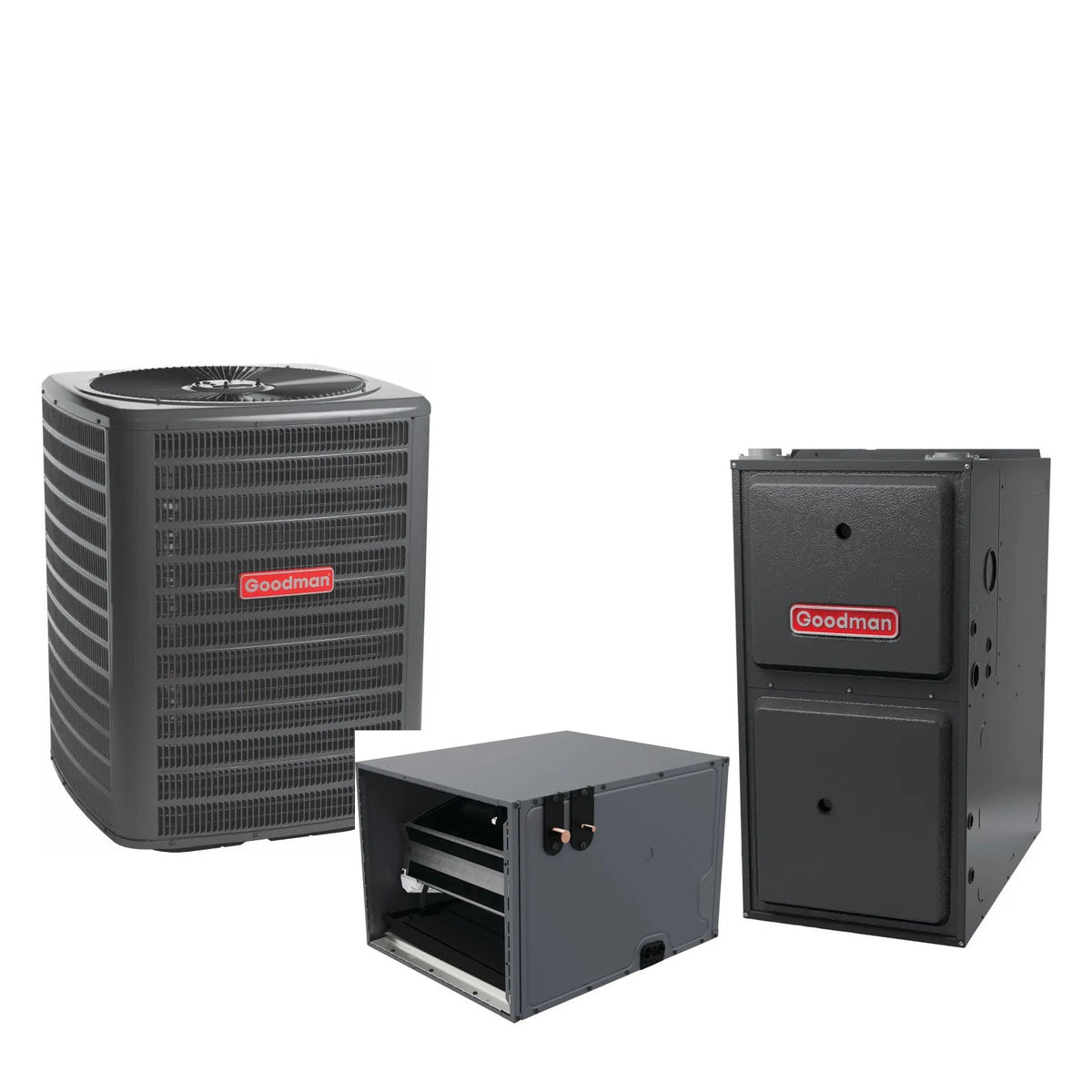

  • Goodman GLXS3BN4210 + CHPTA4230C3 + GR9S960804CN matched system
  • Goodman cond GLXS3BN4210
  • Goodman coil CHPTA4230C3
  • Goodman furn GR9S960804CN
  • Goodman 10 Year Warranty information label
  • Northern States Energy Guide 13.4 SEER2
  • Goodman Made in the USA
  • Goodman assembly line
1 9
In stock Ships in 1-2 business days

Goodman 3.5 Ton Central Air Conditioner With 80K Btu Gas Furnace

Model: GLXS3BN4210 / CHPTA4230C3 / GR9S960804CN

$5,434.00
$5,434.00
Sale Sold out
Free Shipping Free Shipping
$ Price Match $ Price Match
Ships in 1-2 Business Days Ships in 1-2 Business Days
Delivers in 1-5 Business Days Delivers in 1-5 Business Days
View full details

  • The Goodman GLXS3BN4210 pairing delivers matched 3.5-ton cooling and 80,000-BTU single-stage heating in one factory-commissioned package engineered for straight-through residential replacements.

    This complete HVAC system eliminates compatibility guesswork by combining a single-stage scroll outdoor condenser, a horizontally mounted evaporator cabinet with a factory-installed TXV, and a 96% AFUE gas furnace. The horizontal layout accommodates tight attic, crawlspace, and utility closet footprints where vertical clearance limits standard stack installations. Copper-tube and aluminum-fin condenser coils are housed behind a louvered, powder-coated steel cabinet to resist UV degradation and salt-air corrosion without frequent refinishing.

    Operating on R-32 refrigerant, the system complies with current EPA transition standards while maintaining 13.4 SEER2 cooling efficiency. The accompanying GR9S960804CN furnace relies on an aluminized-steel tubular heat exchanger and a single-stage gas valve to deliver consistent warmth across moderate winter loads. A multi-speed ECM blower reduces amperage draw during partial-run cycles, lowering annual electricity consumption compared to legacy PSC blowers. Integrated high- and low-pressure safeguards, along with a factory-mounted filter drier, shield the compressor from vacuum collapse and liquid-line flooding.

    • Cooling Performance: 3.5-ton capacity, 13.4 SEER2 rating, 42,000 BTU sensible/total output
    • Heating Rating: 80,000 BTU input, 96% AFUE thermal efficiency, single-stage combustion sequence
    • Controls & Protection: On-board self-diagnostic circuitry, dual-cycle safety switches, field-ready conversion kit for propane fuel switching
    • Service Coverage: 10-year parts limited warranty triggered by online registration within 60 days of professional commissioning

    All chassis, wiring harnesses, and electronic controls are engineered and assembled in the United States to adhere to strict UL-certified manufacturing tolerances. Confirm existing ductstatic pressure ratings and Manual-J heat loads prior to final ordering, as accurate airflow balancing prevents coil freeze-up, minimizes short-cycling, and extends component lifespan.

  • Free Shipping on All HVAC Orders Plus a 10-Year Warranty

    Warranty

    Enjoy a 10-year limited parts warranty when you register your unit within 60 days of installation. A properly certified professional must complete the installation in compliance with city, state, and federal laws.
