• Goodman 2.5 Ton 14 SEER2 R-32 Air Conditioner + 80,000 BTU 96% AFUE Single-Stage Gas Furnace System - Upflow | GLXS3BN3010 / CAPTA3626C3 / GR9S960804CN

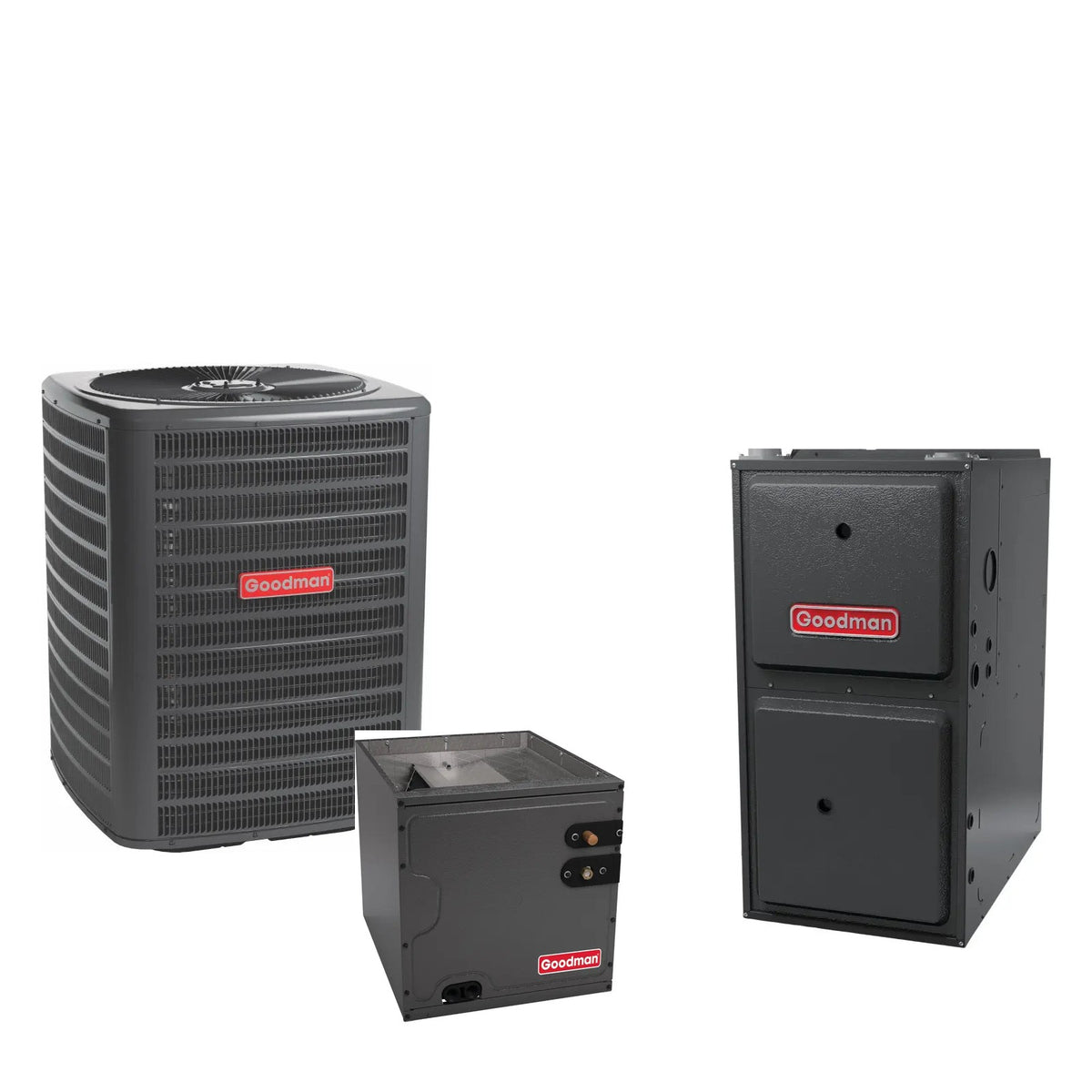

  • Goodman GLXS3BN3010 + CAPTA3626C3 + GR9S960804CN matched system

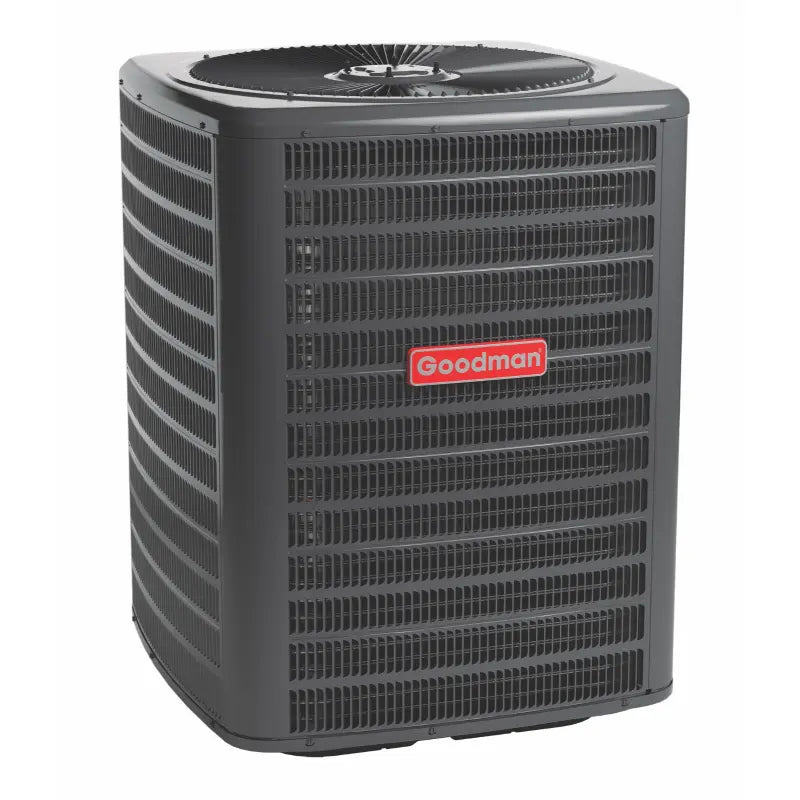

  • Goodman cond GLXS3BN3010

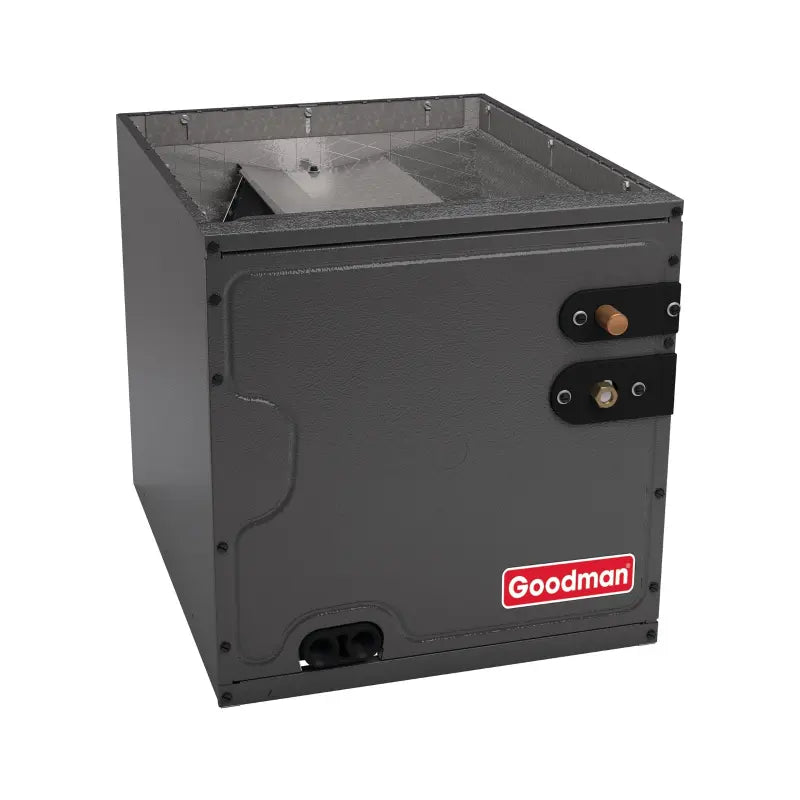

  • Goodman coil CAPTA3626C3
  • Goodman furn GR9S960804CN
  • Goodman 10 Year Warranty information label
  • Northern States Energy Guide 13.4 SEER2
  • Goodman Made in the USA
  • Goodman assembly line
1 9
In stock Ships in 1-2 business days

Goodman 2.5 Ton 14 SEER2 R32 Upflow AC 80K 96 AFUE Furnace System

Model: GLXS3BN3010 / CAPTA3626C3 / GR9S960804CN

$4,856.00
$4,856.00
Sale Sold out
Free Shipping Free Shipping
$ Price Match $ Price Match
Ships in 1-2 Business Days Ships in 1-2 Business Days
Delivers in 1-5 Business Days Delivers in 1-5 Business Days
View full details

  • A matched single-stage heating and cooling trio designed for residential upflow distribution, the Goodman split-system bundle delivers 2.5 tons of sensible cooling alongside 96% efficient forced-air warmth in one coordinated assembly. The outdoor GLXS3BN3010 condenser connects directly to the cased CAPTA3626C3 evaporator coil—featuring a factory-installed thermal expansion valve—and routes conditioned air into the GR9S960804CN gas furnace, eliminating field-matching variables and reducing installation labor.

    Cooling capacity scales to 30,000 BTU at 14 SEER2 efficiency, driven by a single-stage scroll compressor running on R-32 refrigerant. R-32 replaces phased-out R-410A and meets current EPA refrigerant standards, with full manufacturer service inventory available through the mandated phase-down timeline. The copper-tube and aluminum-fin condenser coils reside inside a louvered, powder-coated steel chassis engineered to deflect hail and resist coastal salt corrosion. On the interior side, the 21-inch-deep evaporator cabinet bolts directly to standard 2x4 horizontal supply plenums without custom fabrication.

    Heating performance centers on a 96% AFUE aluminized-steel tubular heat exchanger that maximizes exhaust heat recovery. A single-stage gas valve regulates fuel input against a multi-speed ECM inducer and blower combination, dropping power draw compared to legacy PSC motors while smoothing out indoor temperature swings. The embedded self-diagnostic control board records operating codes and fault history for faster contractor diagnostics, while high- and low-pressure safety switches and a factory filter drier shield the compressor from moisture ingress and extreme pressure spikes.

    • US-manufactured engineering and assembly aligned with Standard North American duct layouts
    • EPA-compliant R-32 refrigerant loaded at the factory with leak-tested charging verification
    • Liquid propane convertible via approved LP conversion hardware
    • 10-year parts limited warranty activated after online registration within 60 days of professional installation

  • Free Shipping on All HVAC Orders Plus a 10-Year Warranty

    Warranty

    Enjoy a 10-year limited parts warranty when you register your unit within 60 days of installation. A properly certified professional must complete the installation in compliance with city, state, and federal laws.

    Processing Time

    We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.

    Equipment Arrival

    Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.

    Making Notes on the Delivery Receipt

    If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as “Clear.”

    If items or boxes are missing, mark the receipt as "Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."

    How Do I Handle a Damaged Shipment?

    If any items are damaged, mark the receipt as "Damaged", specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company™ claims department directly to file a claim.
