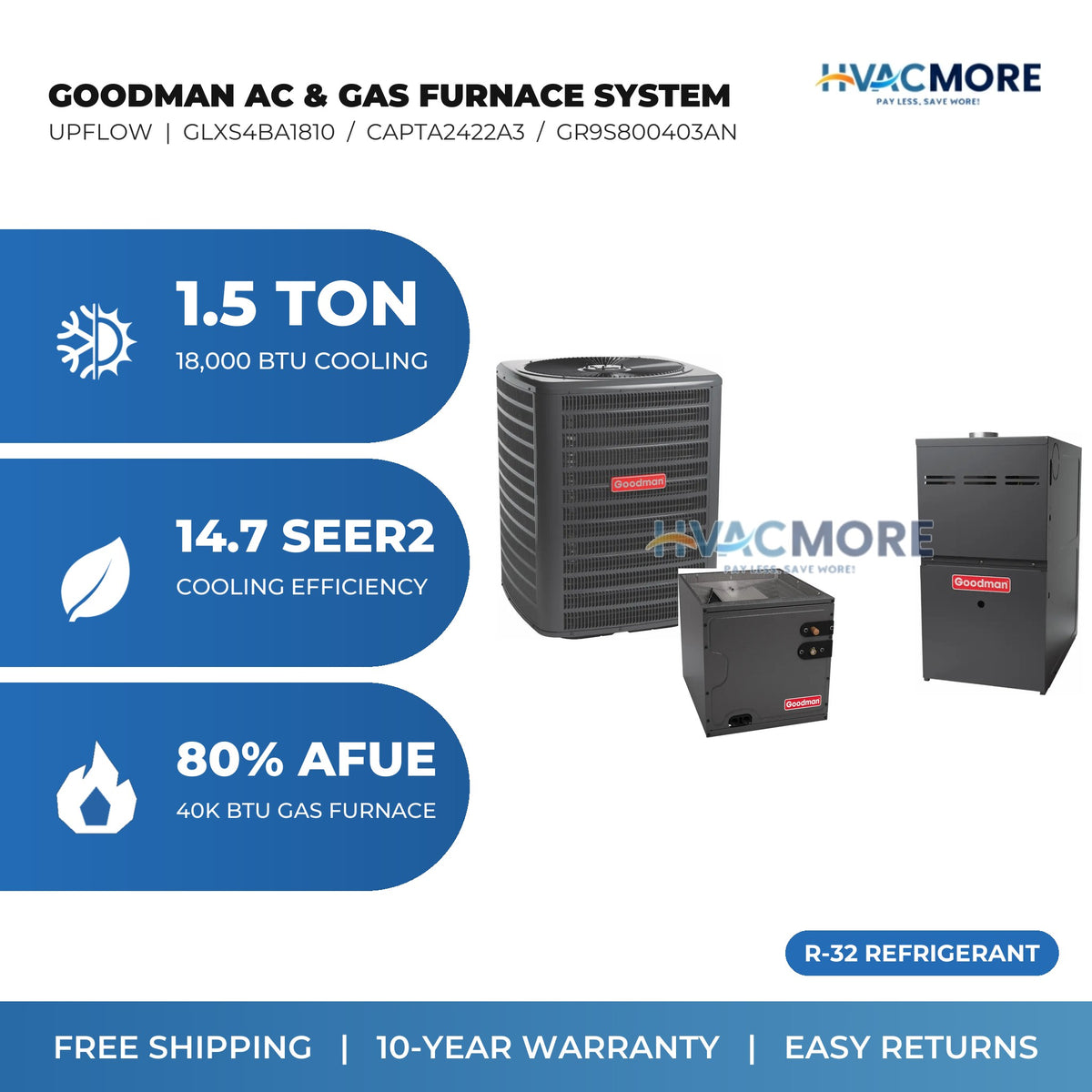

• Goodman 1.5 Ton 14.7 SEER2 R-32 Air Conditioner + 40,000 BTU 80% AFUE Single-Stage Gas Furnace System - Upflow

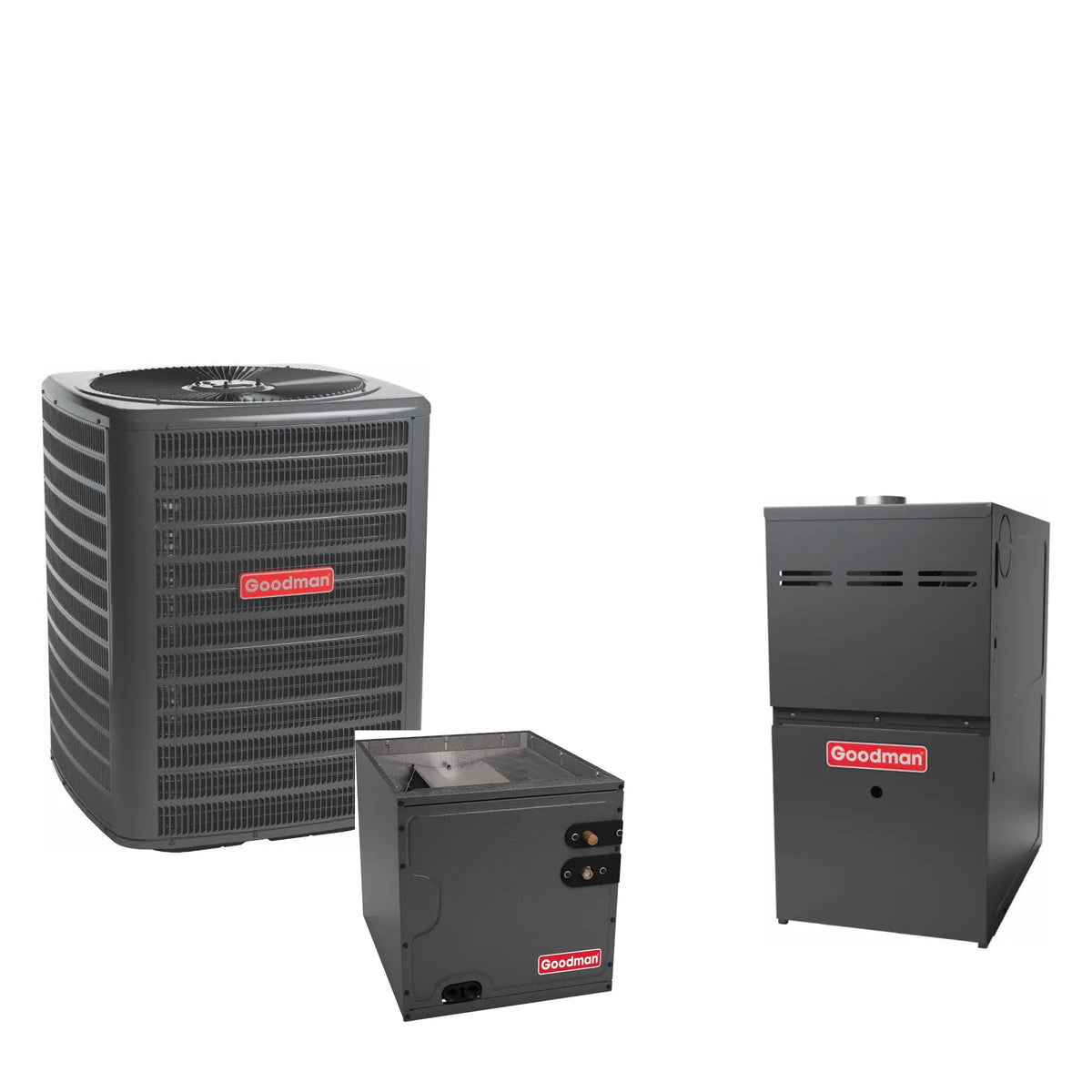

  • Goodman GLXS4BA1810 + CAPTA2422A3 + GR9S800403AN matched system
  • Goodman cond GLXS4BA1810

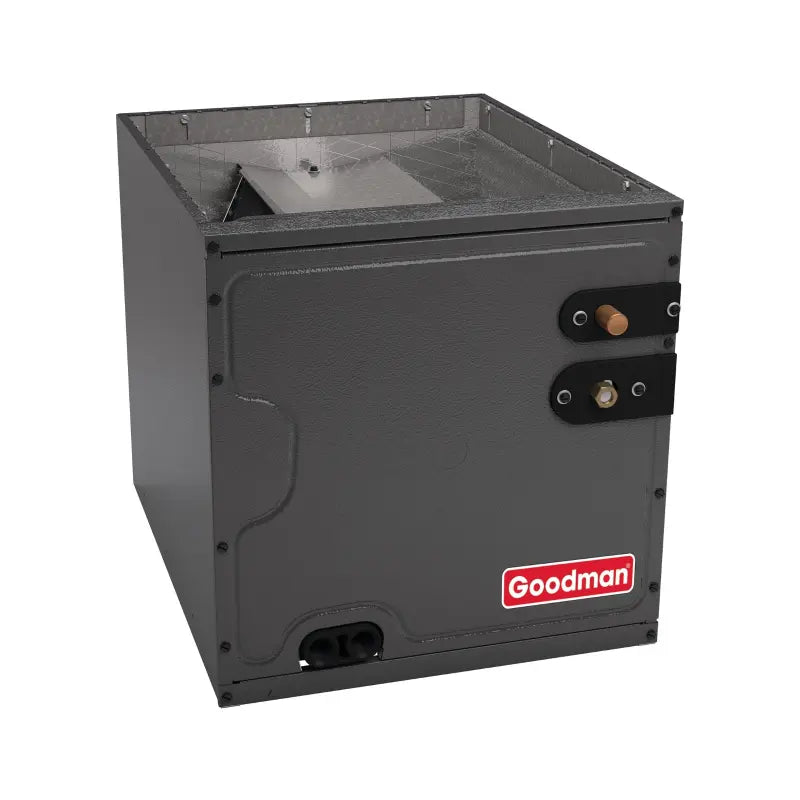

  • Goodman coil CAPTA2422A3
  • Goodman furn GR9S800403AN
  • Goodman 10 Year Warranty information label
  • Nationwide Energy Guide 14.3 SEER2
  • Goodman Made in the USA
  • Goodman assembly line
1 9
In stock Ships in 1-2 business days

Goodman 1.5 Ton Air Conditioner And 40K Btu Furnace Complete Hvac System

Model: GLXS4BA1810 / CAPTA2422A3 / GR9S800403AN

$3,669.00
$3,669.00
Sale Sold out
Free Shipping Free Shipping
$ Price Match $ Price Match
Ships in 1-2 Business Days Ships in 1-2 Business Days
Delivers in 1-5 Business Days Delivers in 1-5 Business Days
View full details

  • The Goodman GLXS4BA1810 and GR9S800403AN complete split system packages a factory-matched 1.5-ton outdoor condenser, an upflow cased evaporator coil, and a 40,000-BTU gas furnace into one AHRI-certified assembly. Designed for mid-size residential zones, the setup meets current EPA refrigerant standards by utilizing R-32 instead of older R-410A formulations, reducing environmental impact while delivering steady cooling capacity.

    Factory-Matched Cooling and Heating Performance

    The GLXS4BA1810 outdoor unit delivers 14.7 SEER2 efficiency through a single-stage scroll compressor and copper-tube aluminum-fin condenser, protected by a powder-coated louvered cabinet. It partners directly with the CAPTA2422A3 indoor cased evaporator, which features a factory-installed thermostatic expansion valve and a 14-inch configuration optimized for standard upflow ductwork layouts. The paired GR9S800403AN gas furnace provides 40,000 BTU of heating input at 80% AFUE. A single-stage gas valve controls fuel flow, while a multi-speed ECM blower continuously adjusts fan RPM to stabilize room temperatures, dampen operational noise, and align motor draw with actual load demand.

    Structural Durability and Service Planning

    Compressor longevity is reinforced by integrated high- and low-pressure switches alongside a factory-installed filter drier that captures moisture and particles before they reach vulnerable components. The furnace employs an aluminized-steel tubular heat exchanger guided by a self-diagnostic control board that monitors spark ignition and logs fault codes for straightforward technician troubleshooting. Both assemblies are designed, engineered, and produced in the United States. Property managers or homeowners in propane-dense markets can switch fuels using an optional LP conversion kit. Apply the 10-year parts limited warranty by registering the serial numbers online within 60 days of certified installation.

  • Free Shipping on All HVAC Orders Plus a 10-Year Warranty

    Warranty

    Enjoy a 10-year limited parts warranty when you register your unit within 60 days of installation. A properly certified professional must complete the installation in compliance with city, state, and federal laws.

    Processing Time

    We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.

    Equipment Arrival

    Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.

    Making Notes on the Delivery Receipt

    If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as “Clear.”

    If items or boxes are missing, mark the receipt as "Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."

    How Do I Handle a Damaged Shipment?

    If any items are damaged, mark the receipt as "Damaged", specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company™ claims department directly to file a claim.
