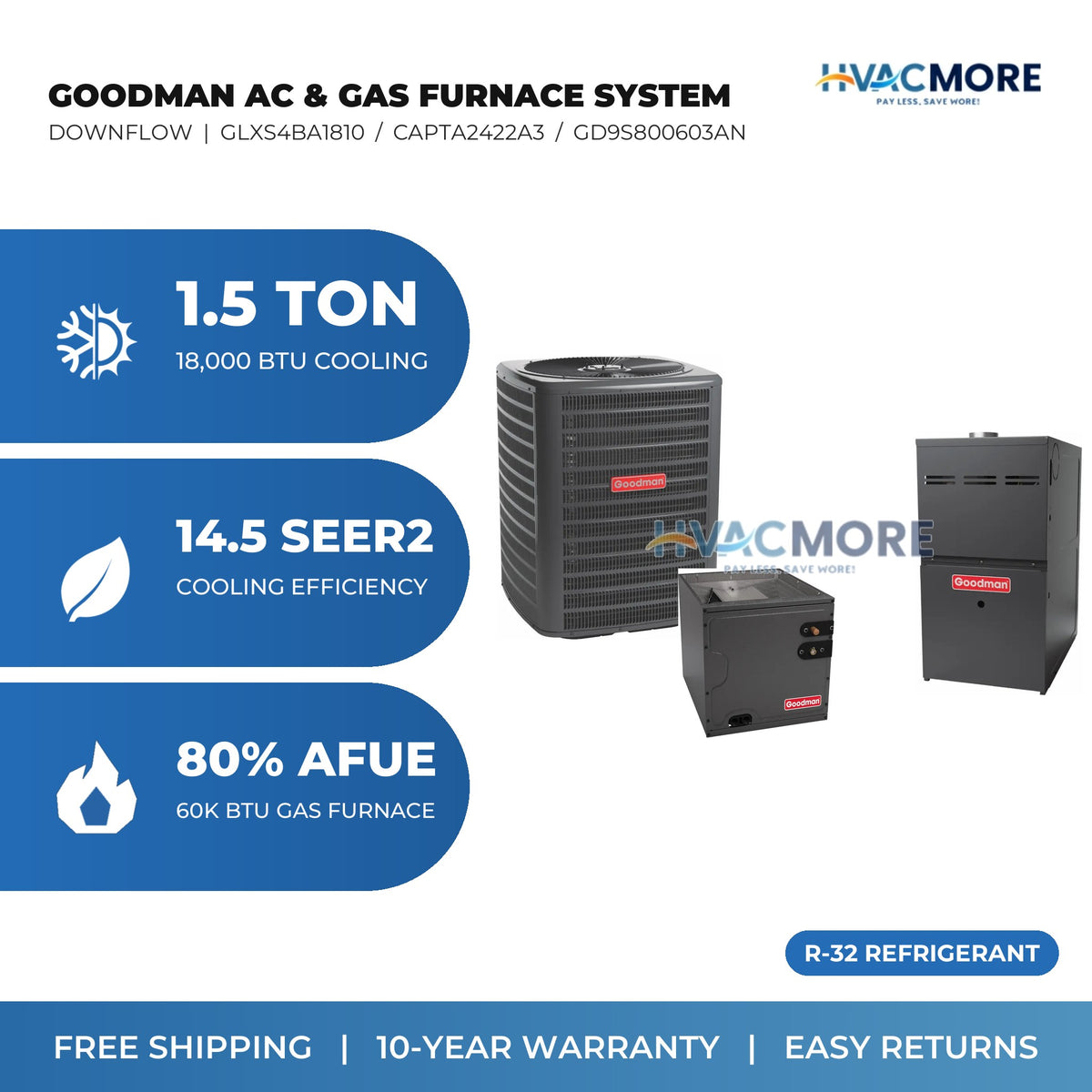

• Goodman 1.5 Ton 14.5 SEER2 R-32 Air Conditioner + 60,000 BTU 80% AFUE Single-Stage Gas Furnace System - Downflow | GLXS4BA1810 / CAPTA2422A3 / GD9S800603AN

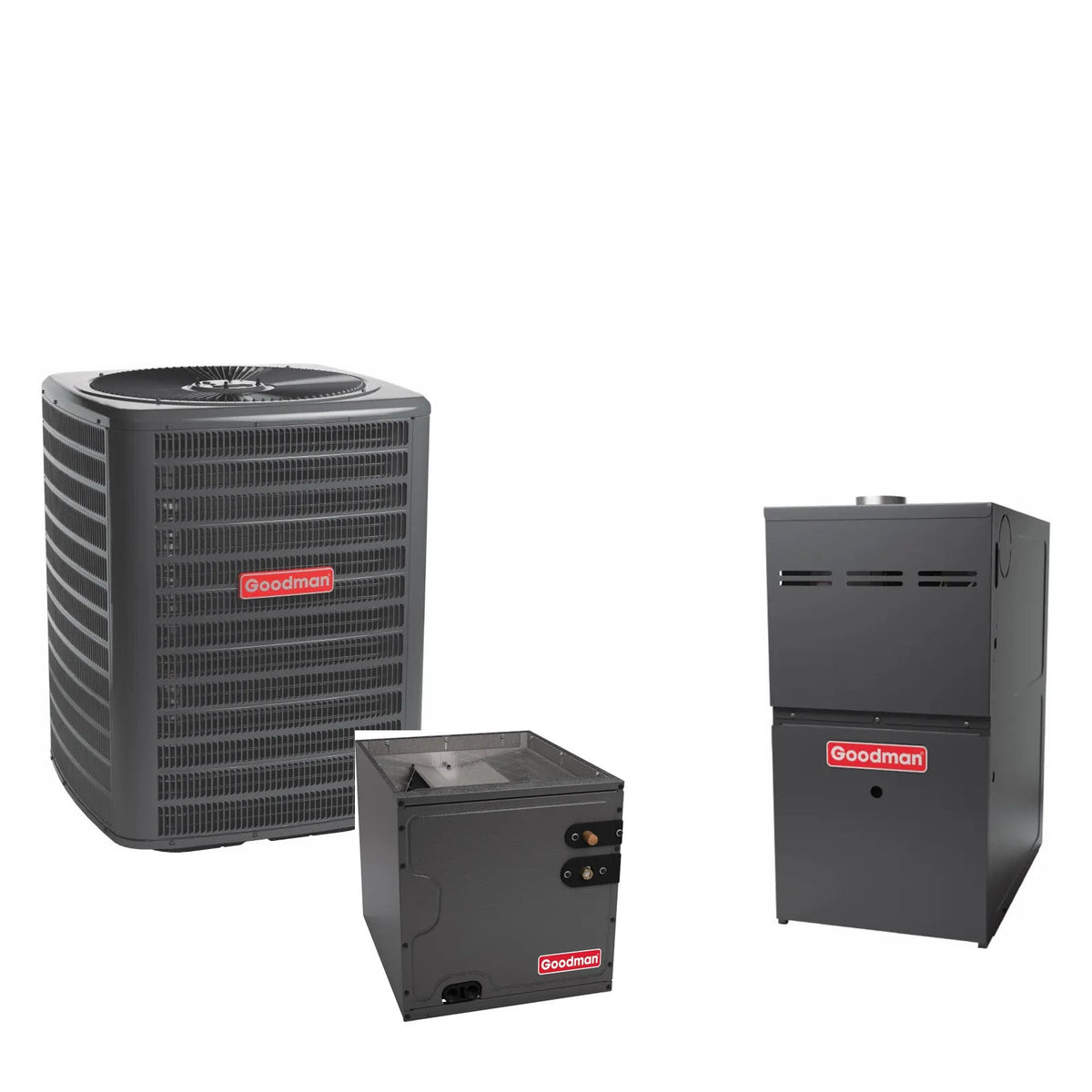

  • Goodman GLXS4BA1810 + CAPTA2422A3 + GD9S800603AN matched system
  • Goodman cond GLXS4BA1810

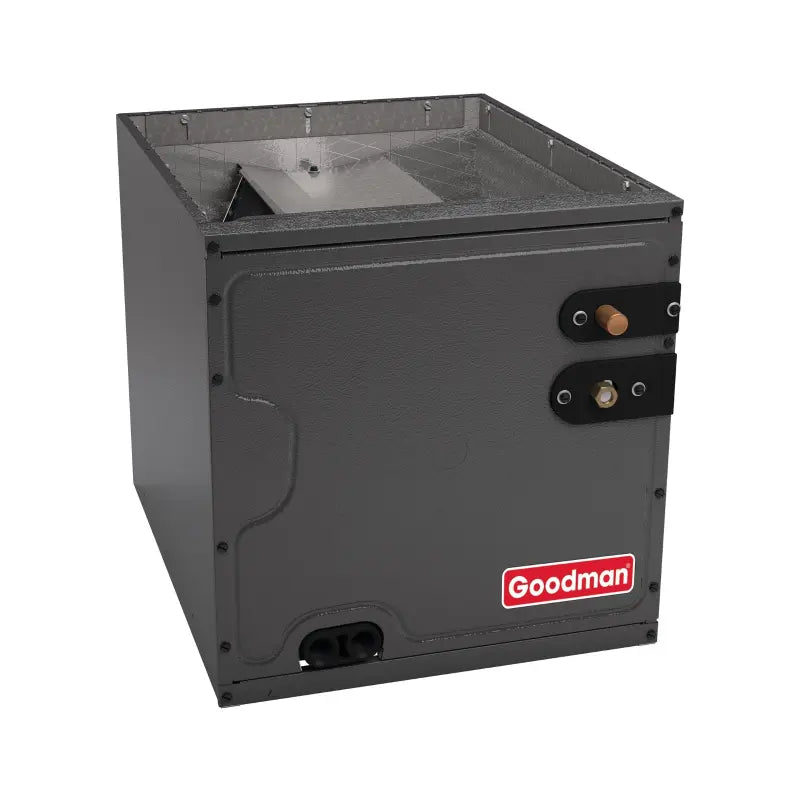

  • Goodman coil CAPTA2422A3

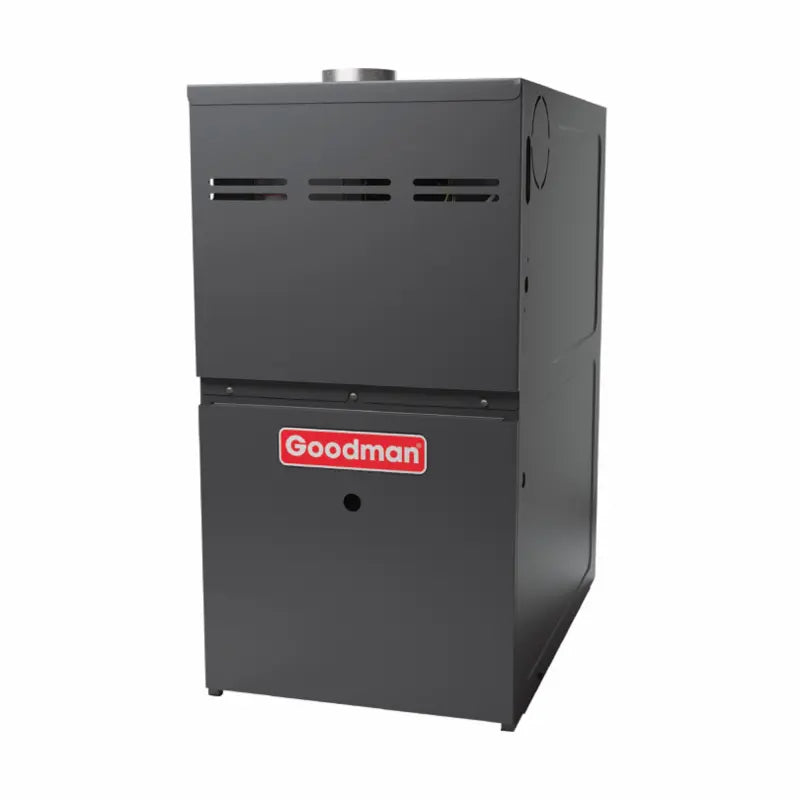

  • Goodman furn GD9S800603AN
  • Goodman 10 Year Warranty information label
  • Nationwide Energy Guide 14.3 SEER2
  • Goodman Made in the USA

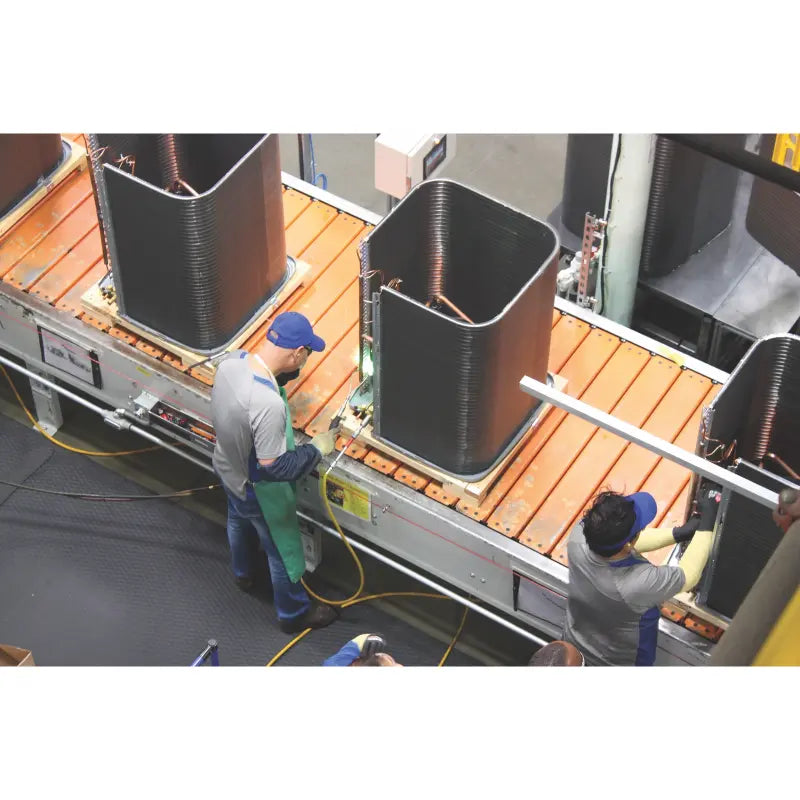

  • Goodman assembly line
1 9
In stock Ships in 1-2 business days

Goodman 1.5 Ton AC Furnace System 14.5 SEER2 60K BTU Downflow Matched Package

Model: GLXS4BA1810 / CAPTA2422A3 / GD9S800603AN

$3,786.00
$3,786.00
Sale Sold out
Free Shipping Free Shipping
$ Price Match $ Price Match
Ships in 1-2 Business Days Ships in 1-2 Business Days
Delivers in 1-5 Business Days Delivers in 1-5 Business Days
View full details

  • The Goodman 1.5 Ton 14.5 SEER2 Matched Package delivers a complete HVAC solution for residential applications requiring a downflow configuration. This bundle integrates the GLXS4BA1810 outdoor condenser, CAPTA2422A3 cased evaporator coil, and GD9S800603AN gas furnace into a unified system engineered for direct compatibility. Manufactured in the USA, all components interact to provide stable cooling and heating performance while minimizing efficiency losses associated with unmatched equipment.

    Component Technical Overview

    The GLXS4BA1810 condenser generates 1.5 tons of cooling at 14.5 SEER2 ratings using R-32 refrigerant. This fluid meets current EPA standards with a lower global warming potential than older alternatives. The outdoor unit employs a single-stage scroll compressor and features a copper tube with aluminum fin coil. The assembly rests inside a louvered cabinet finished with powder coating to resist corrosion.

    The matching CAPTA2422A3 evaporator coil is designed specifically for downflow installation within a 14-inch cabinet height. It includes a factory-installed thermostatic expansion valve (TXV) and a filter drier to ensure proper metering and compression longevity. Integrated high- and low-pressure switches automatically protect the system from dangerous pressure fluctuations.

    The GD9S800603AN gas furnace provides 60,000 BTU heating input at 80% Annual Fuel Utilization Efficiency (AFUE). An aluminized-steel tubular heat exchanger withstands thermal cycling, while a self-diagnostic control board monitors operations and reports status codes. A multi-speed ECM blower motor modulates airflow to reduce noise levels and improve temperature consistency. The furnace accepts an optional LP kit for propane conversion.

    Key Performance Features

    • Downflow Configuration: Positions supply ductwork above the return grille, serving raised slabs, second-level condos, or commercial spaces where upflow clearance is restricted.
    • ECM Blower Motor: The electronically commutated motor adjusts speed dynamically based on load, consuming less electricity than standard motors and enhancing humidity removal.
    • Self-Diagnostics: Embedded controls track system parameters and display error codes to streamline technician troubleshooting.
    • Fuel Flexibility: Available for natural gas or liquid propane, offering versatility for properties with different fuel sources.

    Specifications

    • Cooling Capacity: 1.5 Ton (18,000 BTU)
    • Cooling Efficiency: 14.5 SEER2
    • Refrigerant: R-32
    • Condenser Model: GLXS4BA1810
    • Cased Coil Model: CAPTA2422A3
    • Furnace Model: GD9S800603AN
    • Heating Input: 60,000 BTU
    • Heating Efficiency: 80% AFUE
    • Furnace Stage: Single-Stage
    • Blower Type: Multi-Speed ECM
    • Warranty: 10-Year Limited Parts Warranty (requires online registration within 60 days of installation)

  • Free Shipping on All HVAC Orders Plus a 10-Year Warranty

    Warranty

    Enjoy a 10-year limited parts warranty when you register your unit within 60 days of installation. A properly certified professional must complete the installation in compliance with city, state, and federal laws.
