Goodman 1.5 To 2 Ton Cased Horizontal Evaporator A Coil TXV 26W X 21H R32

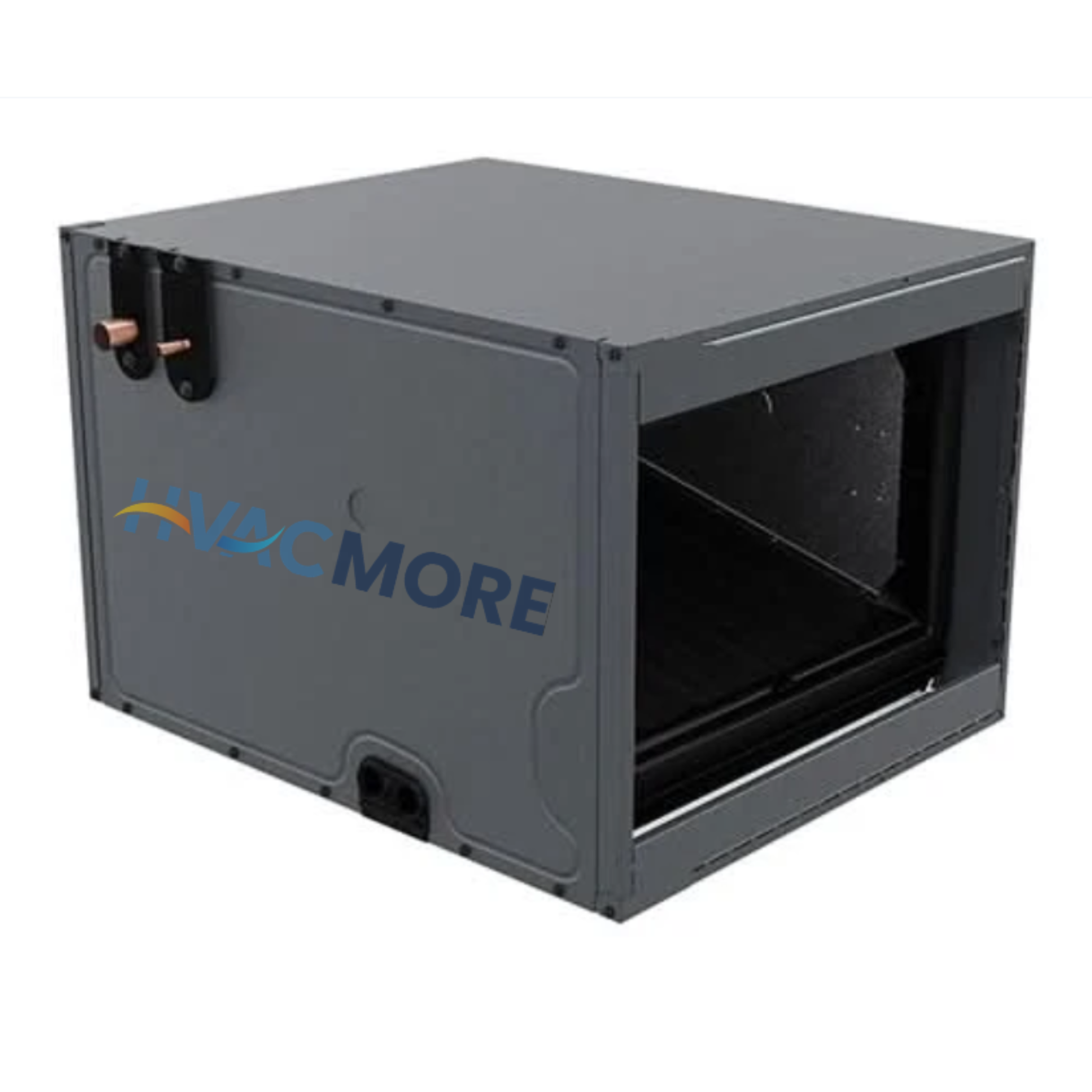

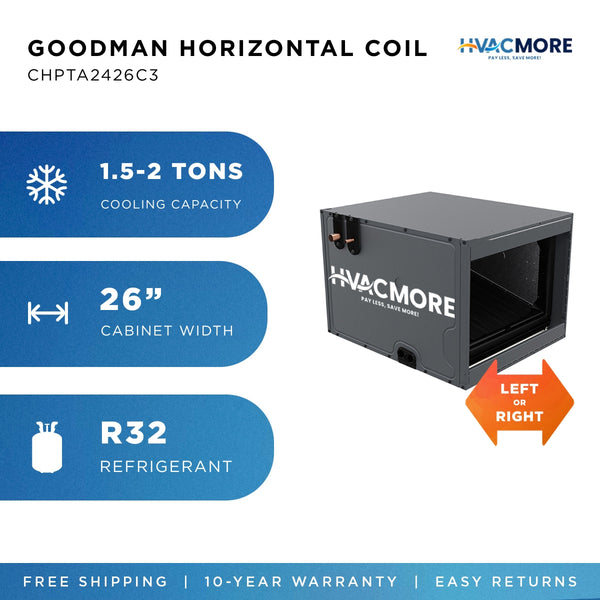

Meet the Goodman CHPTA2426C3 1.5–2 Ton Cased Horizontal Evaporator A Coil. Engineered for flexible, high- efficiency cooling, this coil keeps a slim profile while expanding installation options with a taller 21" cabinet. If you need more space for wiring, plenum routing, or larger ducts, this model delivers the same trusted 1.5–2 ton capacity in a footprint designed for demanding attic and crawlspace setups.

Why this coil stands out

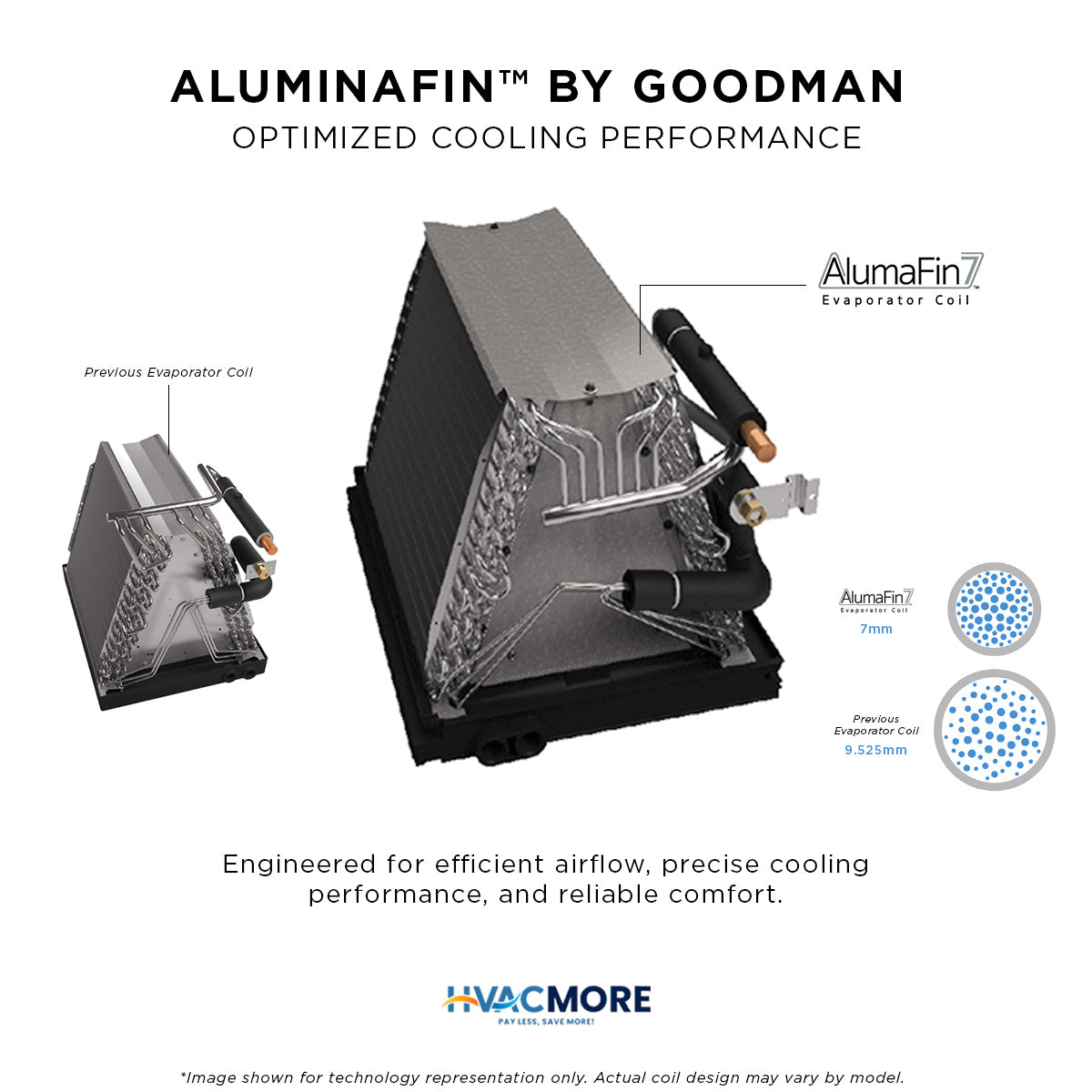

• All-aluminum construction delivers superior corrosion resistance and long-lasting durability, even in challenging basement or attic environments.
• Factory-installed TXV provides precise refrigerant flow, improving cooling performance and overall system efficiency across the 1.5–2 ton range.
• R-32 refrigerant optimization lowers global warming potential while maintaining strong cooling capability, helping you meet eco-conscious goals without sacrificing comfort.
• Horizontal orientation designed for attic and crawlspace installations, offering greater placement flexibility in spaces with limited vertical clearance.
• 21" cabinet depth accommodates easier attic access and wiring/ductwork routing in tight spaces, reducing installation headaches.
• Foil-faced insulation minimizes cabinet condensation, protecting surrounding surfaces and reducing humidity-related concerns.
• Rust-resistant drain pan with secondary drain connections enhances reliability and provides an additional safeguard against condensate issues.
• AHRI Certified and ETL Listed for verified performance and safety adherence, giving you confidence in long-term operation.
• 10-year limited parts warranty when registered within 60 days of installation, offering additional peace of mind.

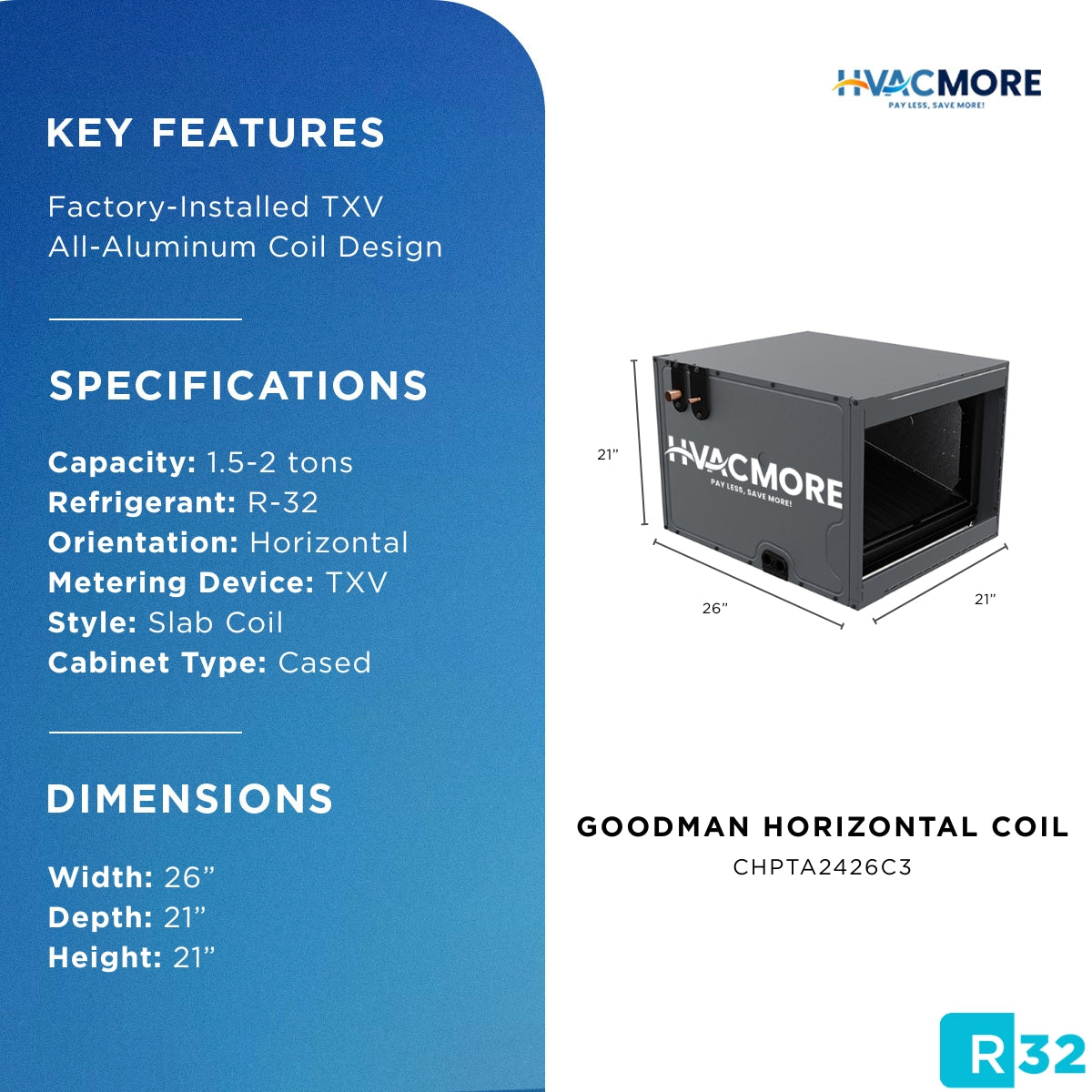

Specifications at a glance

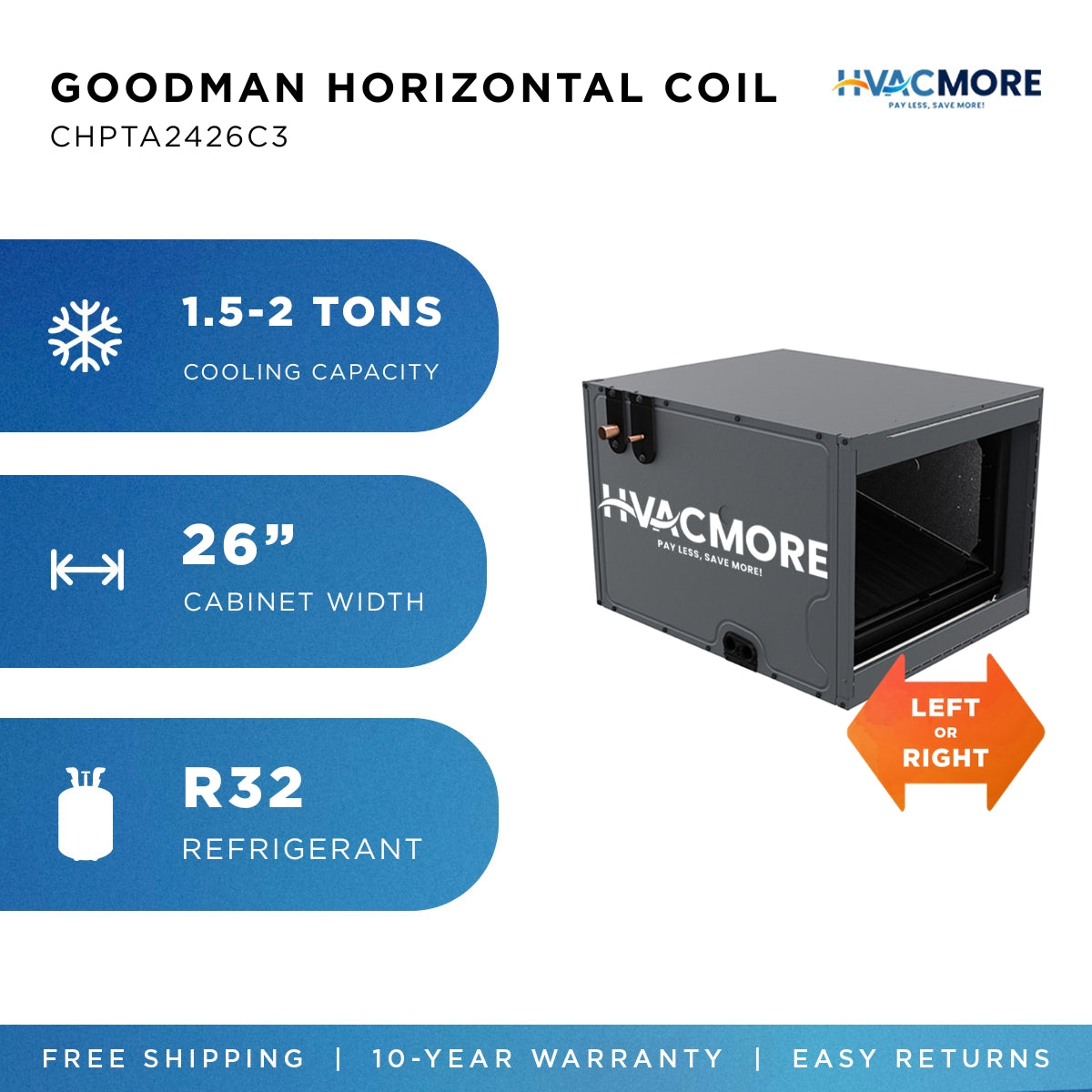

• Tonnage: 1.5–2 Ton (18,000–24,000 BTU)
• Cabinet size: 26"W x 21"D x 21"H
• Refrigerant: R-32
• Metering device: Factory TXV
• Orientation: Horizontal
• Compatibility: Pairs with Goodman R-32 condensers and heat pumps. Requires a compatible condenser and furnace or blower (sold separately).

What this means for your cooling system

This evaporator coil is built to deliver dependable comfort across a range of installations. The vertical space savings of a horizontal coil, combined with the 21" depth, open up attic and crawlspace possibilities that are often off-limits with deeper units. The TXV ensures consistent performance across varying indoor temperatures and load conditions, while the R-32 refrigerant keeps your system aligned with modern environmental standards.

Ideal use cases

• Attic installations where cabinet depth and duct routing are constrained, but you still need robust 1.5–2 ton cooling capacity.
• Crawlspace mechanical rooms requiring a horizontal, compact, yet capable evaporator coil.
• Retrofits or replacements in Goodman systems where an all-aluminum, corrosion-resistant coil with TXV metering provides improved efficiency.
• New installations aiming for eco-friendly refrigerants with solid performance and a durable, long-lasting build.

installation and compatibility notes

Pair this evaporator coil with a Goodman R-32 condenser or heat pump and a compatible furnace or blower. Because the CHPTA2426C3 is a cased horizontal coil with a taller cabinet, verify that available space accommodates the 26"W x 21"D x 21"H dimensions and that ductwork, plenum, and clearance clearances are designed for horizontal orientation. Registration within 60 days of installation is required to activate the 10-year parts warranty.

Choose the Goodman CHPTA2426C3 for a reliable, space-flexible evaporator coil that prioritizes efficiency, durability, and installation versatility without compromising cooling performance. It’s the thoughtful upgrade for attic-friendly layouts, quiet operation, and long-term system reliability.
