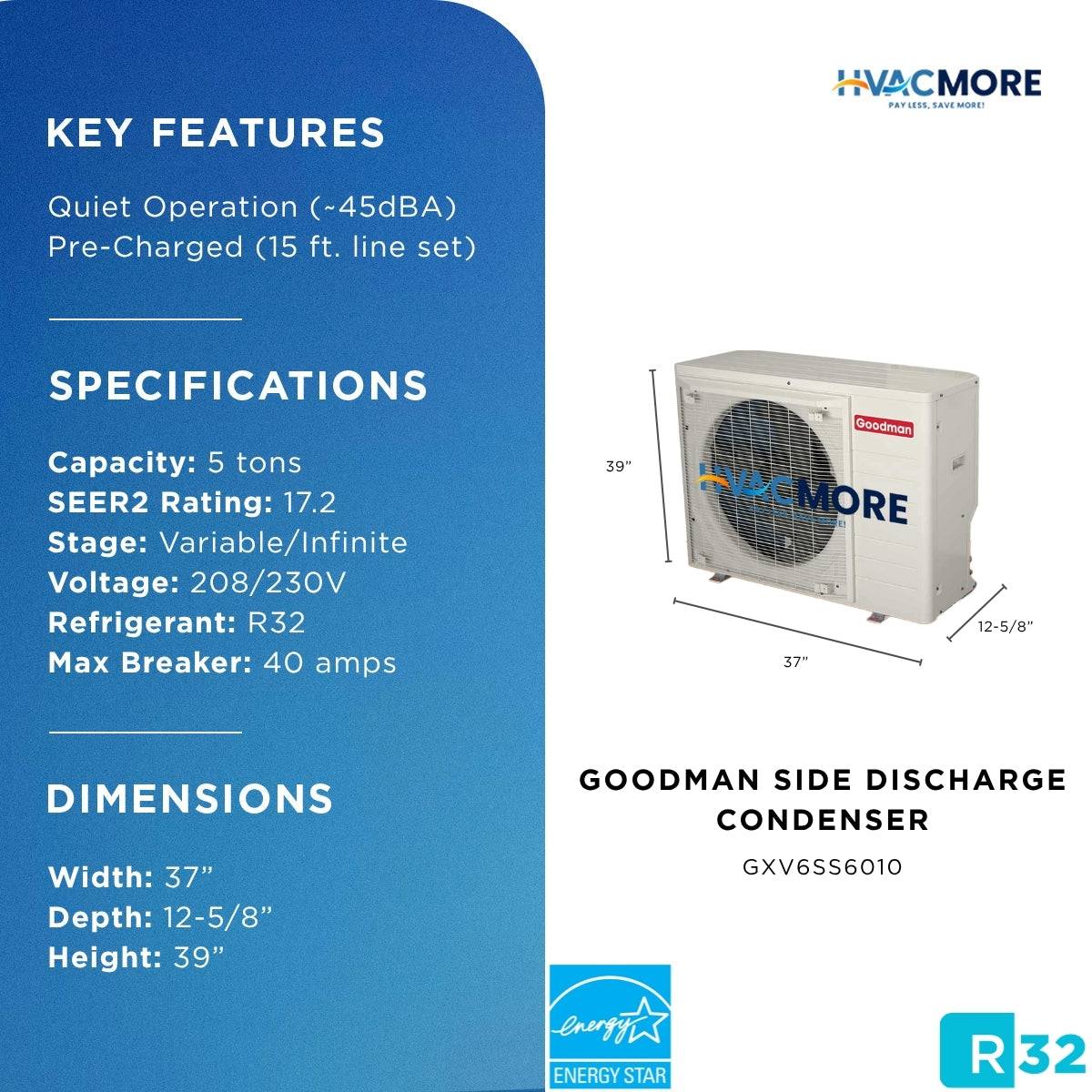

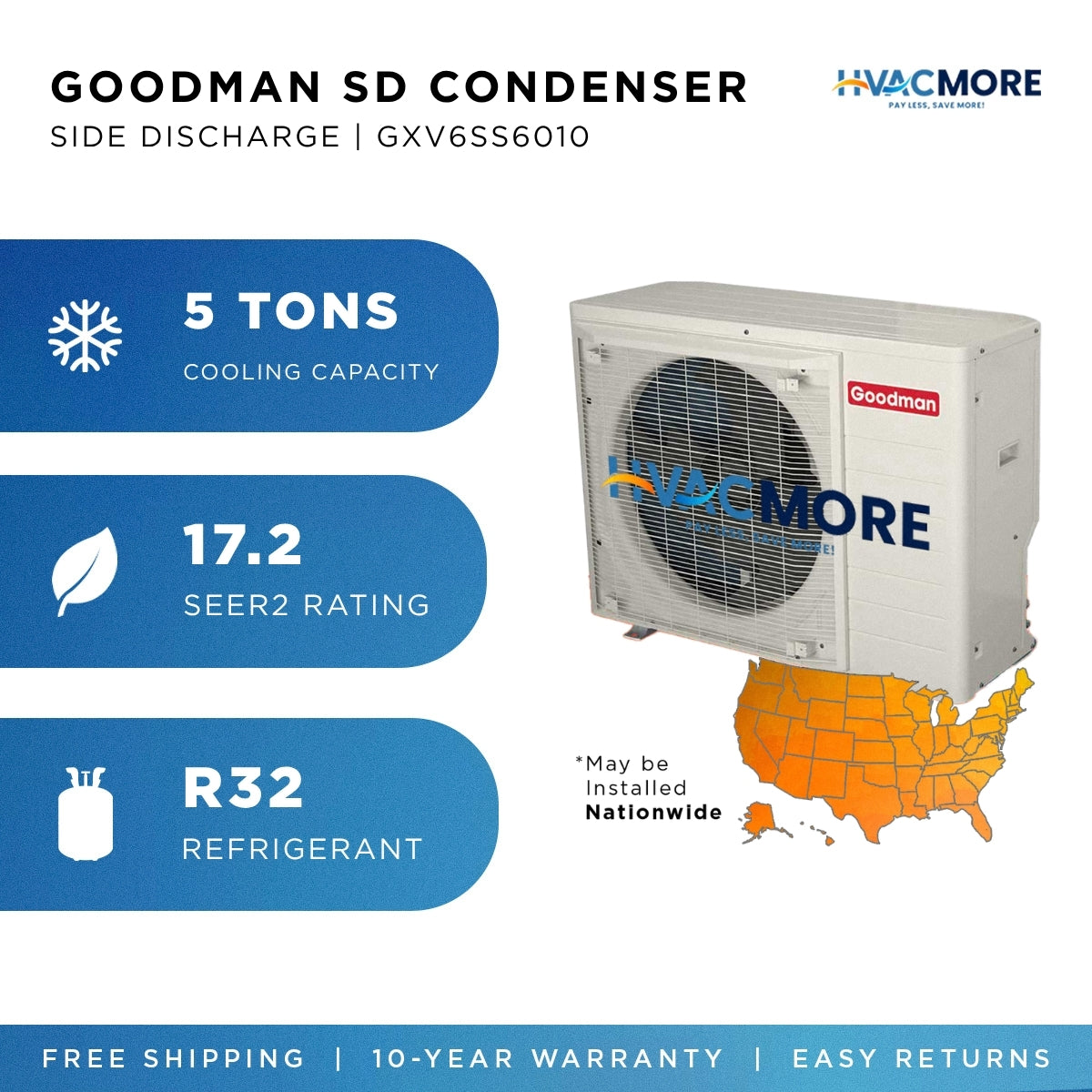

Goodman 5 Ton Up to 17.2 SEER2 Variable-Speed Inverter AC Condenser Side Discharge Cooling Only R-32 Southeast & North

The flagship of the GXV6SS lineup — maximum inverter cooling capacity for the largest homes in the Southeast and North. The Goodman GXV6SS6010 is a 5-ton, up to 17.2 SEER2 variable-speed inverter AC condenser delivering 53,500 BTU/h of cooling output — the most powerful unit in the entire GXV6S series. With the upgraded 0.36 HP digitally commutated fan motor, dual front-and-back sealing service valves, 1⅛" suction line, and 118 oz refrigerant charge for longer line sets — this unit is engineered to handle the highest residential and light commercial cooling demands with the intelligence of true variable-speed operation. No other single-stage or two-stage 5-ton condenser in the Goodman lineup comes close to this level of cooling sophistication.

Why Homeowners and Contractors Choose the GXV6SS6010:

• Up to 17.2 SEER2 efficiency — Goodman's highest efficiency rating even at 5-ton capacity
• 5 Ton / 53,500 BTU cooling capacity — the most powerful unit in the GXV6SS lineup, ideal for large homes and light commercial spaces up to 2,500–3,000 sq ft
• Variable-speed inverter swing compressor — Variable / Infinite Stage — continuously modulates for precise cooling control at the most demanding 5-ton residential loads
• Selectable Quiet Mode — as low as 45 dBA — extraordinary quiet performance for a 5-ton unit
• Field-selectable Boost Mode — maximum inverter compressor speed for peak summer demand
• Electronic Expansion Valve (EEV) — precise refrigerant metering across all 5-ton operating conditions
• Auto-control superheat management — intelligent charge management for demanding 5-ton installations
• Side discharge design — unique side-air discharge for flexible installation even in large-capacity applications
• Custom Ivory White cabinet — premium distinction from standard gray condensers
• Southeast & North regional designation — the only 5-ton inverter side-discharge AC condenser available in this Goodman regional series
• Front AND back sealing service valves — dual-access service valves for maximum field servicing flexibility on this high-capacity unit
• Upgraded 1⅛" suction line — engineered for the high refrigerant flow demands of 5-ton operation
• Largest refrigerant charge in the series — 118 oz — optimized for longer line sets at 5-ton capacity
• ComfortNet compatible — full smart system integration across the largest installations
• Only two low-voltage wires in communicating mode — simplified installation wiring
• Compatible with Goodman GTST Connected Thermostat — full smart home control and remote access
• Proprietary 7-segment LED display with fault code storage — fast, efficient service on large-capacity systems
• Proprietary Inside Intelligence diagnostics — proactive monitoring critical for high-demand 5-ton applications
• Digitally commutated condenser fan motor (0.36 HP) — high-powered motor delivering efficient, quiet 5-ton airflow
• High-density compressor sound blanket — noise reduction even at maximum 5-ton output
• Coil and ambient temperature sensors + suction pressure transducer — comprehensive system monitoring and protection
• R-32 refrigerant — eco-friendly with one-third lower GWP than R-410A
• Factory charged for 15 ft of ⅜" liquid line — ready to install
• Cooling operation range 0°F to 115°F
• ZAM® high corrosion-resistant steel bottom frame and legs — maximum long-term durability
• Heavy-gauge galvanized-steel Ivory White cabinet — 500-hour salt-spray tested
• Hurricane-ready construction — meets 2023 Florida Building Code requirements when properly anchored
• Cooling only — pairs with compatible R-32 indoor unit with RDS
• AHRI Certified and ETL Listed
• Made in the USA

⚠️ Side discharge design — air discharges from the side. Review installation manual for clearance requirements before purchasing.

⚠️ Communicating system — requires compatible communicating indoor equipment and GTST thermostat for full functionality.

⚠️ R-32 refrigerant requires compatible indoor equipment with factory-installed RDS. Not compatible with R-410A.

⚠️ Field-installed bi-flow filter drier required — must be installed by your contractor in the field.

⚠️ Suction line adapter required — installer must supply ⅞" to 1⅛" adapters for suction line connections.

Specs:

• Tonnage: 5 Ton
• Max Cooling: 53,500 BTU/h
• SEER2: Up to 17.2
• Compressor: Variable-Speed Inverter Swing (Variable / Infinite Stage)
• Refrigerant: R-32
• Expansion Device: EEV
• Fan Motor: Digitally Commutated (0.36 HP)
• Valve Type: Front AND Back Sealing
• Voltage: 208/230V — 1Ph — 60Hz
• MCA: 37.5 Amps
• Max Breaker (MOP): 40 Amps
• Liquid Line: ⅜" O.D.
• Suction Line: 1⅛" O.D.
• Refrigerant Charge: 118 oz
• Cabinet: Custom Ivory White — Side Discharge
• Cooling Range: 0°F to 115°F
• Unit Weight: 174 lbs
• Region: Southeast & North
• Operation: Cooling Only

Warranty: 10-year unit replacement + 10-year parts warranty with online registration within 60 days.
