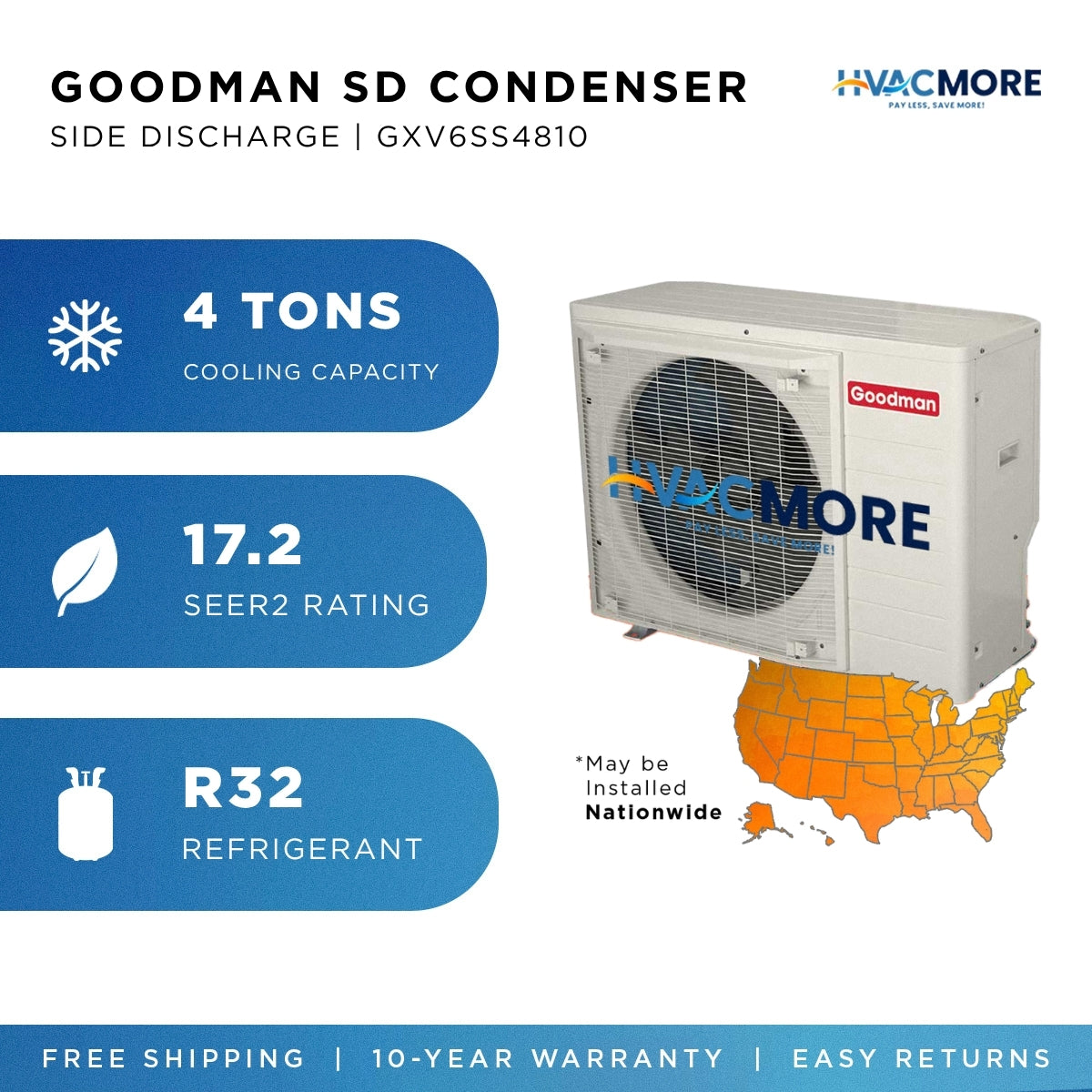

Goodman 4 Ton Up to 17.2 SEER2 Variable-Speed Inverter AC Condenser Side Discharge Cooling Only R-32 Southeast & North

High-output inverter cooling for large homes — 4-ton variable-speed precision in the Southeast and North. The Goodman GXV6SS4810 delivers 4-ton, up to 17.2 SEER2 variable-speed cooling for large homes that demand serious cooling capacity from the most sophisticated platform available. With 45,500 BTU/h of maximum cooling output, an upgraded 0.36 HP digitally commutated fan motor, dual front-and-back sealing service valves, and the same whisper-quiet 45 dBA Quiet Mode — this unit keeps even the largest homes perfectly comfortable, season after season.

Why Homeowners and Contractors Choose the GXV6SS4810:

• Up to 17.2 SEER2 efficiency — maximum energy savings for demanding 4-ton systems
• 4 Ton / 45,500 BTU cooling capacity — ideal for large homes between 2,000–2,400 sq ft
• Variable-speed inverter swing compressor — Variable / Infinite Stage — continuously modulates for precise comfort and efficiency at 4-ton demands
• Selectable Quiet Mode — as low as 45 dBA — quiet operation even at high 4-ton loads
• Field-selectable Boost Mode — maximum inverter speed for peak cooling demand
• Electronic Expansion Valve (EEV) — precise refrigerant metering for optimized 4-ton performance
• Auto-control superheat management
• Side discharge design — flexible installation options for larger units
• Custom Ivory White cabinet
• Southeast & North regional designation
• Front AND back sealing service valves — dual-access service valves for maximum field servicing flexibility
• Upgraded 1⅛" suction line — handles higher refrigerant flow at 4-ton capacity
• ComfortNet compatible — smart system integration
• Only two low-voltage wires in communicating mode
• Compatible with Goodman GTST Connected Thermostat
• Proprietary 7-segment LED display with fault code storage
• Proprietary Inside Intelligence diagnostics
• Digitally commutated condenser fan motor (0.36 HP) — upgraded high-powered motor for 4-ton airflow demands
• High-density compressor sound blanket
• Coil and ambient temperature sensors + suction pressure transducer
• R-32 refrigerant — one-third lower GWP than R-410A
• Factory charged for 15 ft of ⅜" liquid line
• Cooling operation range 0°F to 115°F
• ZAM® steel bottom frame and legs
• Heavy-gauge galvanized-steel Ivory White cabinet — 500-hour salt-spray tested
• Hurricane-ready construction — meets 2023 Florida Building Code
• AHRI Certified and ETL Listed
• Made in the USA

⚠️ Side discharge — review installation manual. Communicating system — GTST thermostat required. R-32 — compatible indoor unit with RDS required. Field-installed bi-flow filter drier required. Suction line adapter — ⅞" to 1⅛" adapter must be supplied by installer.

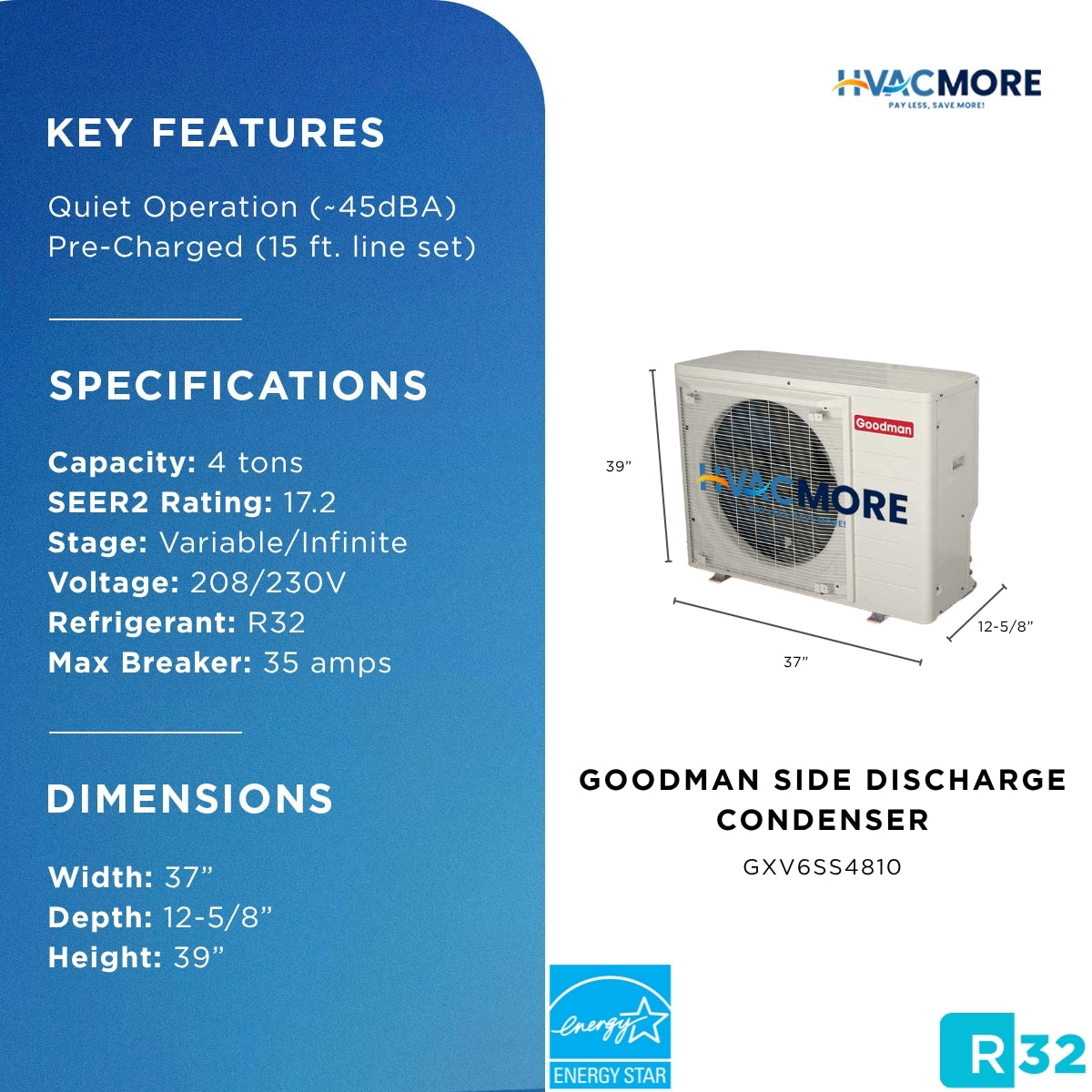

Specs:

• Tonnage: 4 Ton
• Max Cooling: 45,500 BTU/h
• SEER2: Up to 17.2
• Compressor: Variable-Speed Inverter Swing (Variable / Infinite Stage)
• Refrigerant: R-32
• Expansion Device: EEV
• Fan Motor: Digitally Commutated (0.36 HP)
• Valve Type: Front AND Back Sealing
• Voltage: 208/230V — 1Ph — 60Hz
• MCA: 31.8 Amps
• Max Breaker (MOP): 35 Amps
• Liquid Line: ⅜" O.D.
• Suction Line: 1⅛" O.D.
• Refrigerant Charge: 100 oz
• Cabinet: Custom Ivory White — Side Discharge
• Cooling Range: 0°F to 115°F
• Unit Weight: 163 lbs
• Region: Southeast & North
• Operation: Cooling Only

Warranty: 10-year unit replacement + 10-year parts warranty with online registration within 60 days.
