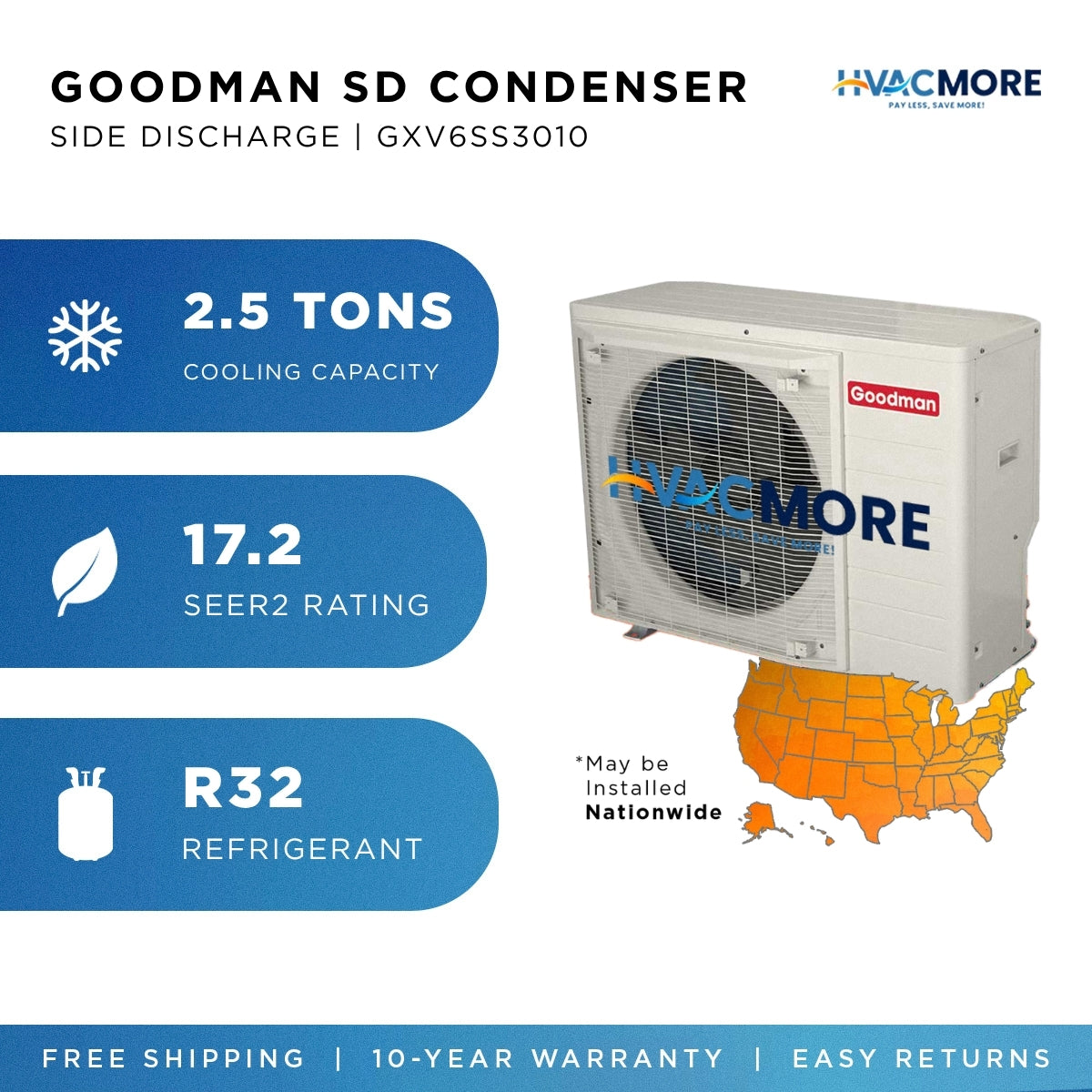

Goodman 2.5 Ton Up to 17.2 SEER2 Variable-Speed Inverter AC Condenser Side Discharge Cooling Only R-32 Southeast & North

The most popular size, reimagined with inverter precision — for Southeast and Northern installations. The Goodman GXV6SS3010 delivers 2.5-ton, up to 17.2 SEER2 variable-speed cooling in the premium Ivory White side-discharge package. The inverter swing compressor runs almost continuously at whatever speed your home needs at that exact moment — eliminating the uncomfortable surges and loud cycling of single-stage and two-stage condensers. For medium-sized homes in the Southeast and North that want the most advanced cooling technology available from Goodman, this is it.

Why Homeowners and Contractors Choose the GXV6SS3010:

• Up to 17.2 SEER2 efficiency — Goodman's highest efficiency AC rating for maximum savings
• 2.5 Ton / 28,400 BTU cooling capacity — ideal for medium homes between 1,200–1,500 sq ft
• Variable-speed inverter swing compressor — Variable / Infinite Stage — runs at exactly the right speed for exact temperature control, maximum efficiency, and minimum noise
• Selectable Quiet Mode — as low as 45 dBA
• Field-selectable Boost Mode — maximum cooling during peak summer demand
• Electronic Expansion Valve (EEV) — precise refrigerant metering
• Auto-control superheat management
• Side discharge design — flexible installation
• Custom Ivory White cabinet
• Southeast & North regional designation
• ComfortNet compatible
• Only two low-voltage wires in communicating mode
• Compatible with Goodman GTST Connected Thermostat
• Proprietary 7-segment LED display with fault code storage
• Proprietary Inside Intelligence diagnostics
• Digitally commutated condenser fan motor (0.20 HP)
• High-density compressor sound blanket
• Coil and ambient temperature sensors + suction pressure transducer
• Front-sealing service valves with easy-access gauge ports
• R-32 refrigerant — one-third lower GWP than R-410A
• Factory charged for 15 ft of ⅜" liquid line
• Cooling operation range 0°F to 115°F
• ZAM® steel bottom frame and legs
• Heavy-gauge galvanized-steel Ivory White cabinet — 500-hour salt-spray tested
• Hurricane-ready construction — meets 2023 Florida Building Code
• AHRI Certified and ETL Listed
• Made in the USA

⚠️ Side discharge — review installation manual. Communicating system — GTST thermostat required. R-32 — compatible indoor unit with RDS required. Field-installed bi-flow filter drier required.

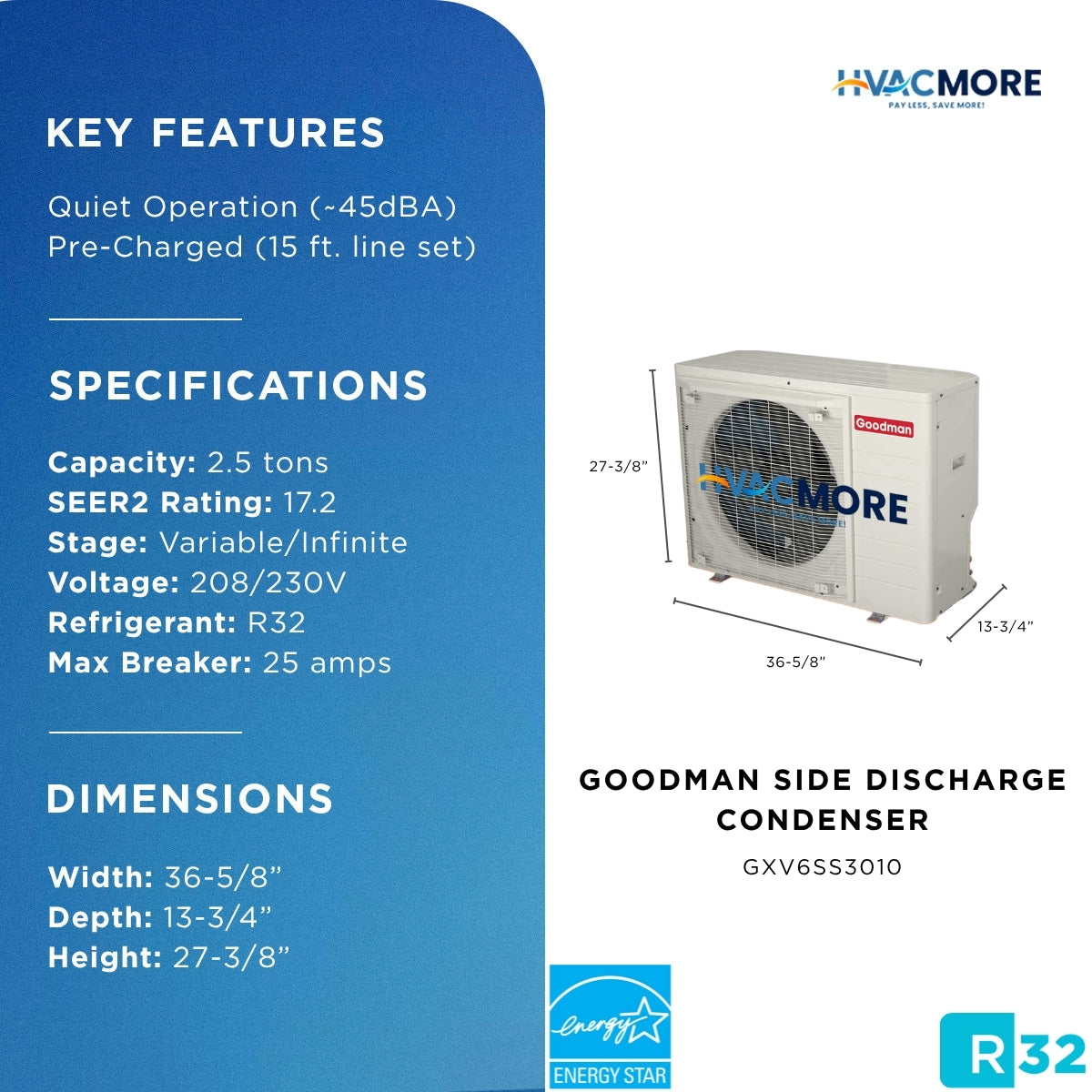

Specs:

• Tonnage: 2.5 Ton
• Max Cooling: 28,400 BTU/h
• SEER2: Up to 17.2
• Compressor: Variable-Speed Inverter Swing (Variable / Infinite Stage)
• Refrigerant: R-32
• Expansion Device: EEV
• Fan Motor: Digitally Commutated (0.20 HP)
• Voltage: 208/230V — 1Ph — 60Hz
• MCA: 22.4 Amps
• Max Breaker (MOP): 25 Amps
• Liquid Line: ⅜" O.D.
• Suction Line: ⅞" O.D.
• Refrigerant Charge: 76 oz
• Cabinet: Custom Ivory White — Side Discharge
• Cooling Range: 0°F to 115°F
• Unit Weight: 129 lbs
• Region: Southeast & North
• Operation: Cooling Only

Warranty: 10-year unit replacement + 10-year parts warranty with online registration within 60 days.
