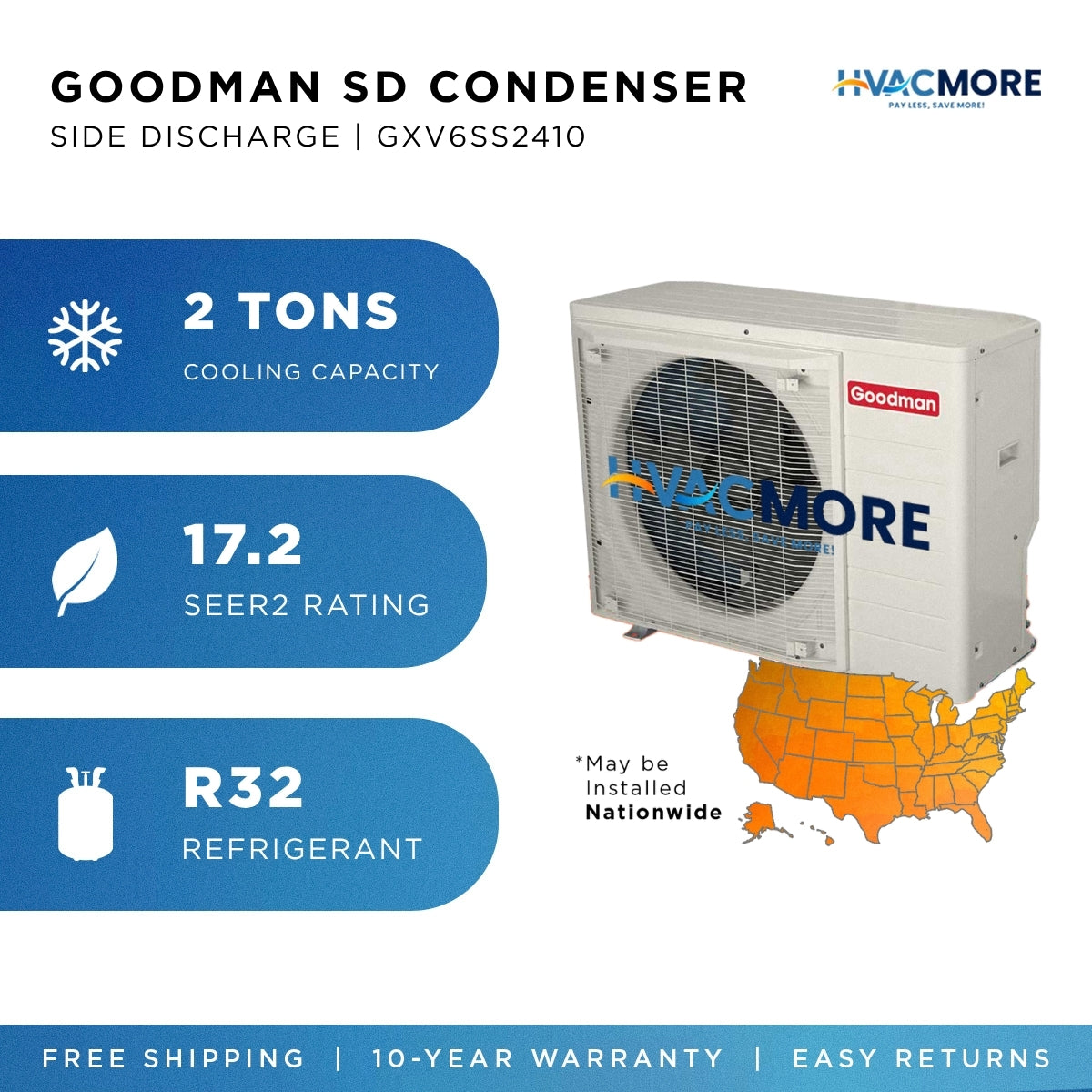

Goodman 2 Ton Up to 17.2 SEER2 Variable-Speed Inverter AC Condenser Side Discharge Cooling Only R-32 Southeast & North

Variable-speed inverter precision for small to medium homes — the most intelligent 2-ton cooling system Goodman makes. The Goodman GXV6SS2410 delivers 2-ton, up to 17.2 SEER2 variable-speed cooling in the distinctive Ivory White side-discharge cabinet — with an inverter swing compressor that never cycles on and off like a conventional unit. Instead, it continuously fine-tunes its output to maintain your exact set temperature all day long. Quieter, more comfortable, and more efficient than any standard or two-stage 2-ton condenser — and purpose-built for Southeast and Northern US installations.

Why Homeowners and Contractors Choose the GXV6SS2410:

• Up to 17.2 SEER2 efficiency — Goodman's highest efficiency AC rating
• 2 Ton / 23,200 BTU cooling capacity — ideal for small to medium homes between 1,000–1,200 sq ft
• Variable-speed inverter swing compressor — Variable / Infinite Stage — continuously modulates for exact temperature control without on/off cycling noise or energy waste
• Selectable Quiet Mode — as low as 45 dBA — significantly quieter than standard condensers
• Field-selectable Boost Mode — full output during peak demand
• Electronic Expansion Valve (EEV) — precise refrigerant metering
• Auto-control superheat management — simplified commissioning
• Side discharge design — flexible installation for constrained spaces
• Custom Ivory White cabinet — premium distinctive appearance
• Southeast & North regional designation
• ComfortNet compatible — smart system integration
• Only two low-voltage wires in communicating mode
• Compatible with Goodman GTST Connected Thermostat
• Proprietary 7-segment LED display with fault code storage
• Proprietary Inside Intelligence diagnostics
• Digitally commutated condenser fan motor (0.09 HP)
• High-density compressor sound blanket
• Coil and ambient temperature sensors + suction pressure transducer
• Front-sealing service valves with easy-access gauge ports
• R-32 refrigerant — one-third lower GWP than R-410A
• Factory charged for 15 ft of ⅜" liquid line
• Cooling operation range 0°F to 115°F
• ZAM® steel bottom frame and legs — maximum corrosion resistance
• Heavy-gauge galvanized-steel Ivory White cabinet — 500-hour salt-spray tested
• Hurricane-ready construction — meets 2023 Florida Building Code
• AHRI Certified and ETL Listed
• Made in the USA

⚠️ Side discharge — review installation manual. Communicating system — requires GTST thermostat. R-32 — compatible indoor unit with RDS required. Field-installed bi-flow filter drier required.

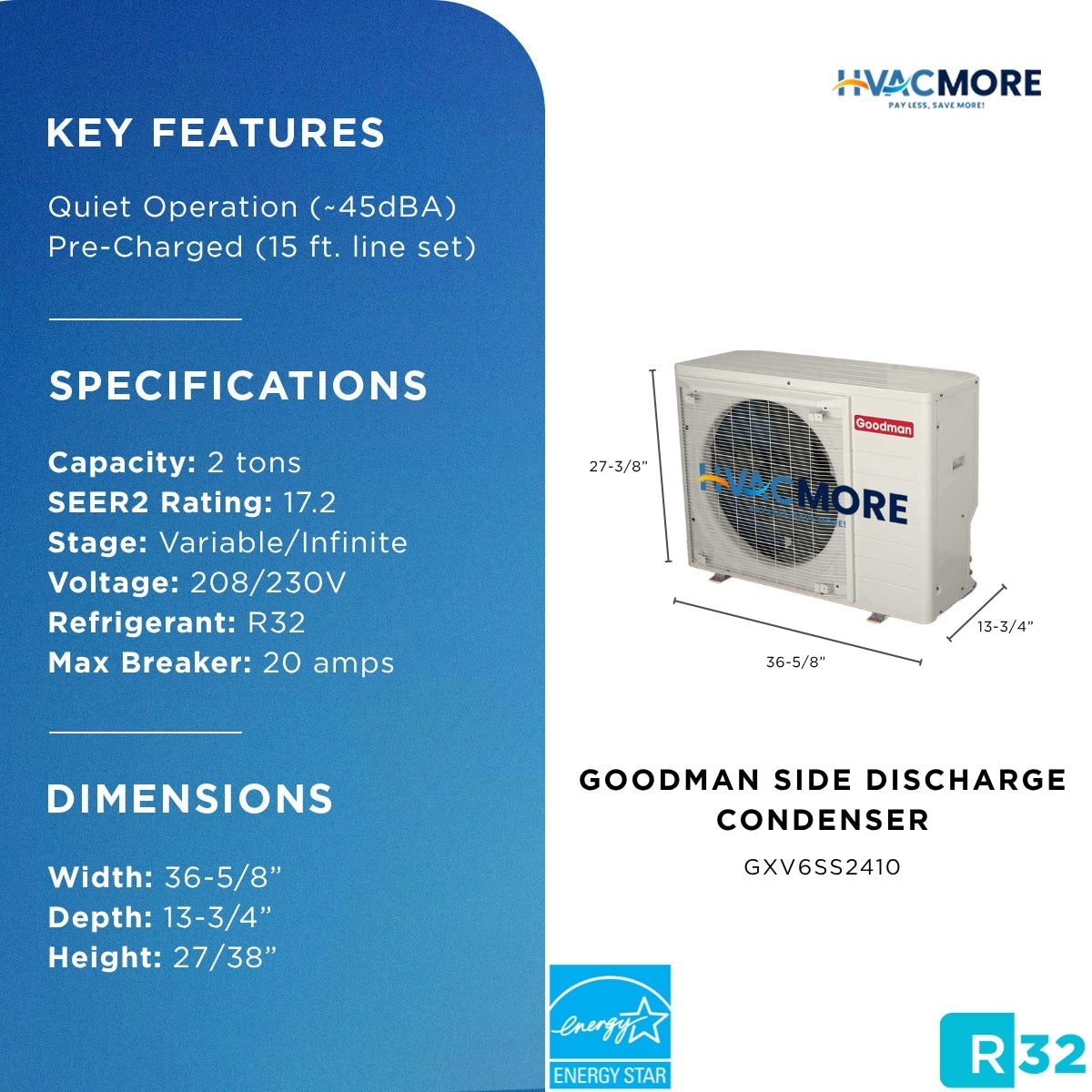

Specs:

• Tonnage: 2 Ton
• Max Cooling: 23,200 BTU/h
• SEER2: Up to 17.2
• Compressor: Variable-Speed Inverter Swing (Variable / Infinite Stage)
• Refrigerant: R-32
• Expansion Device: EEV
• Fan Motor: Digitally Commutated (0.09 HP)
• Voltage: 208/230V — 1Ph — 60Hz
• MCA: 16.8 Amps
• Max Breaker (MOP): 20 Amps
• Liquid Line: ⅜" O.D.
• Suction Line: ¾" O.D.
• Refrigerant Charge: 74 oz
• Cabinet: Custom Ivory White — Side Discharge
• Cooling Range: 0°F to 115°F
• Unit Weight: 119 lbs
• Region: Southeast & North
• Operation: Cooling Only

Warranty: 10-year unit replacement + 10-year parts warranty with online registration within 60 days.
