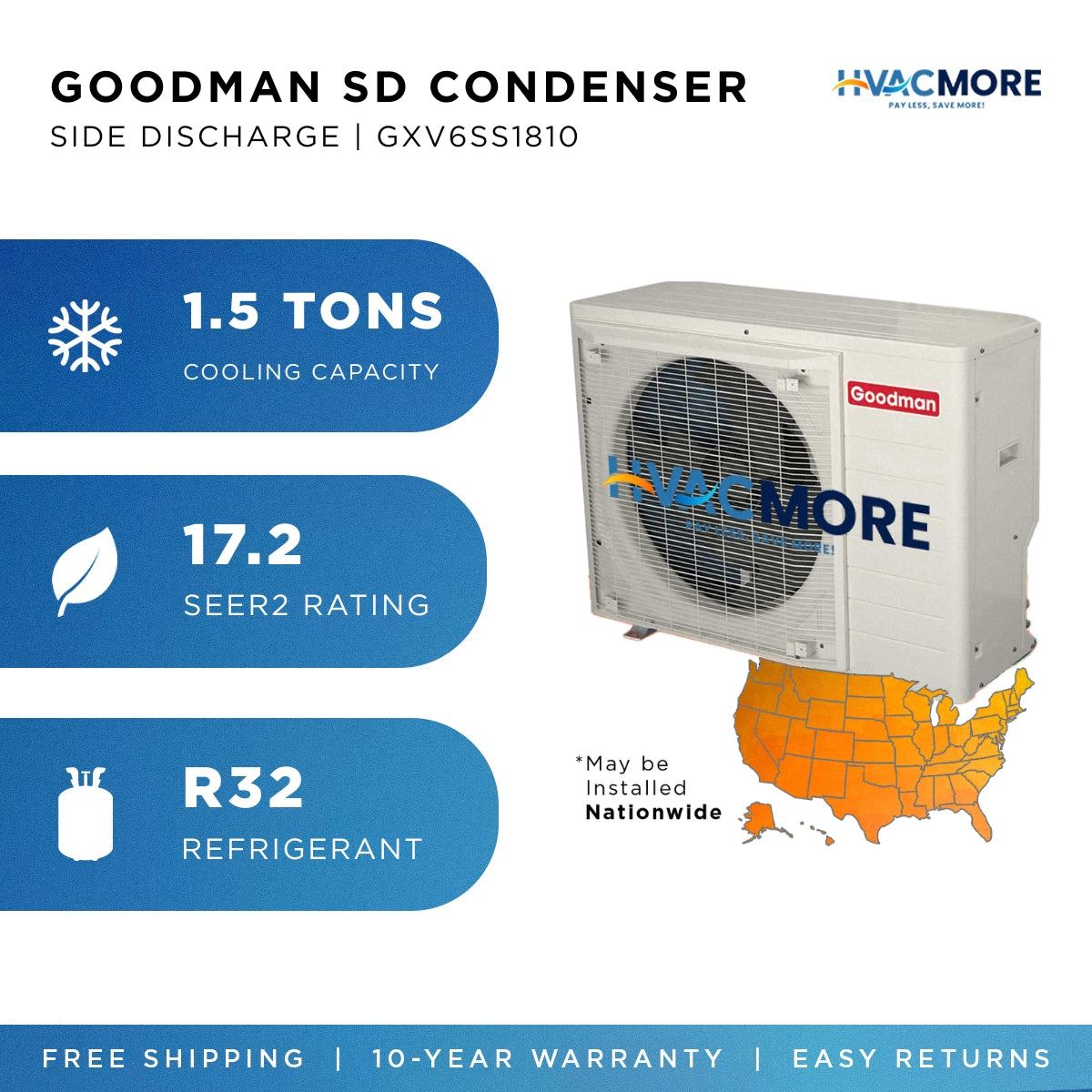

Goodman 1.5 Ton Up to 17.2 SEER2 Variable-Speed Inverter AC Condenser Side Discharge Cooling Only R-32 Southeast & North

The most technologically advanced 1.5-ton AC Goodman makes — now available in the full Southeast and North range. The Goodman GXV6SS1810 is a 1.5-ton, variable-speed inverter-driven side-discharge AC condenser that delivers up to 17.2 SEER2 efficiency with whisper-quiet operation as low as 45 dBA. Identical in technology to the GXV6SA1810 but with a regional designation for the Southeast and North — making it the premium inverter choice for small homes across the widest possible US market coverage in this series. The inverter swing compressor never simply turns on and off — it continuously and precisely modulates cooling output to match your home's exact demand, eliminating the temperature swings, noise, and wasted energy of conventional condensers.

Why Homeowners and Contractors Choose the GXV6SS1810:

• Up to 17.2 SEER2 efficiency — Goodman's highest efficiency AC rating, delivering maximum savings every cooling season
• 1.5 Ton / 17,100 BTU cooling capacity — ideal for small homes, condos, and apartments between 750–1,000 sq ft
• Variable-speed inverter swing compressor — Variable / Infinite Stage — continuously modulates between minimum and maximum output for exact temperature control, maximum efficiency, and minimum noise
• Selectable Quiet Mode — up to 3 sound levels, as low as 45 dBA — among the quietest 1.5-ton AC condensers available
• Field-selectable Boost Mode — maximum compressor speed during peak demand
• Electronic Expansion Valve (EEV) — precise refrigerant metering for optimized efficiency across all conditions
• Auto-control superheat management — intelligent charge management simplifies commissioning and servicing
• Side discharge design — side-air discharge for flexible installation in constrained spaces where top-discharge units won't fit
• Custom Ivory White cabinet — distinctive premium appearance
• Southeast & North regional designation — approved for installation across the widest Southeast and Northern US market coverage in the GXV6S series
• ComfortNet compatible — full smart system integration with Goodman communicating equipment
• Only two low-voltage wires to outdoor unit in communicating mode — simplified installation wiring
• Compatible with Goodman GTST Connected Thermostat — smart home control and remote access
• Proprietary 7-segment LED display with fault code storage — faster, cheaper service calls
• Proprietary Inside Intelligence diagnostics — proactive system health monitoring
• Digitally commutated condenser fan motor — quieter, more efficient, longer-lasting than PSC motors
• High-density compressor sound blanket — additional noise dampening
• Coil and ambient temperature sensors + suction pressure transducer — advanced real-time monitoring and protection
• Front-sealing service valves with easy-access gauge ports — faster installation and servicing
• R-32 refrigerant — eco-friendly with one-third lower GWP than R-410A
• Factory charged for 15 ft of ⅜" liquid line — ready to install right out of the box
• Cooling operation range 0°F to 115°F — wider ambient range than most standard condensers
• ZAM® high corrosion-resistant unpainted steel bottom frame and legs — maximum long-term durability
• Heavy-gauge galvanized-steel cabinet with Ivory White powder-coat finish — 500-hour salt-spray tested
• Hurricane-ready construction — meets 2023 Florida Building Code requirements when properly anchored
• Cooling only — pairs with compatible R-32 indoor unit with RDS
• AHRI Certified and ETL Listed
• Made in the USA

⚠️ Side discharge design — air discharges from the side. Review installation manual for clearance requirements before purchasing.

⚠️ Communicating system — requires compatible communicating indoor equipment and GTST thermostat for full functionality.

⚠️ R-32 refrigerant requires compatible indoor equipment with factory-installed RDS. Not compatible with R-410A.

⚠️ Field-installed bi-flow filter drier required — not factory pre-installed. Must be installed by your contractor.

⚠️ Suction line adapter — installer must supply ⅞" to 1⅛" adapters for applicable tonnage connections.

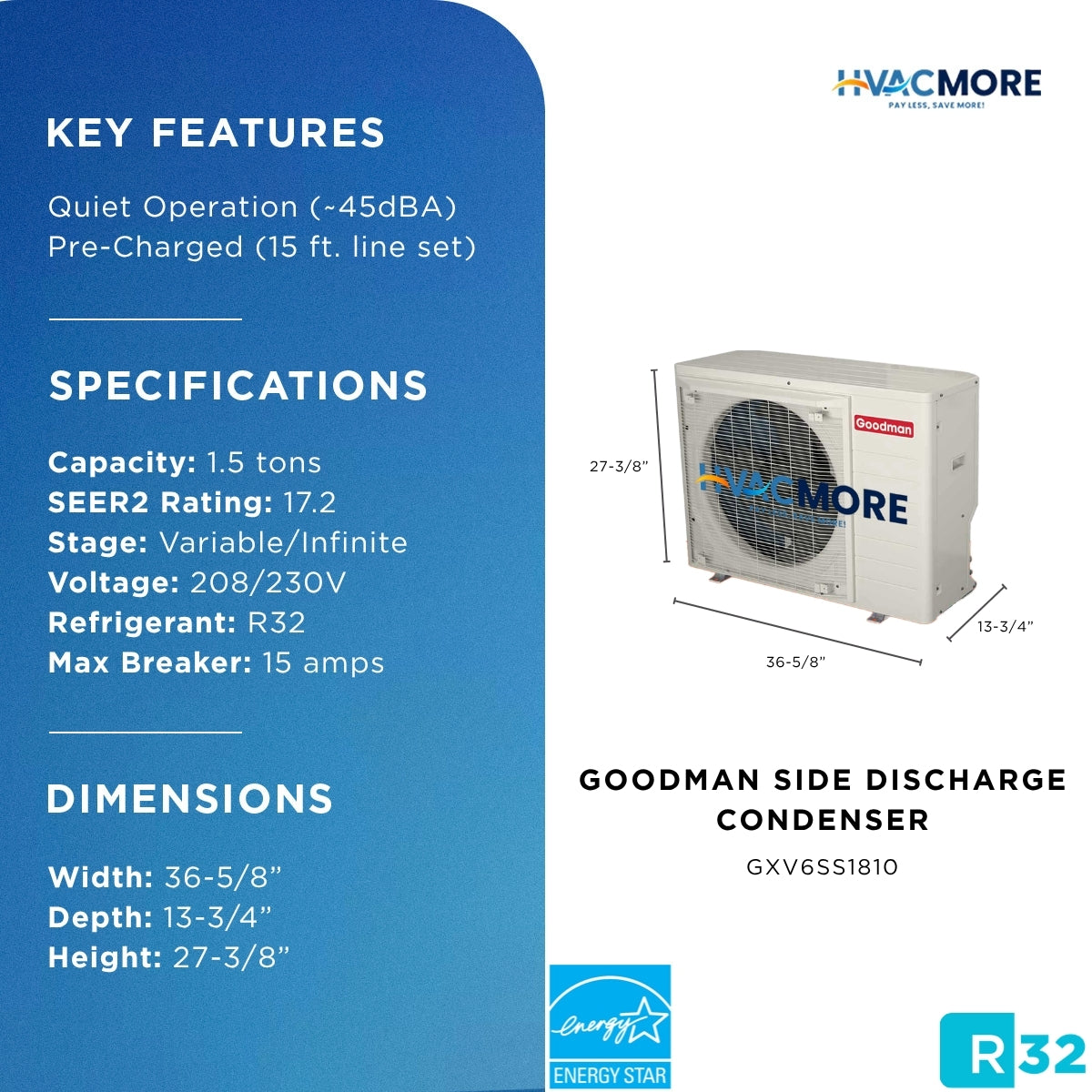

Specs:

• Tonnage: 1.5 Ton
• Max Cooling: 17,100 BTU/h
• SEER2: Up to 17.2
• Compressor: Variable-Speed Inverter Swing (Variable / Infinite Stage)
• Refrigerant: R-32
• Expansion Device: EEV
• Fan Motor: Digitally Commutated (0.09 HP)
• Voltage: 208/230V — 1Ph — 60Hz
• MCA: 12.8 Amps
• Max Breaker (MOP): 15 Amps
• Liquid Line: ⅜" O.D.
• Suction Line: ¾" O.D.
• Refrigerant Charge: 74 oz
• Cabinet: Custom Ivory White — Side Discharge
• Cooling Range: 0°F to 115°F
• Unit Weight: 119 lbs
• Region: Southeast & North
• Operation: Cooling Only

Warranty: 10-year unit replacement limited warranty (good for as long as you own your home) + 10-year parts warranty with online registration within 60 days.
