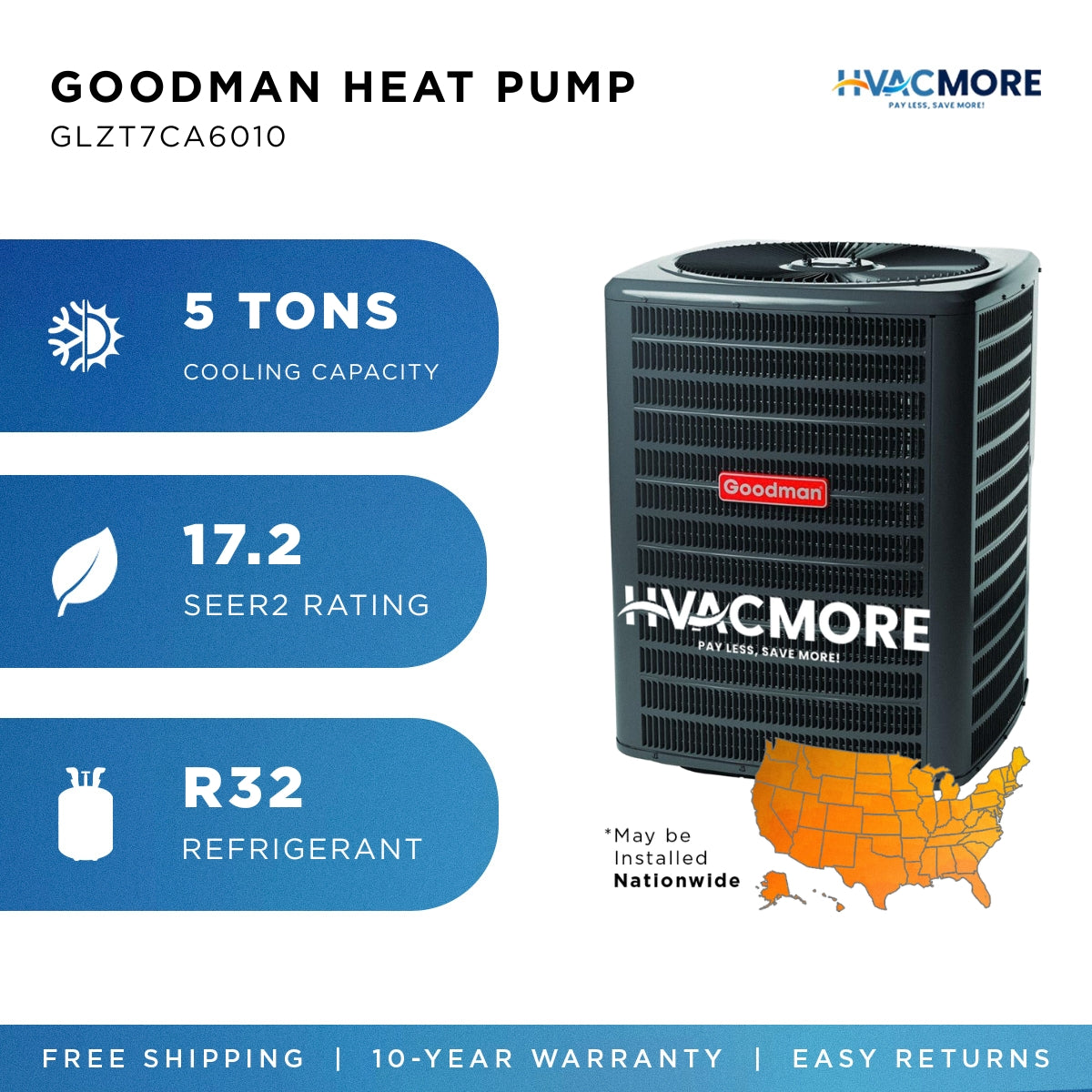

Goodman 5 Ton 17.2 SEER2 8.2 HSPF2 Two-Stage Heat Pump Condenser ComfortBridge R-32

The ultimate Goodman heat pump — maximum capacity, maximum efficiency, maximum technology. The Goodman GLZT7CA6010 is the flagship of the GLZT7CA series, delivering 5-ton, 17.2 SEER2 / 8.2 HSPF2 two-stage heating and cooling for the largest homes and light commercial applications. Every advanced feature in the Goodman heat pump lineup — in the highest capacity available. For homeowners and contractors who demand the absolute best in year-round efficiency and comfort from a Goodman heat pump, this is the one.

Why Homeowners and Contractors Choose the GLZT7CA6010:

• 17.2 SEER2 cooling efficiency — approximately 25% more efficient than the federal minimum
• 8.2 HSPF2 heating efficiency — high-efficiency heating for the largest residential applications
• 5 Ton / 60,000 BTU capacity — the most powerful unit in the GLZT7CA lineup, ideal for large homes up to 2,500–3,000 sq ft
• Two-stage Copeland UltraTech scroll compressor — smart low-speed operation for maximum efficiency and comfort at the highest capacity
• Superior active dehumidification — two-stage technology removes significantly more moisture from large spaces
• SmartShift® time-delay defrost technology — quiet, smooth defrost transitions for uninterrupted 5-ton heating performance
• ComfortBridge™ communicating technology — self-optimizing intelligence across the entire system
• CoolCloud™ Bluetooth app — full smartphone commissioning and diagnostics
• Copeland® ComfortAlert™ diagnostics — proactive compressor protection at high-demand 5-ton loads
• Compatible with Goodman GTST Connected Thermostat — complete smart home integration
• Diagnostic indicator lights with storage of 6 fault codes
• Color-coded terminal strip for non-communicating setup
• Efficient two-speed ECM condenser fan motor
• High-density foam compressor sound blanket — quieter even at maximum 5-ton output
• Copper tube / enhanced aluminum fin coil (7mm) — heavy-duty coil for demanding 5-ton heating and cooling loads
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High and low-pressure safety switches
• Factory-installed transformer
• Ambient temperature sensors
• R-32 refrigerant — one-third lower GWP than R-410A
• Factory pre-charged for 15 ft of tubing
• Easy-access gauge ports and service valves with sweat connections
• Steel louver coil guard with rust-resistant coated screws
• Top and side maintenance access panels
• Heavy-gauge galvanized-steel cabinet with Architectural Gray powder-coat finish — 500-hour salt-spray approved
• Hurricane-ready construction — meets 2020 Florida Building Code requirements
• AHRI Certified and ETL Listed
• Made in the USA

⚠️ R-32 refrigerant requires compatible indoor equipment with RDS. TXV required. Backup heat source recommended for extreme cold.

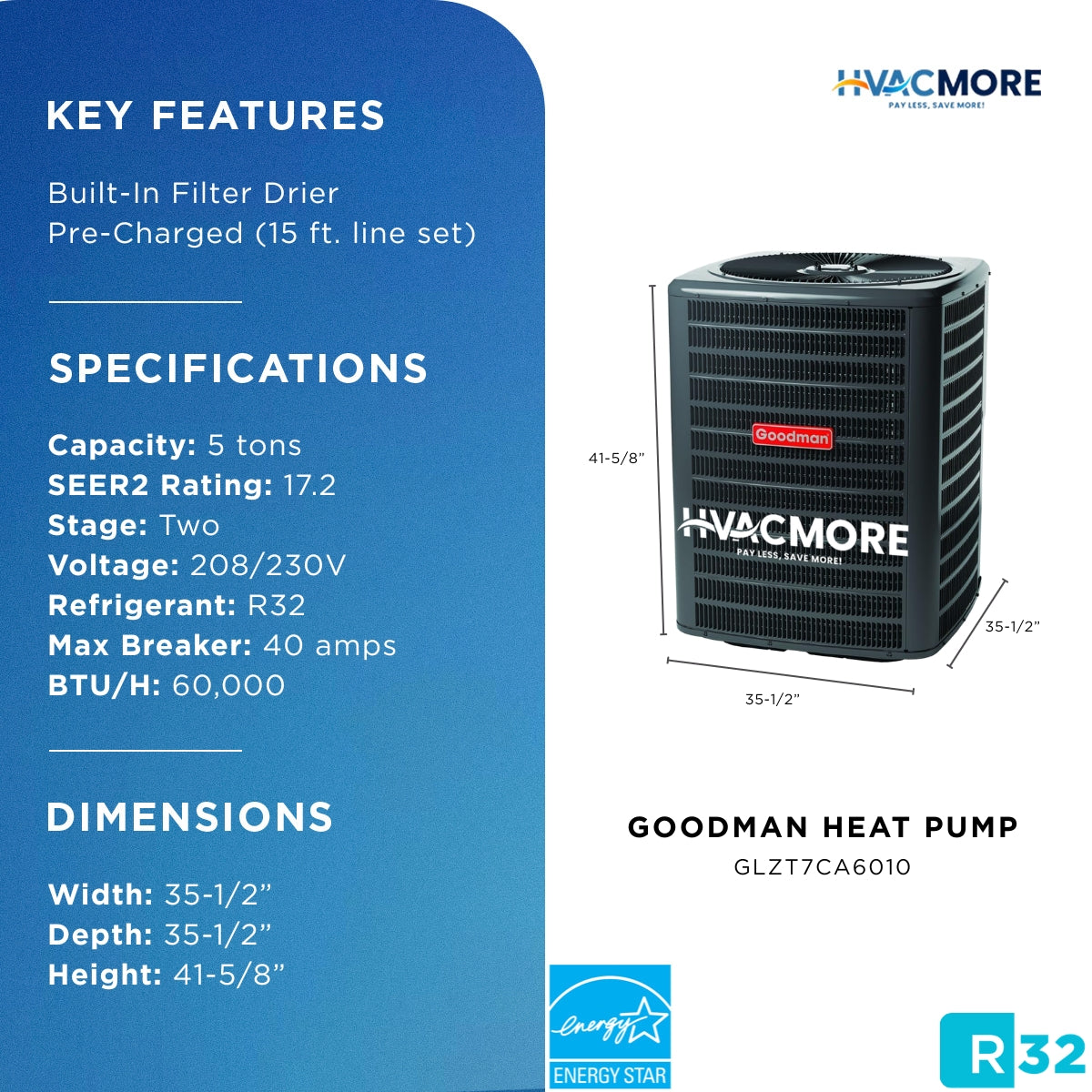

Specs:

• Tonnage: 5 Ton (60,000 BTU)
• SEER2: Up to 17.2
• HSPF2: Up to 8.2
• Refrigerant: R-32
• Compressor: Two-Stage Copeland UltraTech Scroll
• Fan Motor: Two-Speed ECM
• Coil: 7mm Copper Tube / Enhanced Aluminum Fin
• Voltage: 208/230V — 1Ph — 60Hz
• MCA: 32.4 Amps
• Max Breaker (MOP): 40 Amps
• Operation: Heating + Cooling
• Certifications: AHRI, ETL

Warranty: 10-year limited parts warranty with online registration within 60 days of installation.
