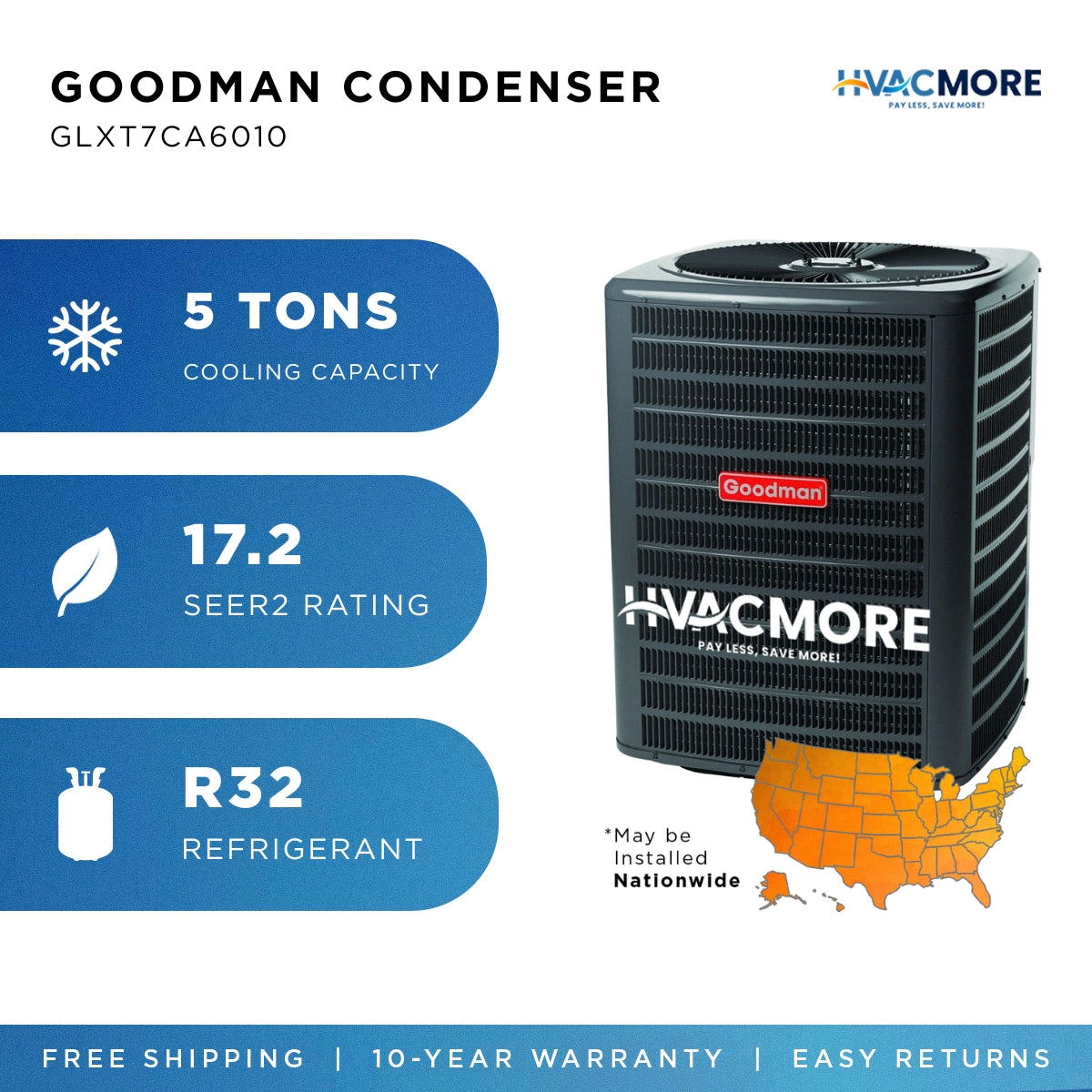

Goodman 5 Ton 17.2 SEER2 Two-Stage AC Condenser ComfortBridge R-32

The flagship of the GLXT7CA series — maximum cooling capacity at Goodman's highest efficiency. The Goodman GLXT7CA6010 delivers 5-ton, 17.2 SEER2 two-stage cooling for the largest residential spaces and light commercial applications. Every advanced feature in the GLXT7CA lineup — two-stage Copeland UltraTech, ComfortBridge™, CoolCloud™, and ComfortAlert™ — in the highest capacity available. For large homes and light commercial spaces that demand the very best cooling performance Goodman offers, this is it.

Why Homeowners and Contractors Choose the GLXT7CA6010:

• 17.2 SEER2 — Goodman's highest efficiency AC rating — approximately 25% more efficient than the 13.4 SEER2 minimum
• 5 Ton / 60,000 BTU cooling capacity — the most powerful unit in the GLXT7CA lineup, ideal for large homes up to 2,500–3,000 sq ft
• Two-stage Copeland UltraTech scroll compressor — smart low-speed operation delivers maximum comfort and dehumidification at minimum energy use
• Superior active dehumidification — two-stage technology removes more moisture from large spaces all summer long
• ComfortBridge™ communicating technology — self-optimizing system intelligence for maximum efficiency
• CoolCloud™ Bluetooth app — smartphone-based commissioning and diagnostics
• Copeland® ComfortAlert™ diagnostics — proactive compressor fault monitoring
• Compatible with Goodman GTST Connected Thermostat
• Diagnostic indicator lights with storage of 6 fault codes
• Color-coded terminal strip for non-communicating setup
• Efficient two-speed ECM condenser fan motor
• High-density foam compressor sound blanket
• Copper tube / enhanced aluminum fin coil (7mm) — heavy-duty 7mm coil for demanding 5-ton applications
• Factory-installed high and low-pressure safety switches
• Factory-installed transformer
• Ambient temperature sensors
• R-32 refrigerant — one-third lower GWP than R-410A
• Factory pre-charged for 15 ft of tubing
• Easy-access gauge ports and service valves with sweat connections
• Steel louver coil guard with rust-resistant coated screws
• Top and side maintenance access panels
• Heavy-gauge galvanized-steel cabinet with Architectural Gray powder-coat finish — 500-hour salt-spray approved
• Hurricane-ready construction — meets 2020 Florida Building Code requirements
• Cooling only — pairs with compatible R-32 indoor unit with RDS
• AHRI Certified and ETL Listed
• Made in the USA

⚠️ R-32 refrigerant requires compatible indoor equipment with RDS. Not compatible with R-410A. TXV required on indoor unit.

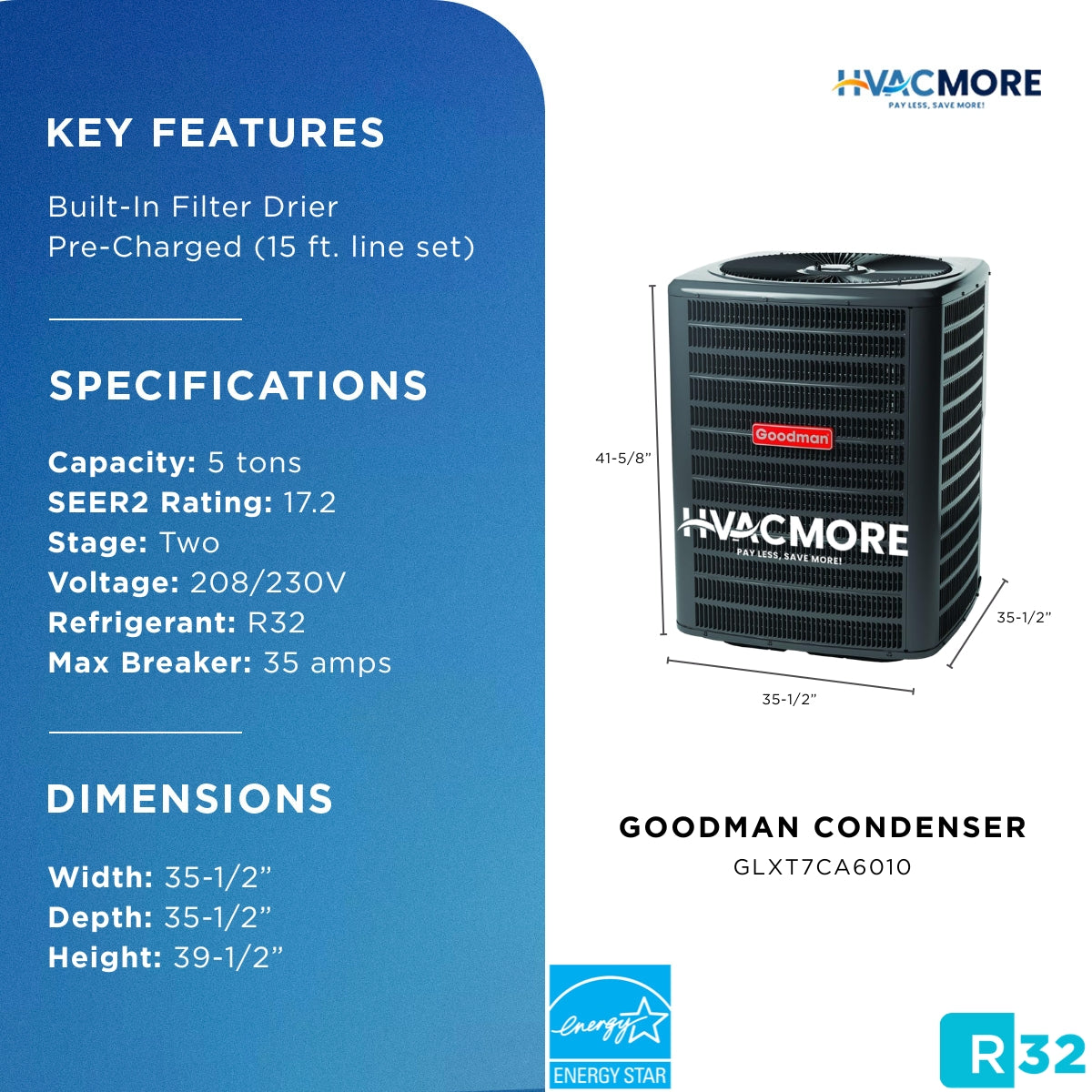

Specs:

• Tonnage: 5 Ton (60,000 BTU)
• SEER2: Up to 17.2
• EER2: Up to 13
• Refrigerant: R-32
• Compressor: Two-Stage Copeland UltraTech Scroll
• Fan Motor: Two-Speed ECM
• Coil: 7mm Copper Tube / Enhanced Aluminum Fin
• Voltage: 208/230V — 1Ph — 60Hz
• MCA: 32.4 Amps
• Max Breaker (MOP): 40 Amps
• Operation: Cooling Only
• Certifications: AHRI, ETL

Warranty: 10-year limited parts warranty with online registration within 60 days of installation.
