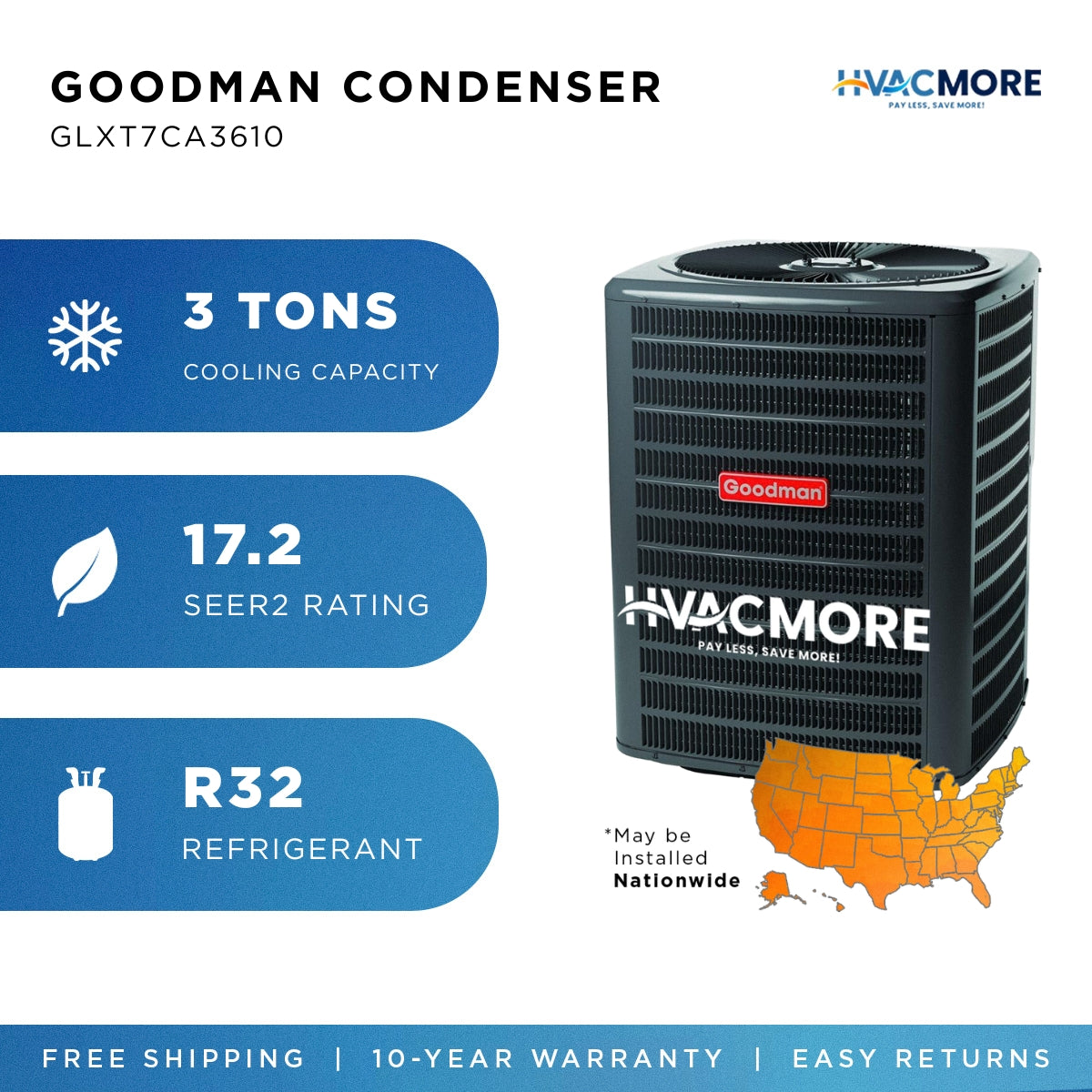

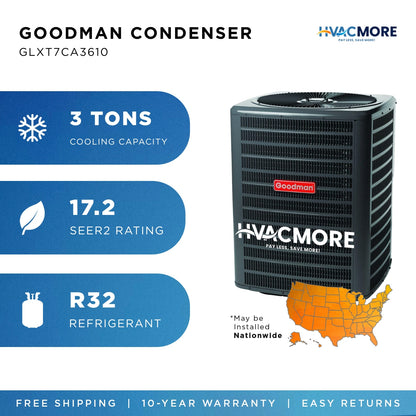

Goodman 3 Ton 17.2 SEER2 Two Stage Condenser ComfortBridge R32

The most popular size — Goodman's highest efficiency cooling technology in a 3-ton package. The Goodman GLXT7CA3610 is a 3-ton, 17.2 SEER2 cooling-only condenser that delivers approximately 25% better energy efficiency than the federal minimum standard. Designed to be whisper-quiet, extremely e,fficient, and to provide the best comfort possible — considered from the best of the best series of AC condensers that Goodman has to offer. With ComfortBridge™ communicating technology, CoolCloud™ Bluetooth diagnostics, and Copeland ComfortAlert™ built-in protection — this is the smartest, most efficient 3-ton cooling system Goodman makes.

Why Homeowners and Contractors Choose the GLXT7CA3610:

• 17.2 SEER2 — Goodman's highest efficiency AC rating — approximately 25% more efficient than the 13.4 SEER2 federal minimum
• 3 Ton / 36,000 BTU cooling capacity — ideal for medium to large homes between 1,500–1,800 sq ft
• Two-stage Copeland UltraTech scroll compressor — low-speed operation the majority of the time for quieter, more efficient cooling and superior dehumidification
• Superior active dehumidification — two-stage operation keeps the compressor running longer at lower capacity for dramatically better moisture removal
• ComfortBridge™ communicating technology — self-optimizing system intelligence for maximum efficiency without manual adjustments
• CoolCloud™ Bluetooth app — smartphone-based commissioning and diagnostics for your contractor
• Copeland® ComfortAlert™ diagnostics — proactive compressor fault monitoring reduces costly failures
• Compatible with Goodman GTST Connected Thermostat — smart home integration and remote access
• Diagnostic indicator lights with storage of 6 fault codes
• Color-coded terminal strip for non-communicating setup
• Efficient two-speed ECM condenser fan motor — quieter and more efficient than single-speed motors
• High-density foam compressor sound blanket — whisper-quiet operation
• Copper tube / enhanced aluminum fin coil (5mm) — maximum heat transfer efficiency
• Factory-installed high and low-pressure safety switches
• Factory-installed transformer
• Ambient temperature sensors
• R-32 refrigerant — one-third lower GWP than R-410A
• Factory pre-charged for 15 ft of tubing
• Easy-access gauge ports and service valves with sweat connections
• Steel louver coil guard with rust-resistant coated screws
• Top and side maintenance access panels
• Heavy-gauge galvanized-steel cabinet with Architectural Gray powder-coat finish — 500-hour salt-spray approved
• Hurricane-ready construction — meets 2020 Florida Building Code requirements
• Cooling only — pairs with compatible R-32 indoor unit with RDS
• AHRI Certified and ETL Listed
• Made in the USA

⚠️ R-32 refrigerant requires compatible indoor equipment with RDS. Not compatible with R-410A. TXV required on indoor unit.

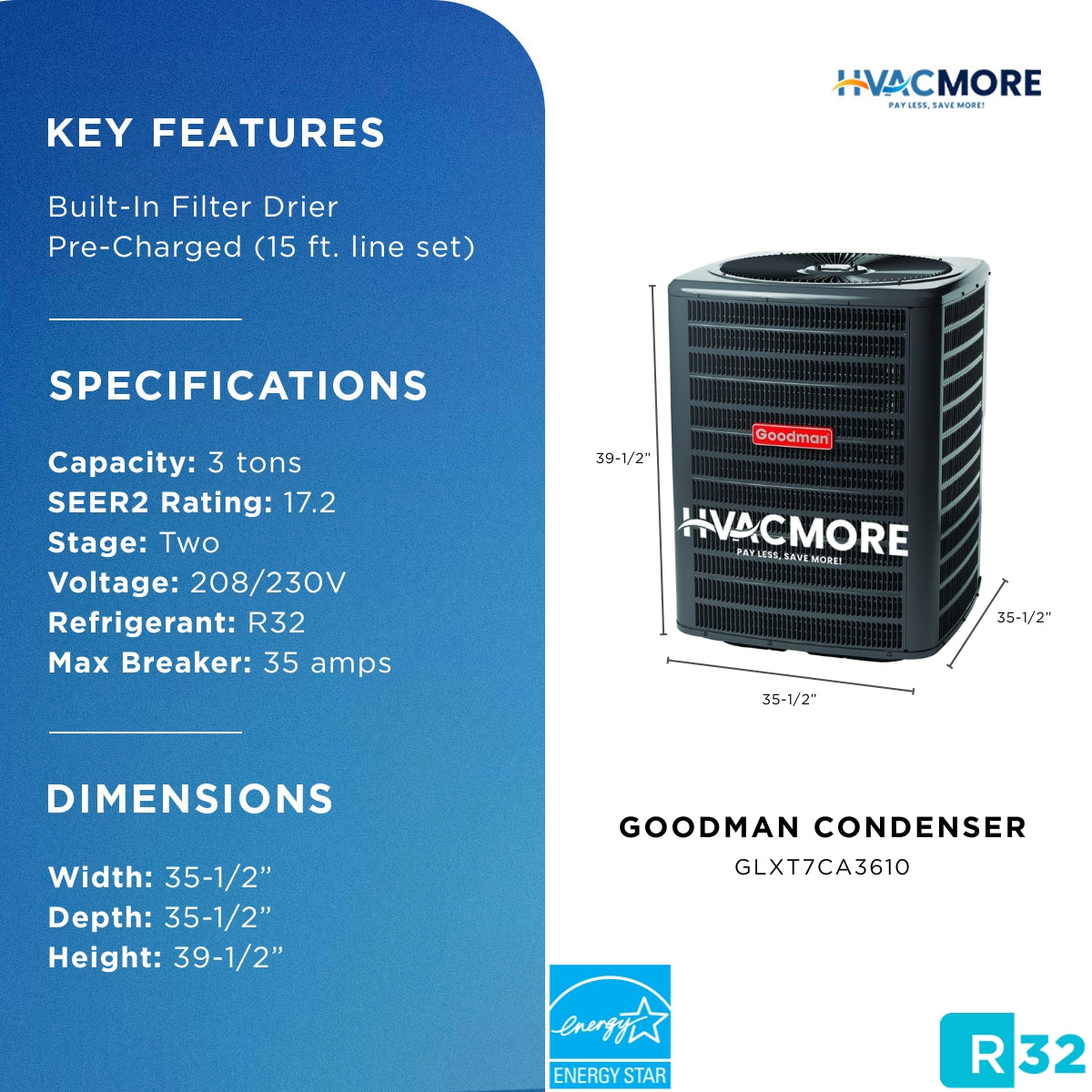

Specs:

• Tonnage: 3 Ton (36,000 BTU)
• SEER2: Up to 17.2
• EER2: Up to 13
• Refrigerant: R-32
• Compressor: Two-Stage Copeland UltraTech Scroll
• Fan Motor: Two-Speed ECM
• Coil: 5mm Copper Tube / Enhanced Aluminum Fin
• Voltage: 208/230V — 1Ph — 60Hz
• MCA: 18.4 Amps
• Max Breaker (MOP): 25 Amps
• Operation: Cooling Only
• Certifications: AHRI, ETL

Warranty: 10-year limited parts warranty with online registration within 60 days of installation.
