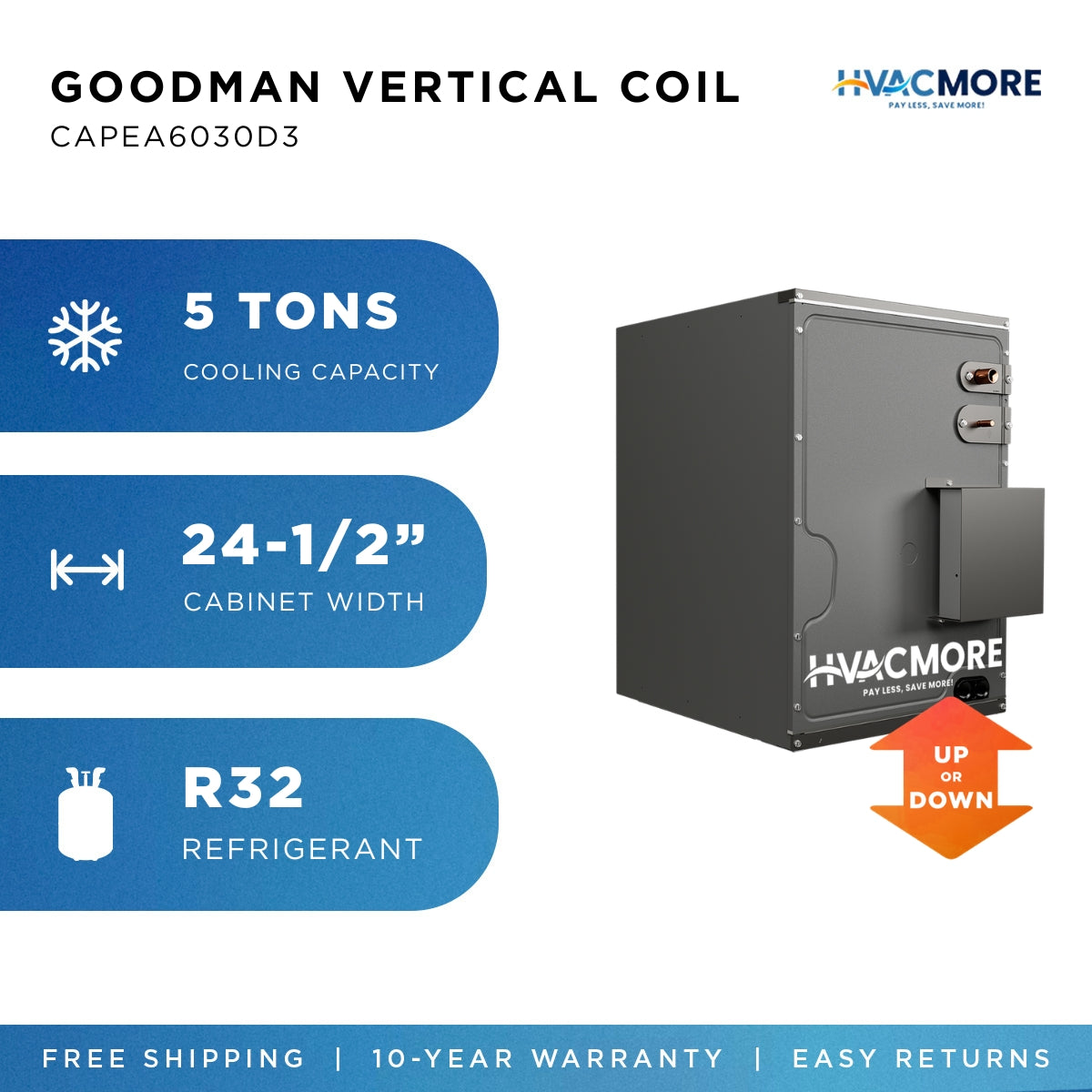

Goodman 5 Ton 24.5" Cased Upflow/Downflow Evaporator Coil EEV R-32 - CAPEA6030D3

The largest cabinet in the CAPEA series, the Goodman CAPEA6030D3 pairs 5-ton cooling capacity with a 24.5" wide cabinet for the largest furnace and air handler platforms. It's built to close out big jobs with the same factory-tested reliability as every other coil in the line.

Key features that matter in the field

• Factory-installed EEV for precise, high-capacity refrigerant metering
• All-aluminum coil construction optimized for R-32 circuits and manifolds
• Compatible with Daikin One+ communicating equipment
• Corrosion-resistant, leather-grain-embossed galvanized cabinet with foil-faced insulation
• DecaBDE-free, rust-resistant thermoplastic drain pan with secondary drain connection
• Single front access panel; 21" depth for simplified installation
• Fault recall of the six most recent faults

Regional readiness and important compatibility notes

• R-32 only — not for use with R-410A systems
• Requires a matched R-32 outdoor unit and Goodman Furnace Integration Kit (Model 0230K00044)
• Suited to homes or light commercial spaces in the ~2,500–3,000 sq ft range

Specs at a glance

• Tonnage: 5 Ton

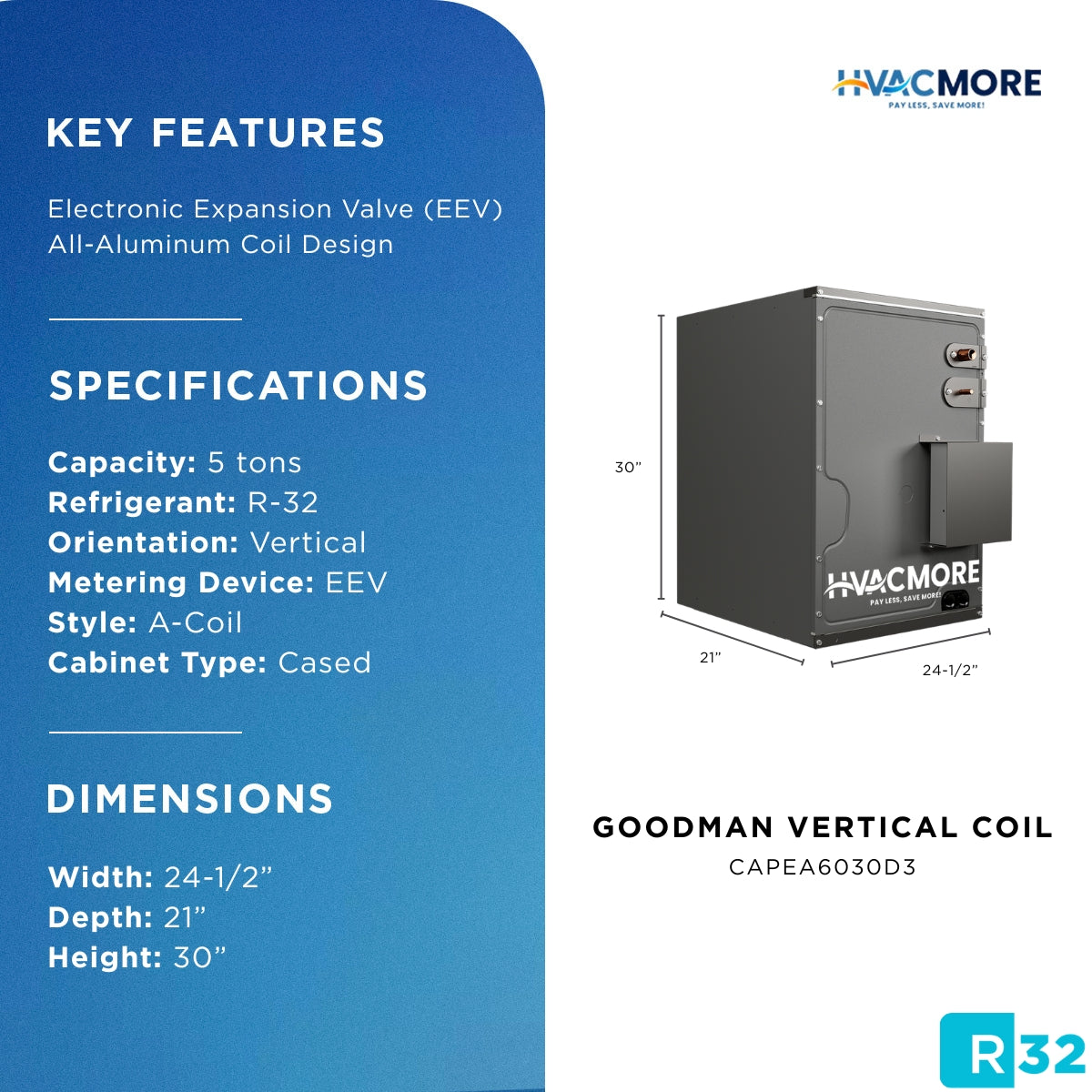

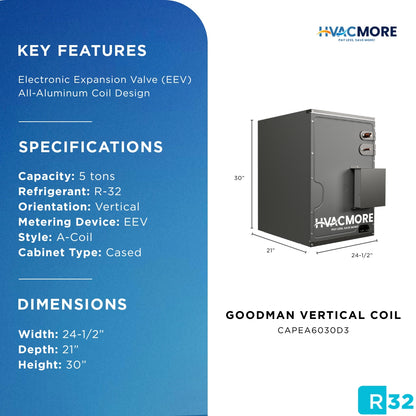

• Cabinet Dimensions (W x D x H): 24.5" x 21" x 30"
• Refrigerant: R-32
• Metering Device: Internal EEV
• Line Connections: 3/8" liquid, 7/8" or 1⅛" suction
• Ship Weight: 78 lbs
• Warranty: 10-year limited parts warranty with registration within 60 days
• AHRI Certified, ETL Listed

Why this matters for you When the job calls for maximum capacity and the widest cabinet on the platform, the CAPEA6030D3 delivers — full 5-ton performance, the same dependable EEV metering, and a build quality that holds up to years of heavy-duty operation.
