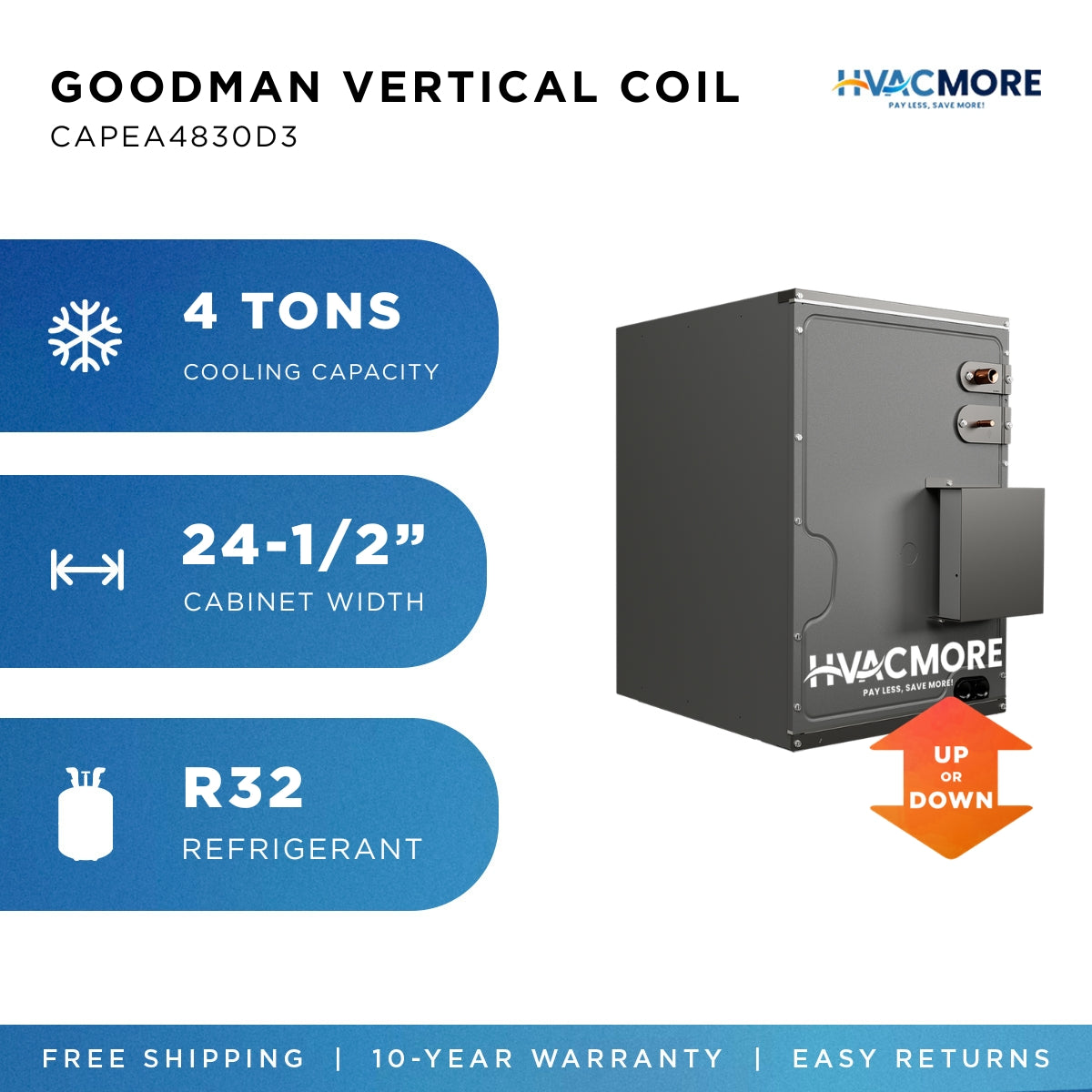

Goodman 4 Ton 24.5" Cased Upflow/Downflow Evaporator Coil EEV R-32 - CAPEA4830D3

The Goodman CAPEA4830D3 offers the same 4-ton capacity as the C3 model in a wider 24.5" cabinet, built for larger furnace and air handler platforms. It carries the full CAPEA feature set for dependable performance in higher-capacity R-32 systems.

Key features that matter in the field

• Factory-installed EEV for precise refrigerant metering at higher capacity
• All-aluminum coil optimized for R-32 refrigerant circuits and manifolds
• Compatible with Daikin One+ communicating equipment
• Corrosion-resistant, leather-grain-embossed galvanized cabinet with foil-faced insulation
• Low-retention, DecaBDE-free thermoplastic drain pan with secondary drain connection
• Single front access panel; 21" depth for simplified service
• Fault recall of the six most recent faults

Regional readiness and important compatibility notes

• R-32 only — incompatible with R-410A equipment
• Requires a matched R-32 outdoor unit and Goodman Furnace Integration Kit (Model 0230K00044)
• Suited to homes in the ~2,000–2,400 sq ft range

Specs at a glance

• Tonnage: 4 Ton

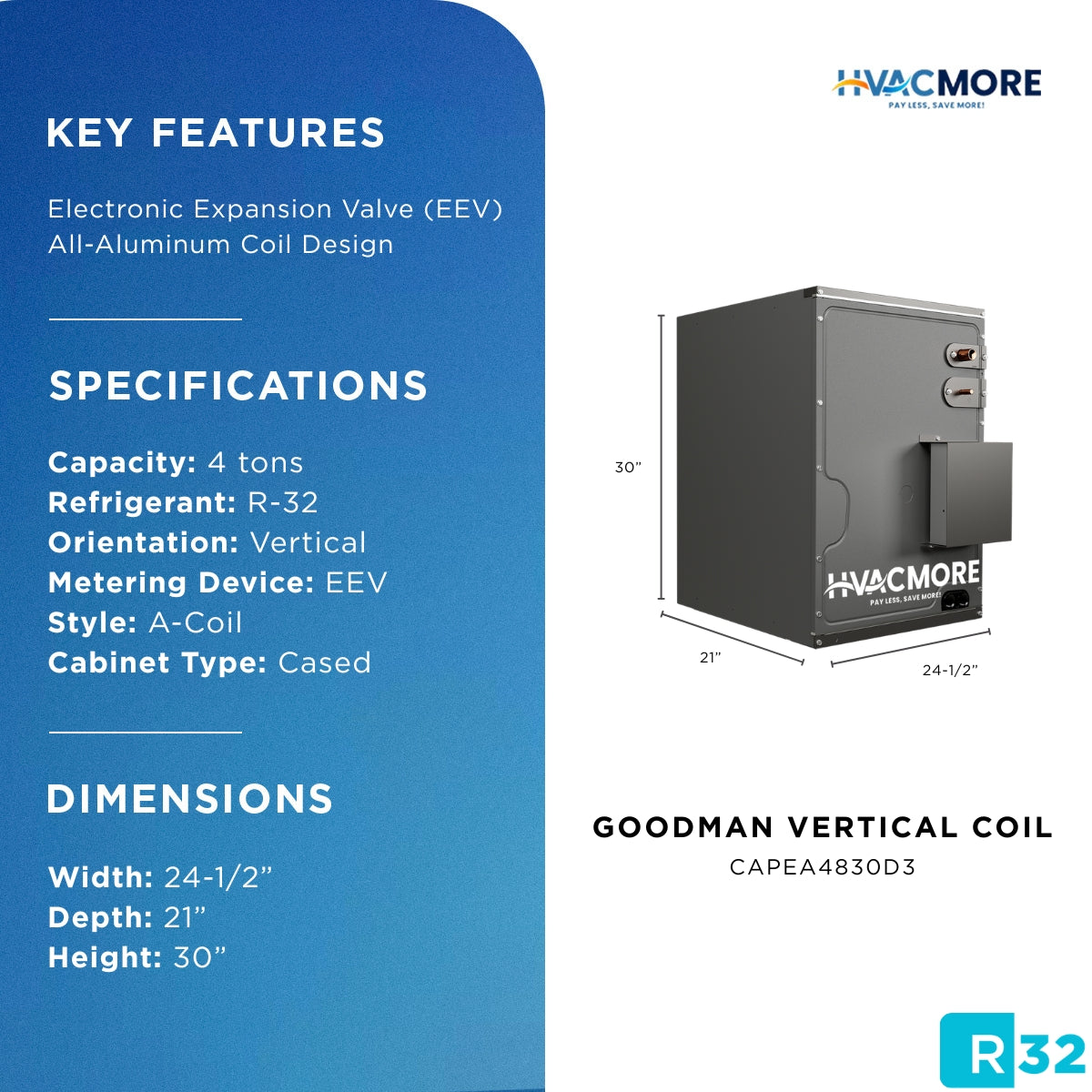

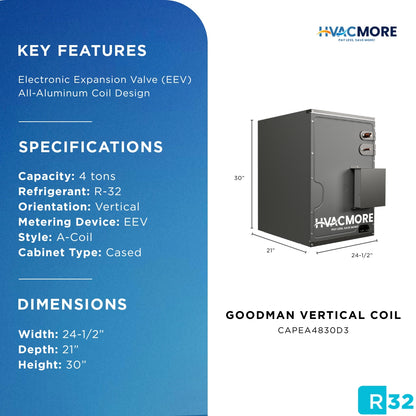

• Cabinet Dimensions (W x D x H): 24.5" x 21" x 30"
• Refrigerant: R-32
• Metering Device: Internal EEV
• Line Connections: 3/8" liquid, 7/8" or 1⅛" suction
• Ship Weight: 70 lbs
• Warranty: 10-year limited parts warranty with registration within 60 days
• AHRI Certified, ETL Listed

Why this matters for you When a 4-ton system needs to pair with the widest available furnace cabinet, the CAPEA4830D3 delivers the capacity without forcing a cabinet compromise — the same reliable EEV metering and all-aluminum build, just sized to fit.
