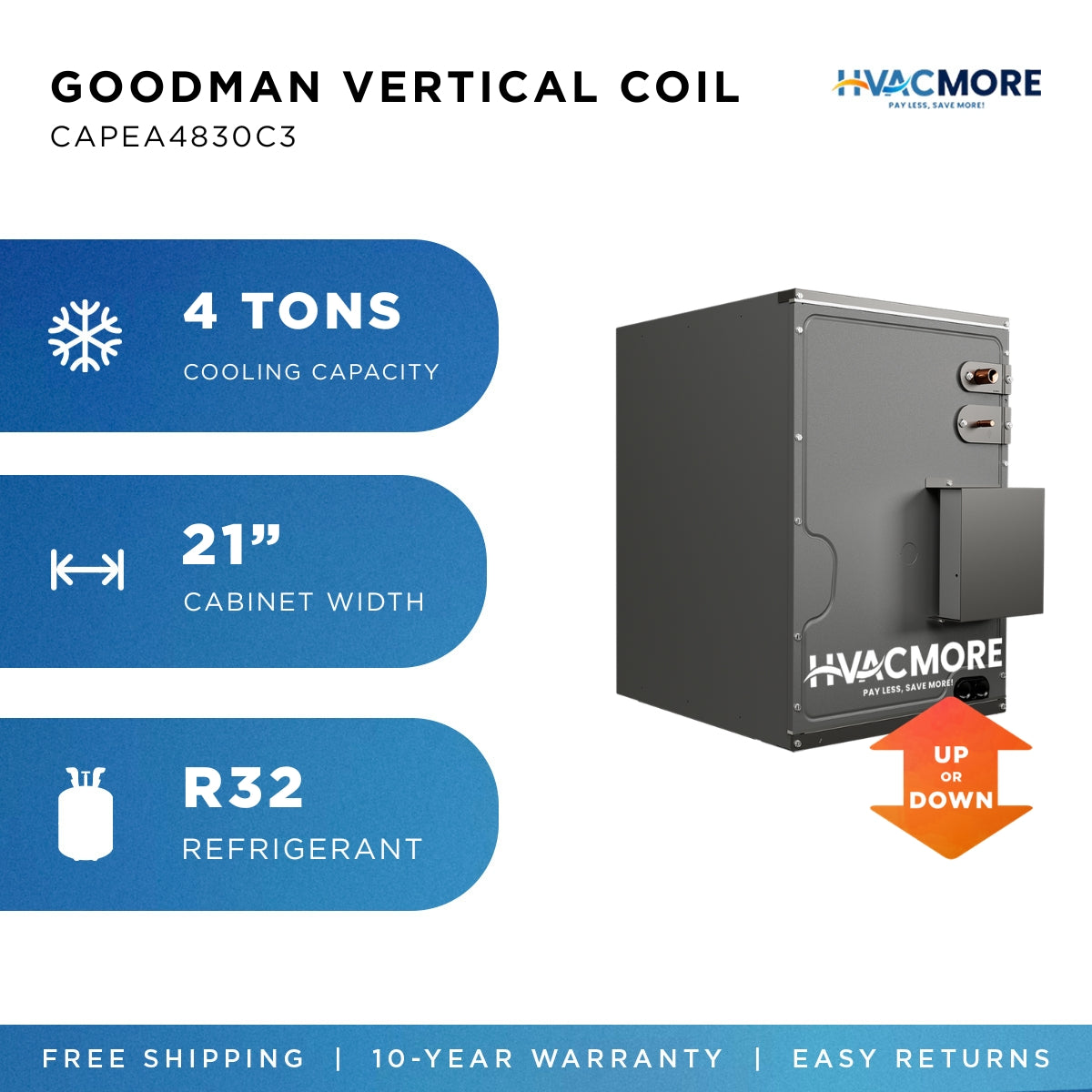

Goodman 4 Ton 21" Cased Upflow/Downflow Evaporator Coil EEV R-32 - CAPEA4830C3

Stepping up to larger homes, the Goodman CAPEA4830C3 delivers 4 tons of cooling capacity in a 21" cabinet. Larger line connections support the increased refrigerant flow this capacity requires, while the internal EEV keeps metering precise across a wider range of load conditions.

Key features that matter in the field

• Factory-installed EEV sized for higher-capacity refrigerant flow in cooling and heat pump modes
• All-aluminum coil construction optimized for R-32 circuits and manifolds
• Daikin One+ compatible for communicating thermostat integration
• Foil-faced insulation and galvanized, embossed cabinet resist condensation and corrosion
• Rust-resistant, DecaBDE-free thermoplastic drain pan with secondary drain connection
• Single front access panel; 21" depth for easier attic and closet access
• Fault recall of the six most recent faults

Regional readiness and important compatibility notes

• R-32 only — not for use with R-410A systems
• Requires a matched R-32 outdoor condenser/heat pump and Goodman Furnace Integration Kit (Model 0230K00044)
• Generally suited to homes in the ~2,000–2,400 sq ft range

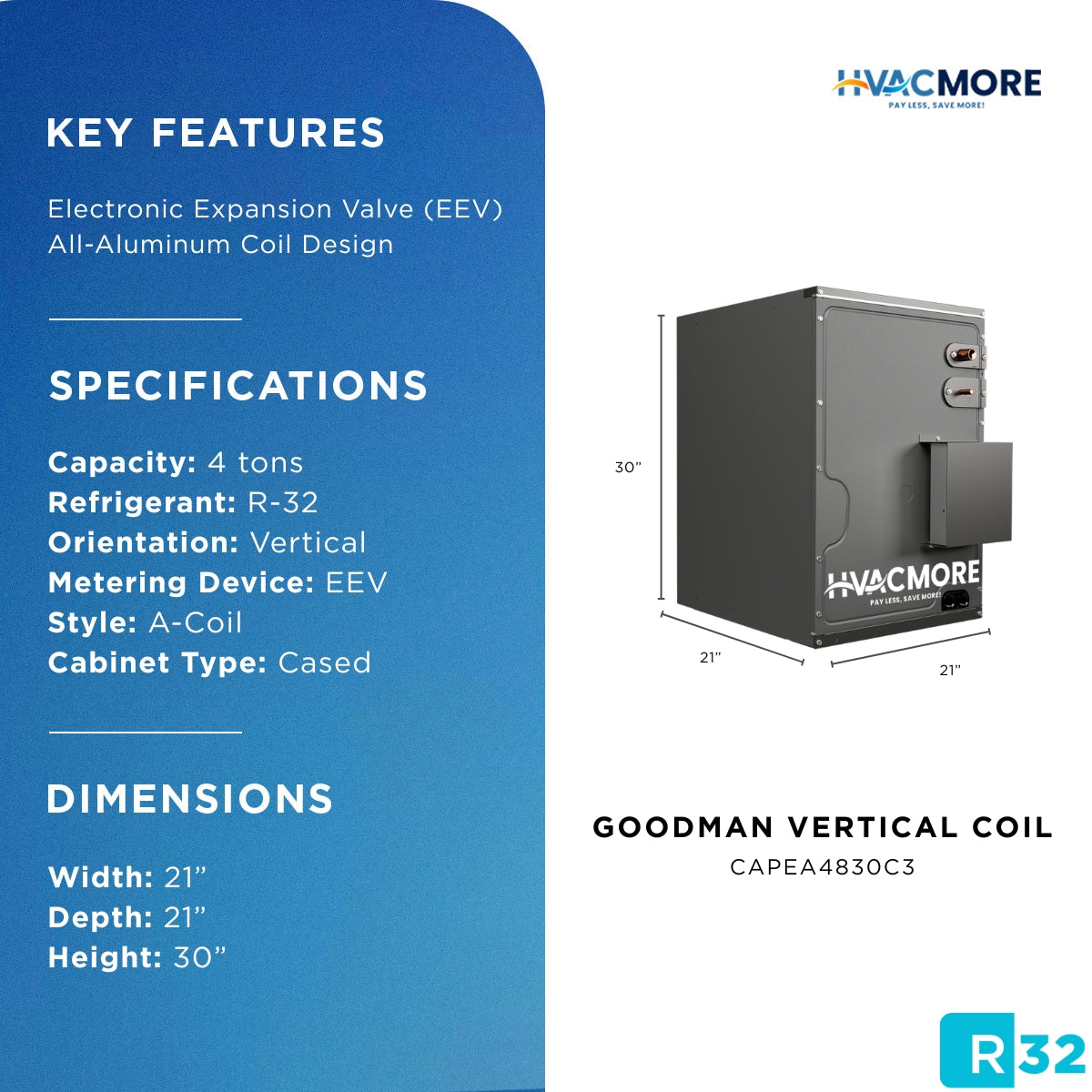

Specs at a glance

• Tonnage: 4 Ton
• Cabinet Dimensions (W x D x H): 21" x 21" x 30"
• Refrigerant: R-32
• Metering Device: Internal EEV
• Line Connections: 3/8" liquid, 7/8" or 1⅛" suction
• Ship Weight: 68 lbs
• Warranty: 10-year limited parts warranty with registration within 60 days
• AHRI Certified, ETL Listed

Why this matters for you Larger homes need coils built to move more refrigerant without losing control precision, and the CAPEA4830C3 is sized to do exactly that. If your load calc lands at 4 tons and your equipment platform is 21" wide, this coil is built to match.
