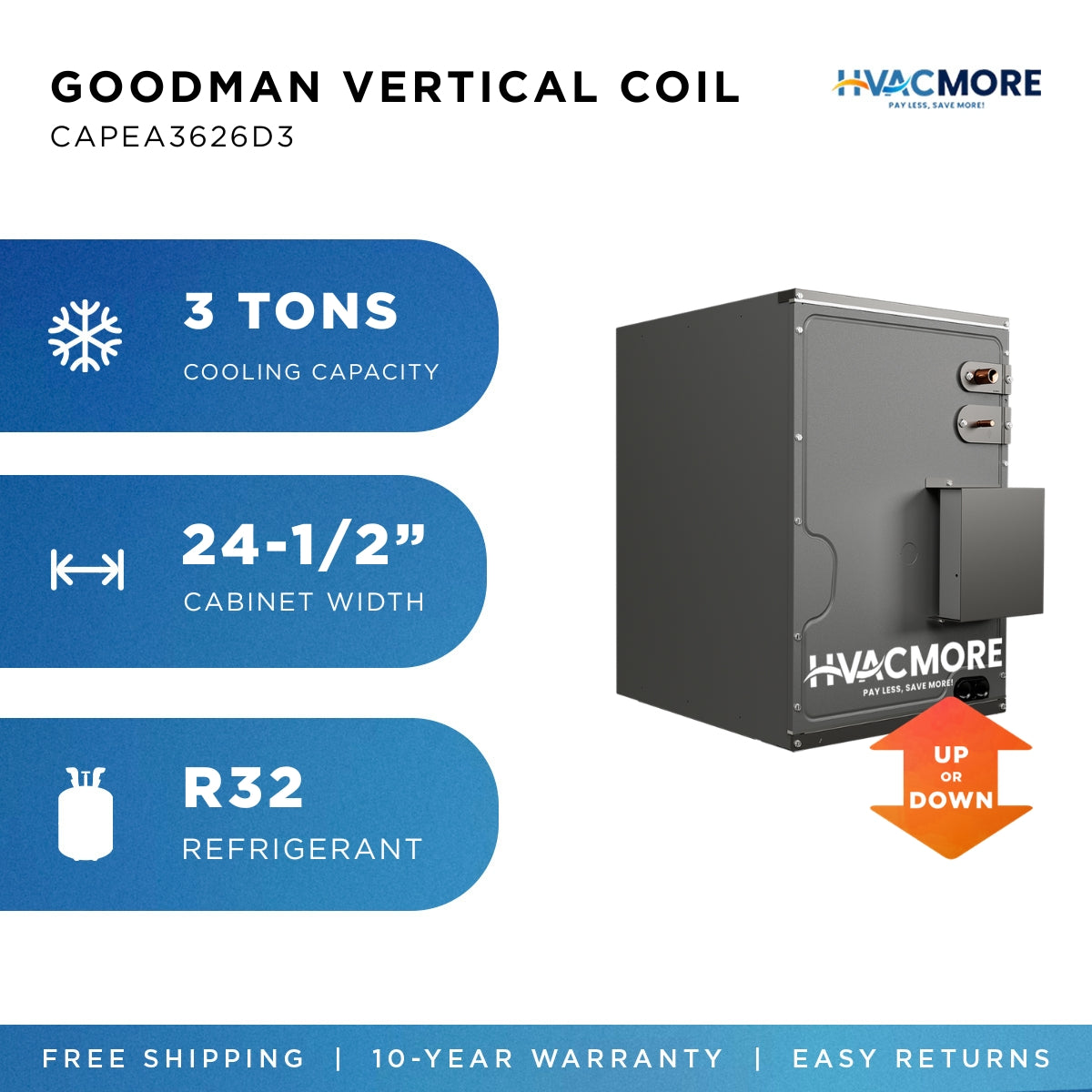

Goodman 3 Ton 24.5" Cased Upflow/Downflow Evaporator Coil EEV R-32 - CAPEA3626D3

For 3-ton jobs on the widest furnace platforms, the Goodman CAPEA3626D3 rounds out the CAPEA36 family with a 24.5" cabinet. It's built for larger equipment footprints without changing anything about the coil's core reliability — same EEV, same all-aluminum construction, same corrosion-resistant cabinet.

Key features that matter in the field

• Factory-installed EEV delivers precise metering in cooling and heat pump operation
• All-aluminum coil built for R-32 systems with optimized circuits and manifolds
• Daikin One+ compatible for communicating diagnostics
• Galvanized, leather-grain-embossed cabinet with foil-faced insulation
• DecaBDE-free, rust-resistant thermoplastic drain pan with secondary drain connection
• Single front access panel; 21" depth for simplified installation
• Fault recall of the six most recent faults

Regional readiness and important compatibility notes

• R-32 only — not compatible with R-410A systems
• Requires a matched R-32 outdoor unit and Goodman Furnace Integration Kit (Model 0230K00044)
• Best suited to homes in the ~1,500–1,800 sq ft range

Specs at a glance

• Tonnage: 3 Ton

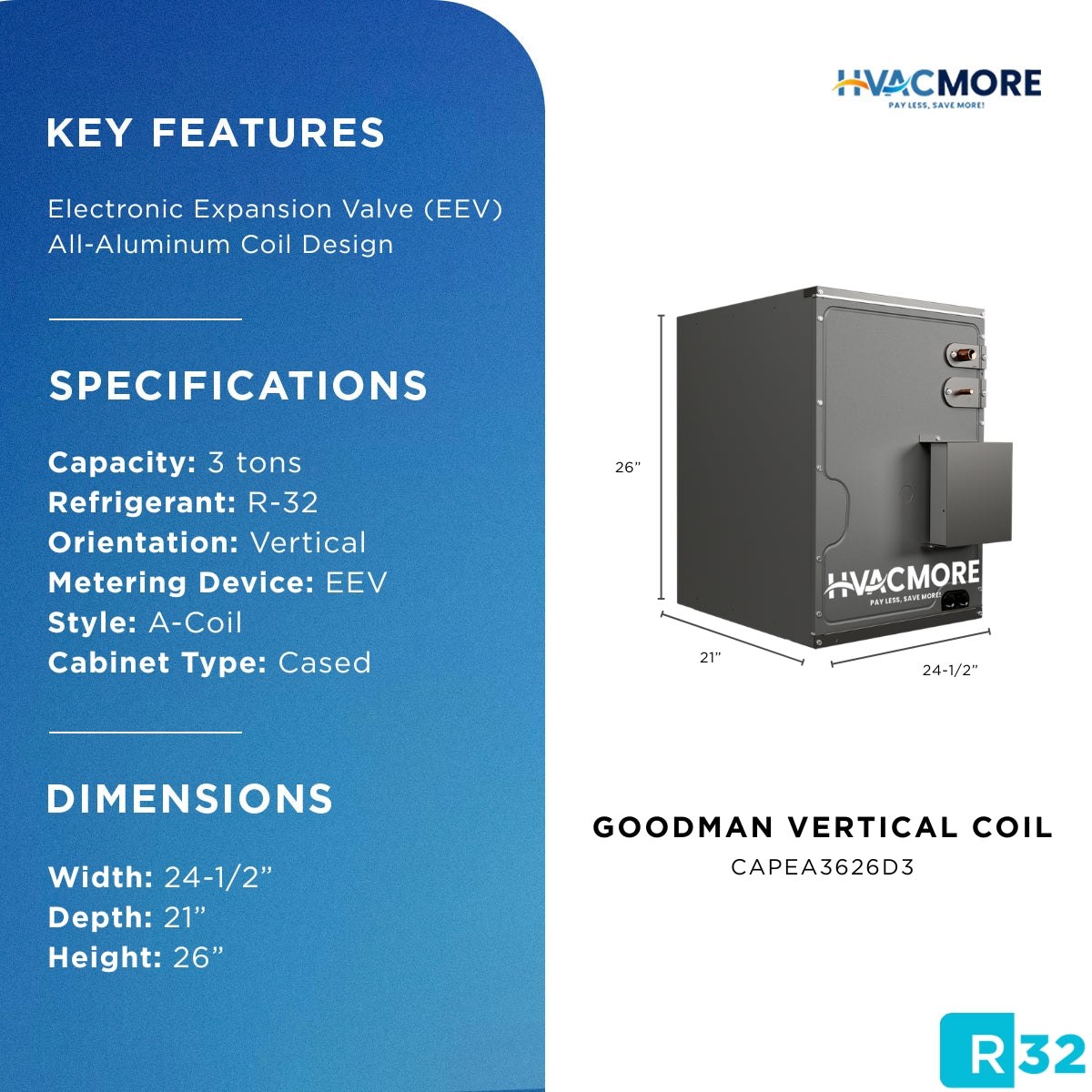

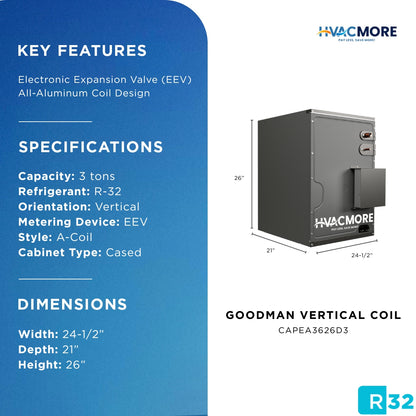

• Cabinet Dimensions (W x D x H): 24.5" x 21" x 26"
• Refrigerant: R-32
• Metering Device: Internal EEV
• Line Connections: 5/16" or 3/8" liquid, 3/4" or 7/8" suction
• Ship Weight: 62 lbs
• Warranty: 10-year limited parts warranty with registration within 60 days
• AHRI Certified, ETL Listed

Why this matters for you Some furnace platforms simply need the widest cabinet available, and the CAPEA3626D3 is built for exactly that — full 3-ton performance without asking you to force-fit a narrower coil onto a wide-frame system.
