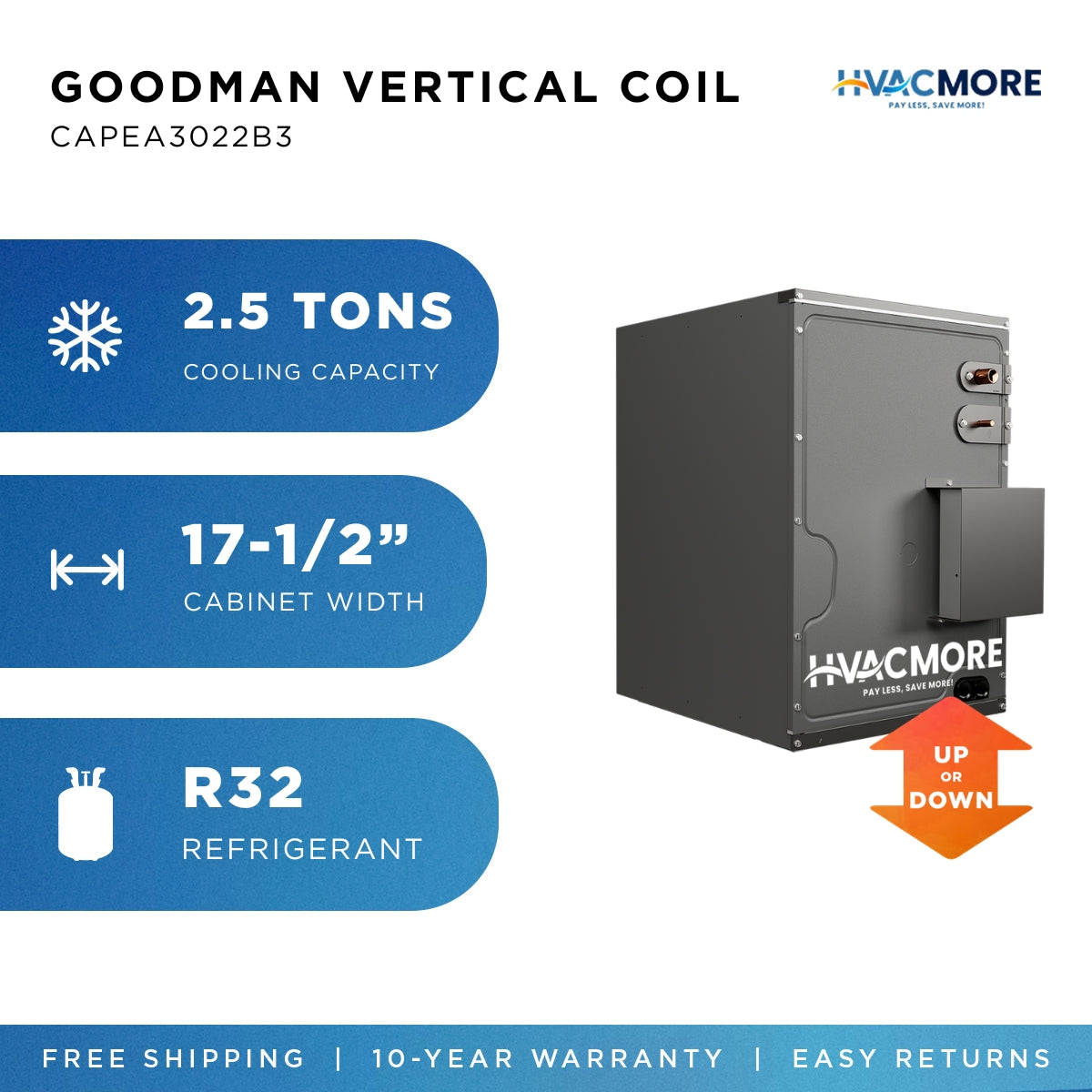

Goodman 2.5 Ton 17.5" Cased Upflow/Downflow Evaporator Coil EEV R-32 - CAPEA3022B3

The Goodman CAPEA3022B3 steps up to 2.5 tons of cooling capacity while keeping the cabinet narrow at 17.5" — a solid match for moderately sized homes where mechanical space is still at a premium. It's built with the same EEV precision and all-aluminum durability found throughout the CAPEA line, so you get more capacity without more compromise.

Key features that matter in the field

• Factory-installed EEV for precise metering in cooling and heat pump systems
• All-aluminum coil optimized for R-32 refrigerant circuits and manifolds
• Compatible with Daikin One+ communicating thermostats
• Corrosion-resistant, leather-grain-embossed galvanized cabinet with foil-faced insulation
• Low-retention, DecaBDE-free thermoplastic drain pan with secondary drain
• Single front access panel; 21" depth for easier attic servicing
• Fault recall of the six most recent faults

Regional readiness and important compatibility notes

• R-32 only — incompatible with R-410A systems
• Requires a matched R-32 condenser or heat pump plus the Goodman Furnace Integration Kit (Model 0230K00044)
• Generally suited to homes in the ~1,200–1,500 sq ft range

Specs at a glance

• Tonnage: 2.5 Ton
• Cabinet Dimensions (W x D x H): 17.5" x 21" x 22"
• Refrigerant: R-32
• Metering Device: Internal EEV
• Line Connections: 5/16" or 3/8" liquid, 3/4" or 7/8" suction
• Ship Weight: 48 lbs
• Warranty: 10-year limited parts warranty with registration within 60 days
• AHRI Certified, ETL Listed

Why this matters for you For homes that have outgrown a 2-ton system but don't need a full 3-ton coil, the CAPEA3022B3 hits the middle ground — extra capacity in a cabinet that still fits narrow mechanical spaces. Its EEV and all-aluminum build mean you're not sacrificing longevity or precision to get there.
